  • GPON ONU Dual WIFI For 2.4G & 5G

    Now 5g construction has set off a wave of enthusiasm, 5G networks have significant improvements in throughput, latency and number of conn ections, compared with 4G networks. 5G is the next phase of mobile technology and is widely believed faster, smarter and more efficient than 4G.

    5G-PON is one of 5G network’s core technologies. It consists of mainly two active transmission equipments, namely- Optical Line Termination (OLT) and Optical Network Unit (ONU) or Optical Network Termination (ONT).

    ONU is one of the GPON optical network unit design to meet the requirement of the broadband access network and apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.Introducing a new ONU to a PON network can take some times to get right When you want to upgrade your network And there are some internal testing or performance issues whenever a new ONU comes along.

    Sopto's GPON ONU sopports 2.4GHz/5GHz dual-band wireless signal. It can perfectly compatible with other 5G products, which means you don't need to change your existing ONU equipment. The highligh is that it can meet the existing 4G network construction while preparing for the future of 5G construction, which can save you costs and time.

    All sopto's ONU has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent.­




    dual wifi for 5g


    ItemProduct ModelDescriptionsDetails
    1SPU-G420WD-HZ

    ONU GPON 4 UTP Ports 10/100/1000M with 2.4GHz and 5GHz WIFI with External

    220V AC to 12V DC power supply adapter Commercial temperature Plastic housing ZTE chipset

    SPU-G420WD-HZ.pdf

    2SPU-G422WD-HZ

    4*10/100/1000M Ethernet interface, 1 GPON   interface, 2 POTS interface,

    1 USB interface, support Double Frequency Wi-Fi function,  Plastic casing, external power supply adapter

    SPU-G422WD-HZ.pdf


    SPU-G420WD-HZ can integration wireless function with meet 802.11 a/b/g/n/ac technical standards. At the same time. It has the characteristics of strong penetrating power and wide coverage.

    SPU-G422WD-HZ provide two POTS ports, four GE auto-adapting Ethernet ports, one USB ports, and 802.11a/b/g/n/ac Wi-Fi access.

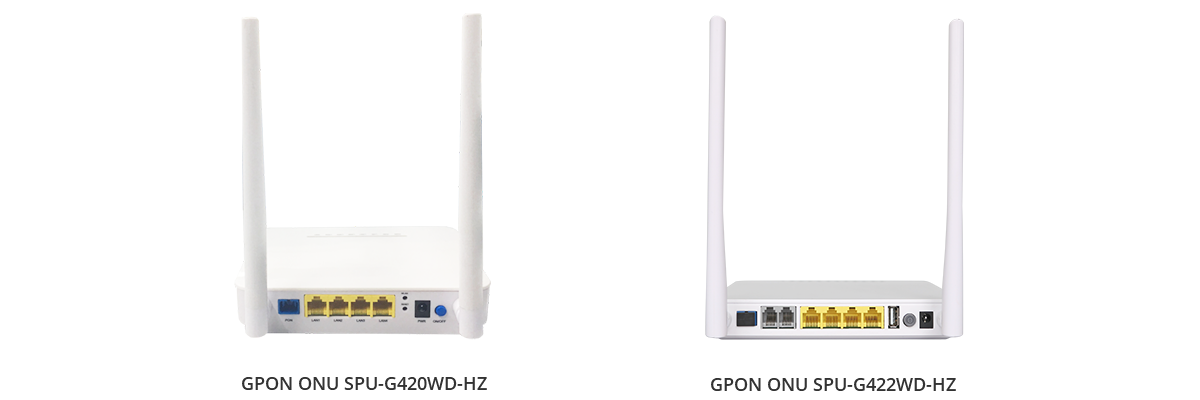

    gpon ONU.pnggpon ONU (2).png

    SPU-G420WD-HZ


    SPU-G422WD-HZ



    ● Support MIMO-OFDM encoding mode

    ● Support wider RF bandwidth, up to 160MHz

    ● Support higher 256-QAM modulation mode

    ● Support wireless security of 64/128 bit WEP、802.1x、WPA and WPA2

    ● Comply with IEEE 802.11a/b/g/n/ac protocol standard, support 2.4GHz and 5GHz



    ● Typical Solution:FTTH, FTTO

    ● Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI



    If you have questions or want a customized service, please send an email to us.
