    QSFP+ is a new Multi-Source Agreement (MSA) for high speed application, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps. The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4/CSR4/IR4/ER4 applications. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● Four-channel full-duplex

    ● Hot Pluggable QSFP+ form factor

    ● Built-in digital diagnostic functions

    ● Single 1x12 MPO/MTP receptacle or Duplex LC

    ● Operating Case Temperature: Standard: 0~70°C

    ● Transmission distance up to 400m on MMF OM4 and 40km over SMF

    ● MMF Optical connectivity via industry standard MPO/MTP terminated fiber ribbon


    PNDescriptionDetails
    Single Mode
    SPT-QSFP+IR4

    2km QSFP+, Hot Pluggable, Duplex LC Connector, DDM

    QSFP+IR4.pdf

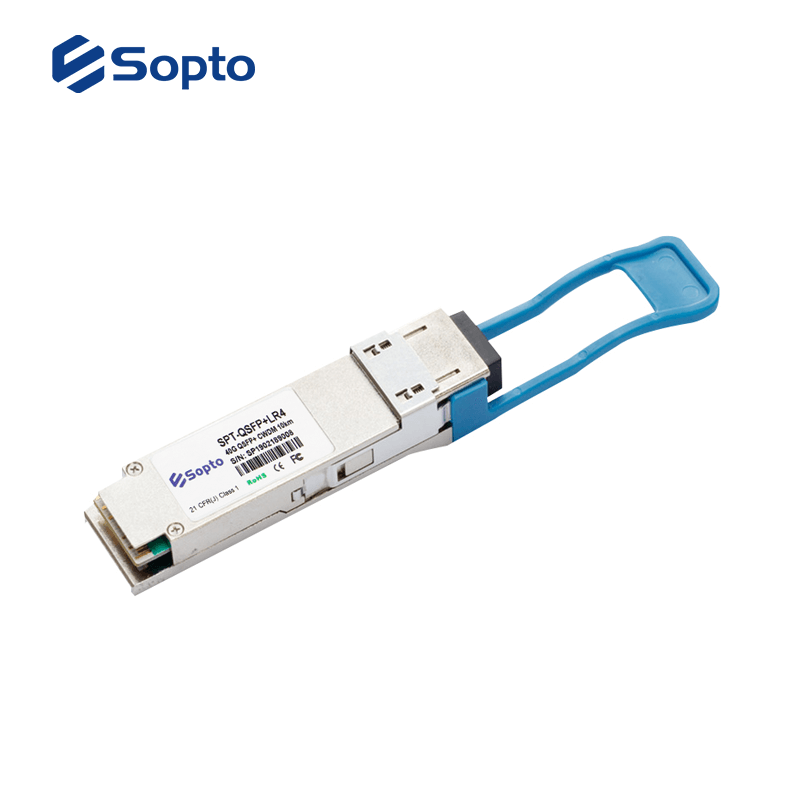

    SPT-QSFP+LR410km/20km QSFP+, 0 to 70℃, Duplex LC Connector, DDM

    QSFP+LR4.pdf

    SPT-QSFP+MLR410km QSFP+, 1310nm, MPO12(APC), MPO/MTP

    QSFP+MLR4.pdf

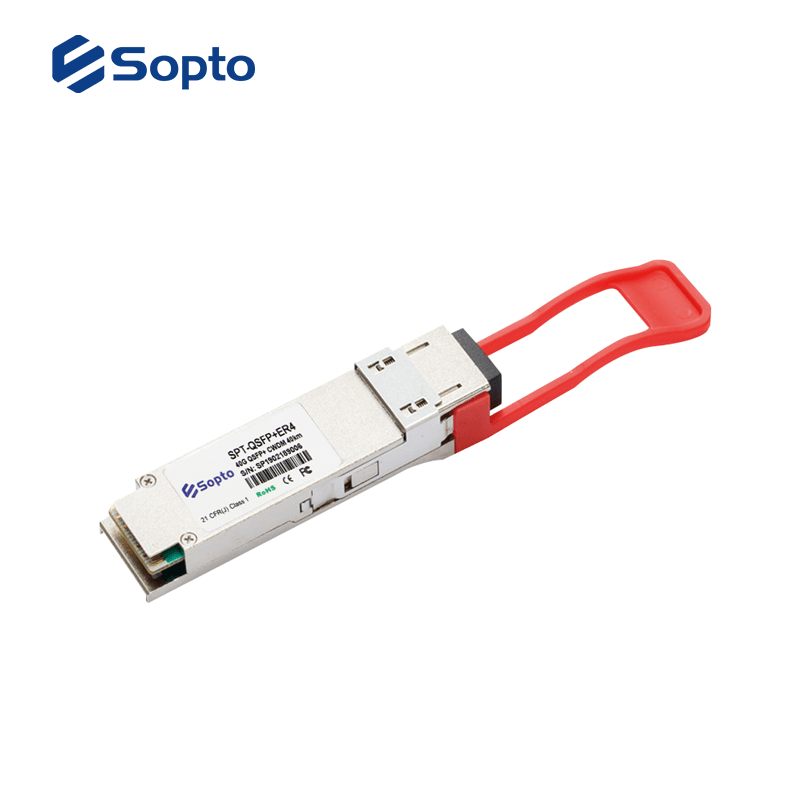

    SPT-QSFP+ER4 40km QSFP+  Optical Transceiver , 0 to 70℃,DDM

    QSFP+ER4 .pdf

    Multi-mode

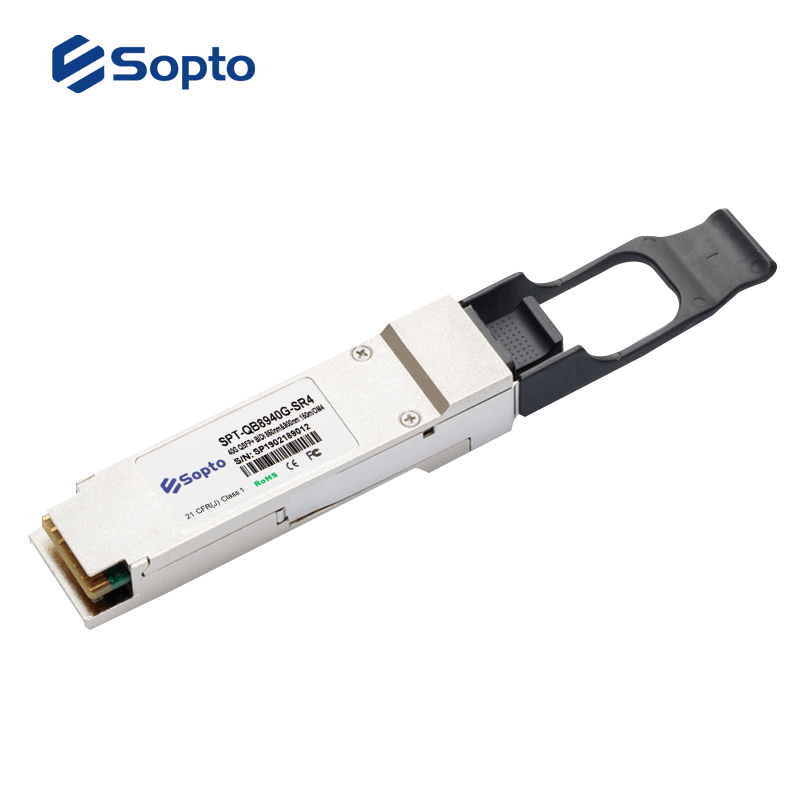

    SPT-QB8940G-SR4100m QSFP+, Bi-Di, Duplex LC, Hot Pluggable, 850/900nm, VCSEL

    QB8940G-SR4.pdf

    SPT-QSFP+MSR4Transceiver QSFP+ 850nm, MPO/MTP 100m/OM3 150m/OM4

    QSFP+MSR4.pdf

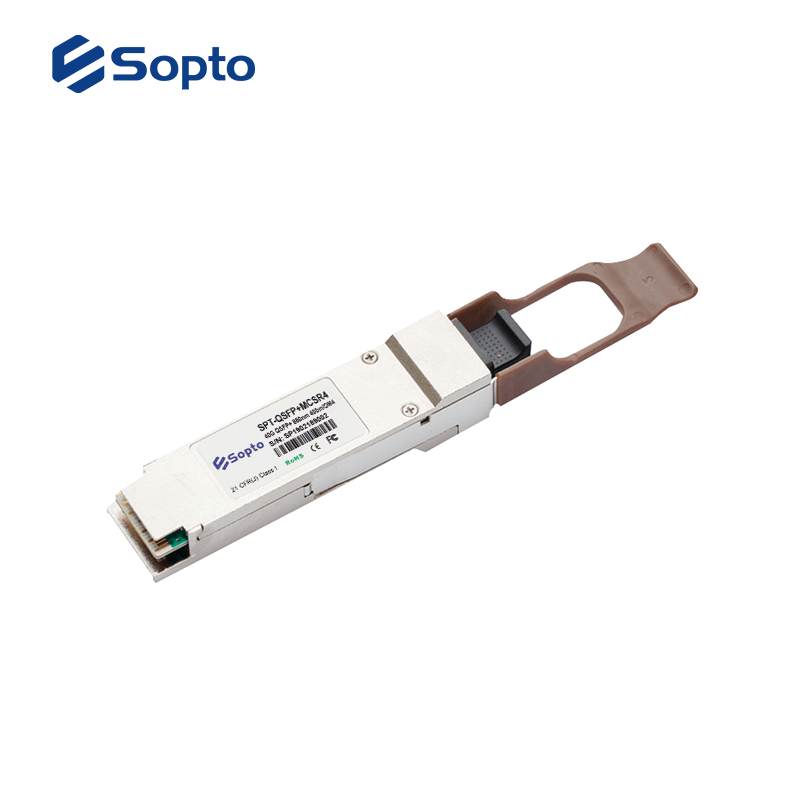

    SPT-QSFP+MCSR4

    300m/OM3 400m/OM4 QSFP+ Transceiver

    Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL

    QSFP+MCSR4 .pdf


    Compliant

    ● RoHS-6

    ● SFF-8436

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system,the requirements of European CE, RoHs

    transceiver certificate.png

    ---------------------------------------------------------------------------------------------------------------------------------


    ● 40GBASE-SR4/CSR4/IR4/LR4/ER4 40G Ethernet

    ● Breakout to 4 x 10GBASE-SR Ethernet

    ● High-speed interconnects within and between switches, routers and transport equipment

    ● Server-Server Clusters, Super-computing interconnections

    ● Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

    ● InfiniBand SDR, DDR and QDR applications

    ● Proprietary interconnections

    ● Other optical links


    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules

    ●  40G base-SR4 QSFP Transceiver Module with MPO Connector




    PN

    Data Rate

    (Gbps)

    Distance

    Fiber

    OutputPower

    (dBm)

    Sensitivity (dBm)

    Interface

    Temp.

    DDM

    SPT-QB8940G-SR4

    40

    100m/OM3
    150m/OM4

    MM

    -4~5

    -11

    Duplex LC

    0-70℃

    D

    SPT-QSFP+MSR4

    40

    100m/OM3

    150m/OM4

    MM

    -8~0

    -13

    MPO/MTP

    0-70℃

    D

    SPT-QSFP+MCSR4

    40

    300m/OM3
    400m/OM4

    MM

    -8~1

    -13

    MPO/MTP

    0-70℃

    D

    SPT-QSFP+IR4

    40

    2km

    SM

    -2~3.5

    -11.5

    Duplex LC

    0-70℃

    D

    SPT-QSFP+LR4

    40

    10km

    SM

    -7~2.3

    -11.5

    Duplex LC

    0-70℃

    D

    SPT-QSFP+LR4

    40

    20km

    SM

    -3~4.5

    -11.5

    Duplex LC

    0-70℃

    D

    SPT-QSFP+MLR4

    40

    10km

    SM

    -6.5~-1

    -10.3

    MPO/MTP

    0-70℃

    D

    SPT-QSFP+ER4

    40

    40km

    SM

    -7~8

    -22

    Duplex LC

    0-70℃

    D
