    Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.
  • Contact Us
  • ● Simplex / Duplex

    ● Good compatibility

    ● High reliability & stability

    ● Ceramic or Bronze Sleeve

    ● Low insertion loss, high return loss

    ● High precision of mechanical dimensions




     Parameter

     Unit

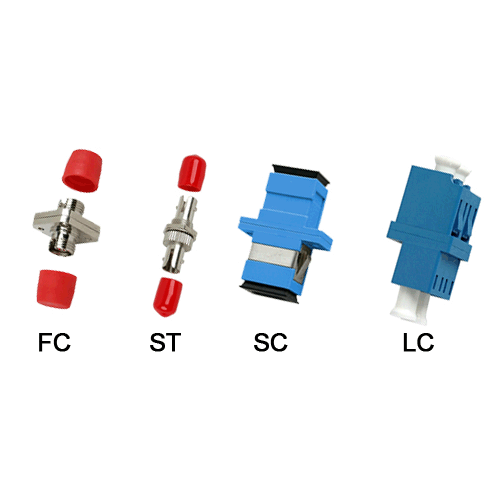

     LC, SC, FC, MU, ST, SC-ST, FC-ST,   FC-SC, FC-LC, FC-MU

     SM

     MM

     PC

     UPC

     APC

     PC

     Insertion Loss (Typical)

     dB

     ≤0.3

     ≤0.2

     ≤0.3

     ≤0.2

     Return Loss

     dB

     ≥45

     ≥50

     ≥60

     ≥30

     Exchangeability

     dB

     ≤0.2

     Repeatability

     dB

     ≤0.2

     Durability

     Time

     >1000

     Operating Temperature

     ℃

     -40~75

     Storage Temperature

     ℃

     -45~85




    Download

    ● Local Area Network

    ● CATV System

    ● Telecommunication Networks

    ● Equipment Test


    Related Articles

    ●  SC Fast Connector Assembly Instruction

    ●  The fiber optic connector common classification and characteristics


    Ordering Info. for Adaptor

    Part NumberSPAD - SC  F - SC   F - A  -S  S- P E S

                                        1   2     3     4   5    6  7  8 9 10

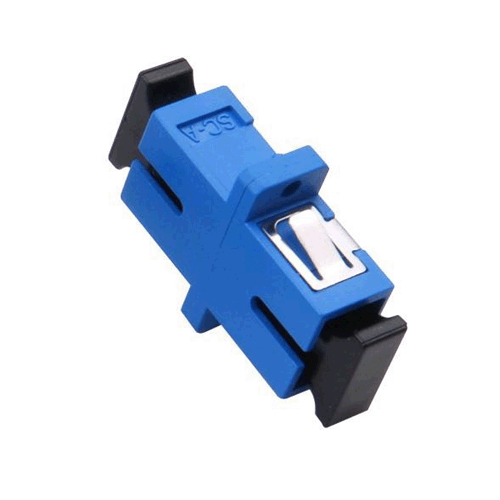

      Product DescriptionAdaptor   Simplex SC Female/SC Female APC SM      Plastic shell with Ears with Spring strip

    1 - Connector A

    LC SC FC ST etc

    2 - Connector A   Type

    F:Female ;       M:Male

    3 – Connector B

    LC SC FC ST etc

    4 – Connector B Type

    F:Female ;     M:Male

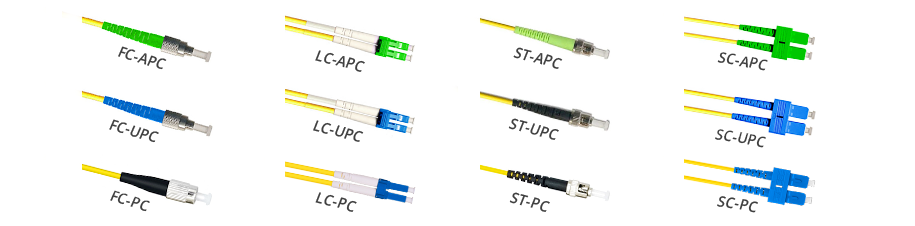

    5 - Endface

    UUPC   polish;  PPC polish;  AAPC polish

    6 - Communication Type

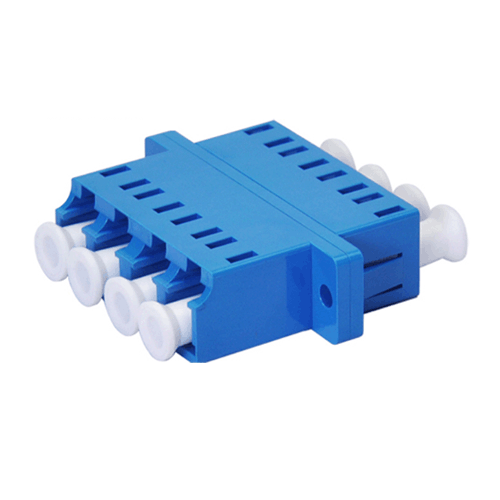

    S:Simplex;    D:Duplex;   Q:Quadruple ;   Null:   Multicores

    7 - Adapted Fiber Type

    S:SM; M:MM ; Null:not Specified

    8 -Shell Material

    P:Plastic;    PM:Half Plastic Half Metal;    M;Metal

    9 -Structure 1

    E:with Ears;       Null:without Ears

    10 - Structure 2

    S:with Spring   strip;       Null:without   Spring strip
