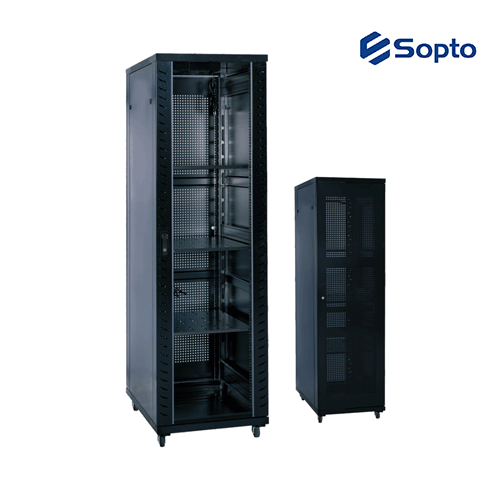

    The 19-inch network cabinet is applied to computer network integrated engineering, building wiring, telecommunications, radio and sound engineering, intelligent community, school, government and other economic and large and medium-sized wiring projects. The equipment can be used to place active and passive devices such as switches, routers, servers, 19-inch optical fiber terminal boxes, etc. Sopto provide 12U,14U,18U,22U,27U,32U 37U,42U 47U network cabinets with glass door or mesh front door.
  • Contact Us
  • ● Comply with ANSI/EIA; RS-310-D; IEC 297-2; DIN41491:PART1; DIN41494: Part7:GB/T3047.2-92; ETSI Standard

    ● Removable side door, easy and quick for install and uninstall.

    ● Security lock device to ensure the safety of the equipment

    ● Use of high-quality cold rolling plate, anti-static spraying­­­­

    ● 2 fans for 600mm depth cabinet and 4 fans for 800mm depth cabinet

    ● Various optional accessories: PDU, cooling fan, shelf, bracket and cable tray and so on.


    Common Cabinet Type - 42U Rack

    The 42U Rack’s door system includes a four-point locking system. The door can be easily rotated so it can be hinged from the left or right. The side panels can be screwed on, locked in place, or hinged to provide side door access.

     Specification
    Size(W*D*H)mm

     ● 600*600*2050

     ● 600*800*2050

     ● 800*800*2050

    Accessories

     ● Sidewalls, Split rear doors

     ● Baying Kits, toolless Shelves, casters, Bolt Down Kits, Cable Management

     ● Power Strips – vertical or Rackmount, Enclosure Monitoring System

     ● Toolless Blanking Panels, Fans

     Features

     ● Open bottom for cable access

     ● Compatible with airflow optimization and cable management accessories

     ● Compact design allows the enclosure to roll through standard height commercial doorways

     ● Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable

     ● Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first

     ● Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack

     ● Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.





    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN



    Model No.

    Description

    Size(W*D*H)mm

    SPNR-IF47A

    47U Network   rack,flat hexagonal mesh door

    600*800*2275

    SPNR-IF47B

    47U Network rack,flat hexagonal mesh door

    600*600*2275

    SPNR-IF47C

    47U Network rack,flat hexagonal mesh door

    800*800*2275

    SPNR-IF42A

    42U Network rackflat hexagonal mesh door

    600*600*2050

    SPNR-IF42B

    42U Network rackflat hexagonal mesh door

    600*800*2050

    SPNR-IF42C

    42U Network rackflat hexagonal mesh door

    800*800*2050

    SPNR-IF37A

    37U Network rackflat hexagonal mesh door

    600*600*1830

    SPNR-IF37B

    37U Network rackflat hexagonal mesh door

    600*800*1830

    SPNR-IF32A

    32U Network rackflat hexagonal mesh door

    600*600*1610

    SPNR-IF32B

    32U Network rackflat hexagonal mesh door

    600*800*1610

    SPNR-IF27A

    27U Network rackflat hexagonal mesh door

    600*600*1387

    SPNR-IF27B

    27U Network rackflat hexagonal mesh door

    600*800*1387

    SPNR-IF22A

    22U Network rackflat hexagonal mesh door

    600*600*1165

    SPNR-IF22B

    22U Network rackflat hexagonal mesh door

    600*800*1165

    SPNR-IF18A

    18U Network rackflat hexagonal mesh door

    600*600*987

    SPNR-IF47GA

    47U Network rack, Glass   door

    600*600*2275

    SPNR-IF47GB

    47U Network rack, Glass   door

    600*800*2275

    SPNR-IF47GC

    47U Network rack, Glass   door

    800*800*2275

    SPNR-IF42GA

    42U Network rack, Glass   door

    600*600*2050

    SPNR-IF42GB

    42U Network rack, Glass   door

    600*800*2050

    SPNR-IF42GC

    42U Network rack, Glass   door

    800*800*2050

    SPNR-IF37GA

    37U Network rack, Glass   door

    600*600*1830

    SPNR-IF37GB

    37U Network rack, Glass   door

    600*800*1830

    SPNR-IF32GA

    32U Network rack, Glass   door

    600*600*1610

    SPNR-IF32GB

    32U Network rack, Glass   door

    600*800*1610

    SPNR-IF27GA

    27U Network rack, Glass   door

    600*600*1387

    SPNR-IF27GB

    27U Network rack, Glass   door

    600*800*1387

    SPNR-IF22GA

    22U Network rack, Glass   door

    600*600*1165

    SPNR-IF22GB

    22U Network rack, Glass   door

    600*800*1165

    SPNR-IF18GA

    18U Network rack, Glass   door

    600*600*987
