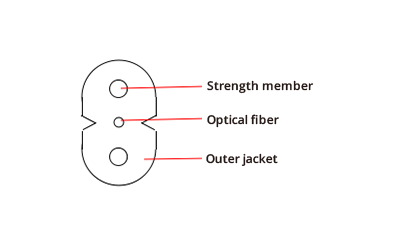

    FTTH Drop Cable is commonly known as indoor hanging wiring cable. It is mostly single-core and double-core structure. It can also be made into a 4 or 8 cores structure with a cross-section of 8-shaped. The reinforcement is located at the center of the two circles. It can be made of metal or non-metal structure. The fiber is located in the geometric center of the 8-shaped shape. The fiber in the cable is made of G.657 small bending radius fiber, which can be laid at a bending radius of 20mm.
  • Contact Us
  • ● Lighter and small diameter,flame retardant, separated easily and excellent softness

    ● Two parallel FRP or metal reinforcements provide good compression resistance and protect the fiber;

    ● The cable has the advantages of simple structure, light weight and strong practicability;

    ● Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;

    ● Low-smoke, halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath for environmental protection;


    Hot Model


                                   GJXFH



                                      GJXH




                              GJYFXTCBY


                                     GJYXCH





                              GJYXDCH





                                    GJYXFCH

    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC


    ● For indoor wiring, the end user directly uses the cable;

    ● Short distance outdoor wiring


    Related Articles

    ●  What is the armored fiber optic cable

    ●  Optical Fiber and Optical Fiber Classification

    ●  What is Principle of Optical Fiber Communication

     Cable Type

     Product Description

     Application

     GJXFH

     Indoor Cabling Bow-Type Drop Cable, Non-metal strength member GFRP;

    LSZH jacket; Non-Self-Supporting

     Indoor

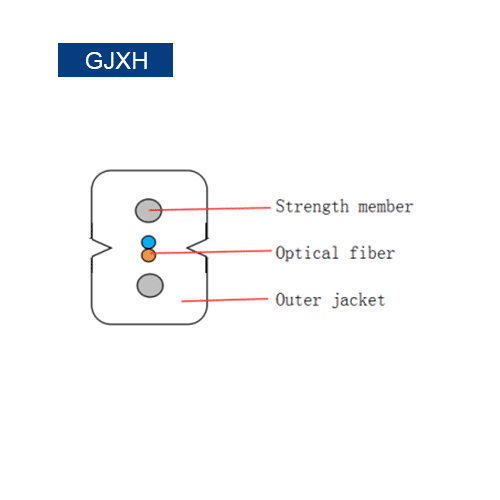

     GJXH

     Indoor Cabling Bow-Type Drop Cable, Metal strength member;

    LSZH jacket; Non-Self-Supporting

     Indoor

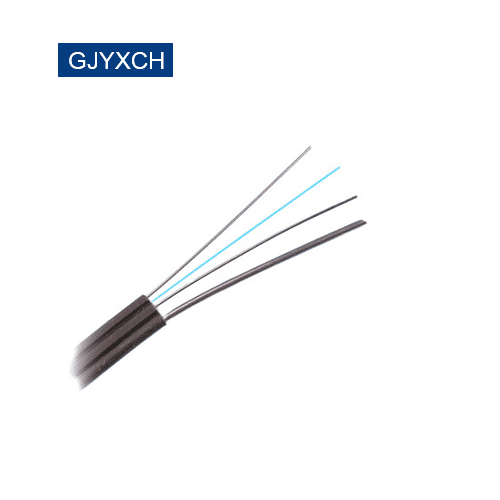

     GJYXCH

     Outdoor Cabling Bow-Type Drop Cable, Metal strength member;

    LSZH jacket; Self-Supporting

     Short-distance Aerial

     GJYXFCH

     Outdoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP;

    LSZH jacket; Self-Supporting

     Short-distance Aerial

     Double core independent

    GJYXCH

     Outdoor Cabling Bow-Type Drop Cable , Metal strength member;

    LSZH jacket; Self-Supporting ;Double core independent

     Short-distance Aerial

    GJYXH03

     Duct Bow-Type Drop Cable, Metal strength member;

     LSZH inter jacket; Water blocking tape; PE outer jacket

     Duct

     TBF09

     Φ0. 9 Invisible Tight Buffer Fiber

     Indoor

     Indoor Cabling Invisible

    GJXJH

     Indoor Cabling Invisible Bow-Type Drop Cable, Metal strength member;

    LSZH jacket; Non-Self-Supporting

     Indoor

     GJYFJCH

     Rotundity Drop Cable, Tight buffer fiber structure; Aramid yarn strength member;

     LSZH jacket; Self-supporting

     Short-distance Aerial

     GJXFV

     Indoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP;

    PVC jacket; Non-Self-Supporting

     Indoor

     GJYXFH03

     Duct Bow-Type Drop Cable, Non-metal strength member;

    LSZH inter jacket; Water blocking tape; PE outer jacket

     Duct

     GJYXFDH03

     Duct Bow-Type Drop Cable, Optical fiber ribbon, Non-metal strength member;

     LSZH inter jacket; Water blocking tape; PE outer jacket

     Duct

     GJYXFDCH

     Outdoor Cabling Bow-Type Drop Cable, Optical fiber ribbon,

    Non-metal strength member KFRP; LSZH jacket; Self-Supporting

     Short-distance Aerial

     GJYFXTCBY

     Self-Supporting optical cable; Non-metal strength member GFRP;

    Water blocking yarn; PE jacket; Oblateness figure

     Indoor

     GJYXDCH

     Outdoor Cabling Bow-Type Drop Cable , Optical fiber ribbon,

    Metal strength member ;LSZH jacket; Self-Supporting

     Short-distance Aerial
