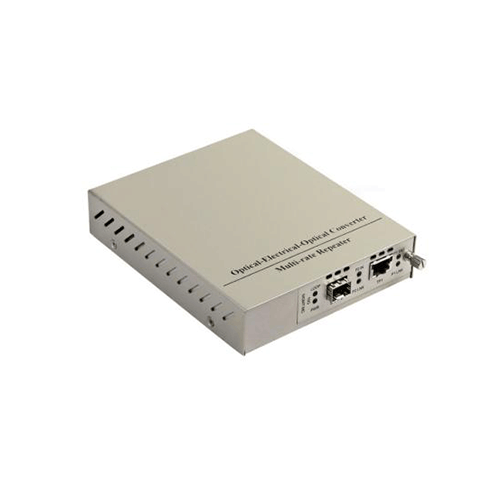

    The SPM-ITGX Series is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ supports a wide variety of 10GE SFP+ or XFP fiber
  • Contact Us
  • ● Support Jumbo Frame

    ● Transparent Transport and very low delay

    ● Support ITUT prescribed DWDM/CWDM wavelength

    ● Support Loopback test function

    ● Support hot plugging

    ● Full State Led display

    ● Easy installation

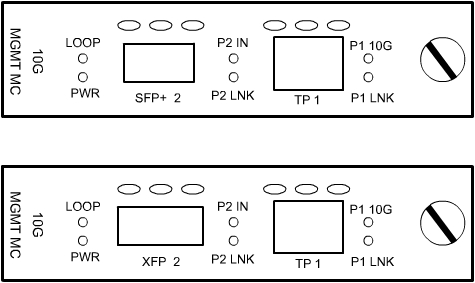

    10G Media Converter Panel

    10G Media Converter Panel

    Specific parameters

    Specification

    Transmission mode

    Technical Indexes

    Transmission Speed

    10Gb/s

    Protocols

    IEEE802.3an(10Gbase-T);  IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

    Access Type

    10G LAN

    Interface Type

    RJ45 To/From SFP+    Or       RJ45 To/From XFP

    Transmission Distance

    SFP+ module: Up to 80Km

    XFP module: Up to 80Km

    10Gbase-T: 100meters Cat .6a   cable

    Maximum Packet Forwarding Rate

    14,880,950/S

    Power Supply Specifications And Dimensions

    AC:100V~240V  50~60HZ                 DC:40V~50V      50~60HZ

    Power consumption≤6Wwithout module

    External AC-DC 20W communication module power

    156mm * 128mm  * 32mm


    ● LAN/WAN

    ● Access Control Systems

    ● 10Gbps Ethernet

    ● High Speed Computer Links

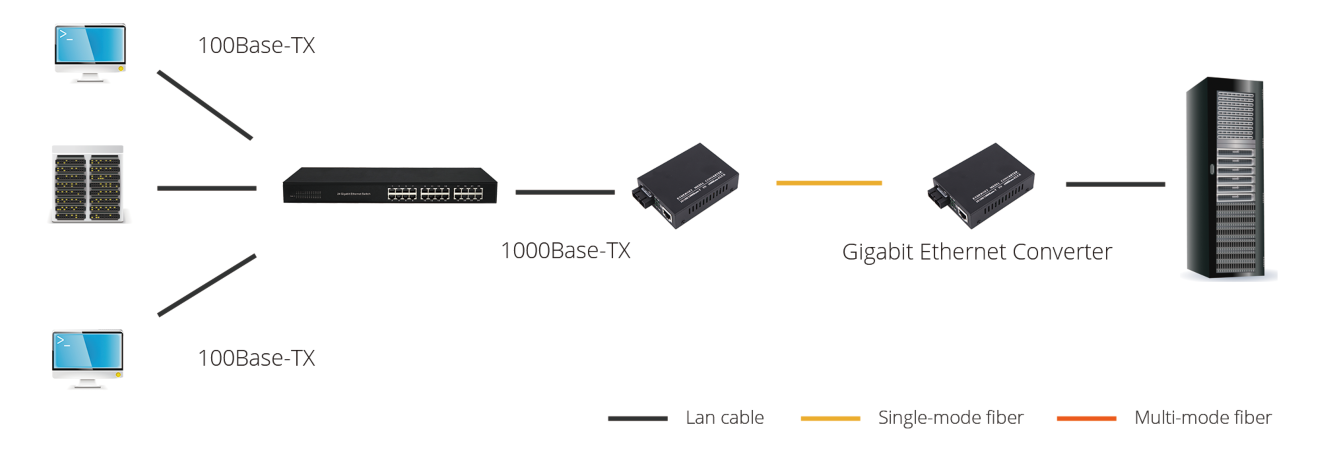

    Fast Ethernet application

    fast ethernet application.png

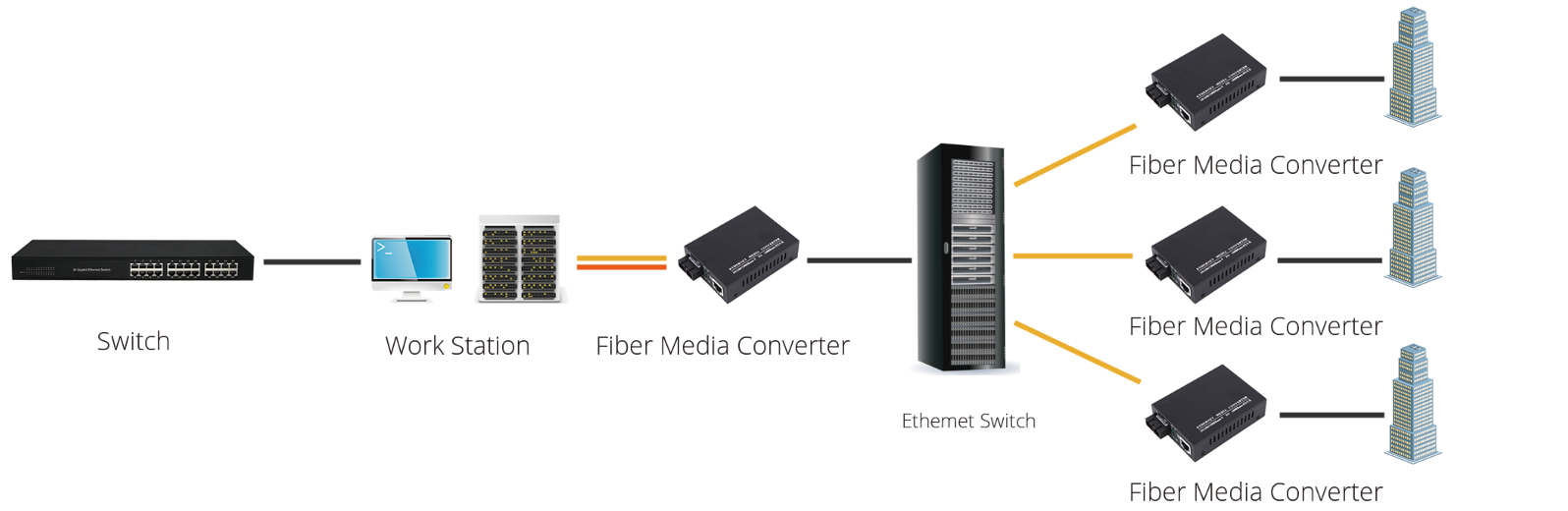

    Gigabit Ethernet Application

    gigabit ethernet application.png

    Part Number

    Fiber Port type

    Wavelength

    (nm)

    Fiber Port

    Rate (bps)

    RJ45 Rate

     (Mbps)

    Distance

    (km)

    Power Supply

    Temp.

    SPM-ITGX-PX

    SFP+ slot

    -

    10G

    10/100/1000/10000

    -

     Internal 220V AC

    0 ~ 50°C

    SPM-ITGX-XX

    XFP slot

    -

    10G

    10/100/1000/10000

    -

     Internal 220V AC

    0 ~ 50°C
