  • OTDR Launch Cable Box

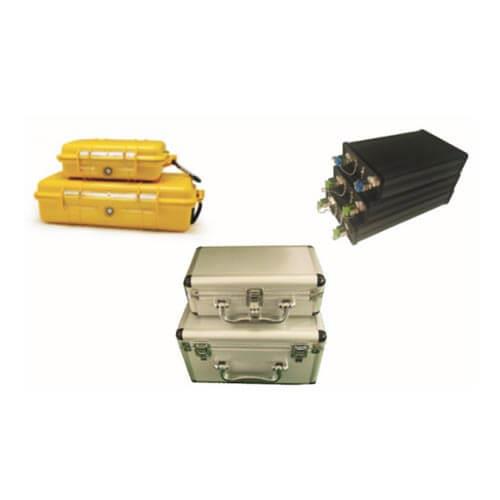

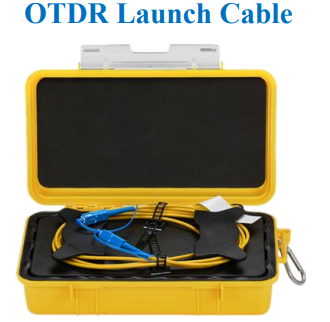

    OTDR Launch Cable Box is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDRs launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths.
  • Contact Us
  • ● Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration

    ● Compound Latch for positive seal and easy opening with locking feature

    ● Water and dust prove allowing the unit to be taken into almost any environment

    ● Auto Purge Valve for changes in altitude and temperature

    ● LAN/WAN testing

    ● Metro network testing

    ● Lab and Factory testing

    ● Optical Network construction and troubleshooting


    LB – [A] – [B] – [C] – [D] – [E]

    A=Input Connector

    B=Output Connector

    C=Fiber Type

    D= Length (km)

    E=Grade

    FC – FC/UPC

    FC – FC/UPC

    S – Coring 9/125

    X

    A

    or

    B

    SC – SC/UPC

    SC – SC/UPC

    M6 – Coring 62.5/125

    ST – ST/UPC

    ST – ST/UPC

    MS – Coring 50/125 (150)

    FCA – FC/APC

    FCA – FC/APC

    OM3 – Coring 50/125 (350)

    SCA – SC/APC

    SCA – SC/APC

    G657A – TKH G.657A 9/125

    LC – LC/UPC

    LC – LC/UPC


    For Example:

    SPTK-LB-SC-SCA-S-2-A

    OTDR Launch Cable Box , Grade A , SC/UPC–SC/APC Single mode Fiber 2km

    Note: Other special fiber of connectors are available upon request.
