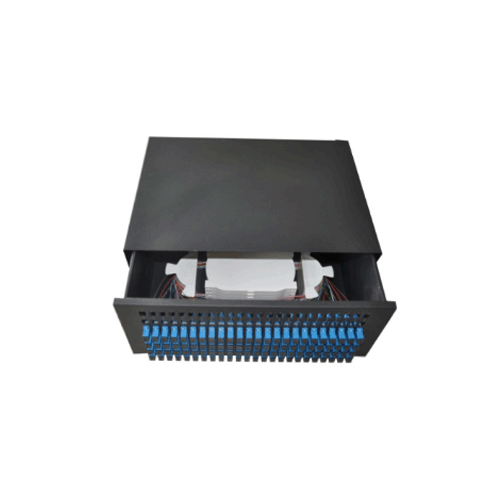

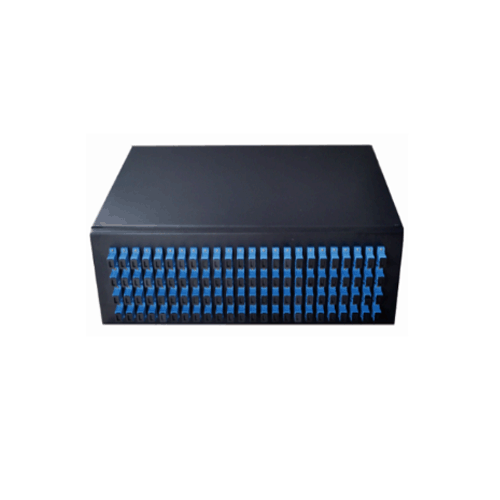

    The 19-inch rack-mounted end box is a passive component for terminal distribution of trunk cables in fiber-optic communication systems, with tools for easy connection and distribution of fiber optic circuits. Sopto offers 19 Inch Rack Drawer Distribution box(Fiber Patch Panel) and 19 Inch Rack Fixed Distribution box(Fiber Patch Panel)
  • Contact Us
  • ● Standard 19-inch structure, could be installed on various of standard racks.

    ● 19" drawer and 19" fixed optional

    ● 1.2mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating

    ● Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LCetc.

    ● Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration

    ● Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.

    ● The series of products by the ministry of information industry standard YD/T 2150-2010, design and manufacture of YD/T1117-2001.


    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN


    Part Number

    Product Description

    Size(mm)

    SPDF-I96FCT-RMA

    Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 96 ports FC/ST type without adaptors, pigtails and splitter Metal type A

    430*250*3U

    SPDF-I96SCT-RMA

    Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 96 ports Simplex SC/Duplex LC type without adaptors,  pigtails and splitter Metal type A

    430*250*3U

    SPDF-I96SCT-RMD

    Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 96 ports Simplex SC/Duplex LC type without adaptors, pigtails and splitter Metal type D

    430*250*4U

    SPDF-I96FCT-RMD

    Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 96 ports FC/ST type without adaptors, pigtails and splitter Metal type D

    430*250*4U

    SPDF-I96SCT-DMD

    Distribution box(Fiber Patch   Panel) Indoor 19inch rack drawer 96 ports Simplex SC/Duplex LC type without   adaptors , pigtails and splitter Metal type D

    430*300*4U

    SPDF-I96FCT-DMD

    Distribution box(Fiber Patch   Panel) Indoor 19inch rack drawer 96 ports FC/ST type without adaptors ,   pigtails and splitter Metal type D

    430*300*4U
