  • Direct Attached Cable Direct Attached Cable Direct Attached Cable
  • Direct Attached Cable

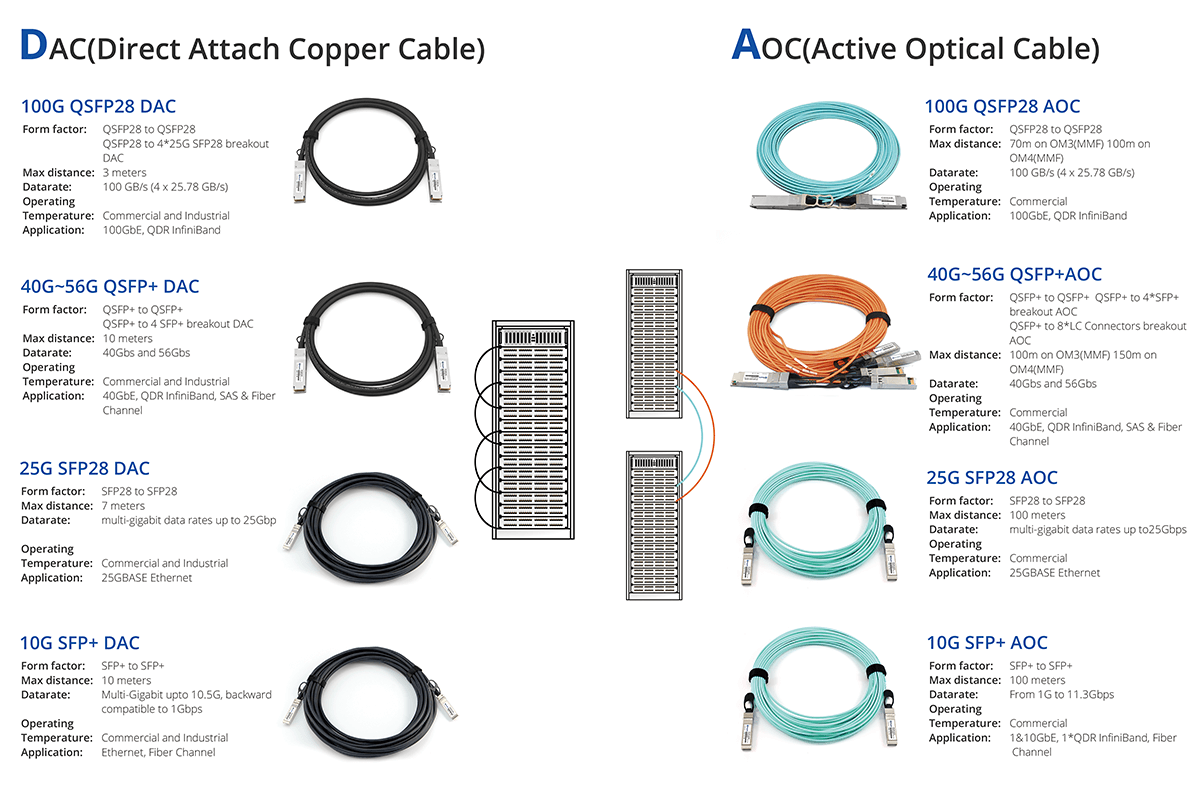

    DAC Direct Attach Copper Cables are further divided into passive copper cable and active copper cableIn most data center, most server to server connections require 2-5 meters, while rack to rack connections are required to be connected by 8-12 meters cables.SOPTO offers a wide range of products for 0.5m to 15m lengths and in QSFP+, SFP+ form factors. The unique EEPROM technique has been used to ensure the DACs are compatible with different brands on the original switches and routers.
  • Contact Us
  • ● Lower Power Consumption

    ● Compliant with SFF-8431 MSA

    ● Replace optical transceiver for short distance

    ● Active DAC can reach up to 15m



    ● 10G~100G Ethernet

    ● Fibre channel

    ● Data center and in-rack connection


    Part  No.

    Description

    SPH-SFP-Cx

    1G SFP to SFP Passive   DAC x Meters x=0.5,1,2,3...12 AWG30/28/24

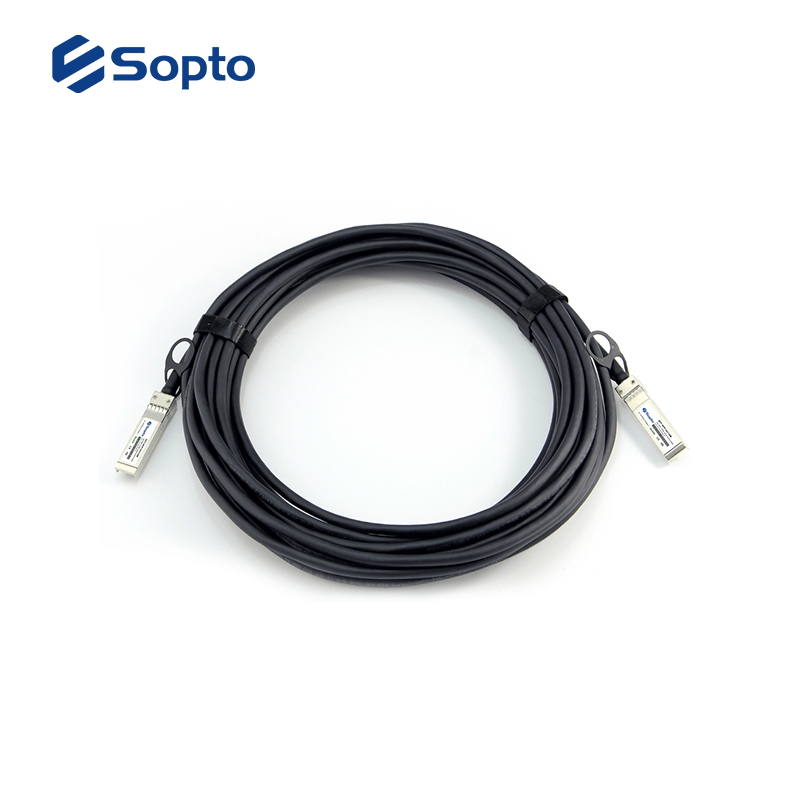

    SPH-SFP+Cx

    10G SFP+   to SFP+ Passive DAC x Meters x=0.5,1,2,3 AWG30 ; x=0.5,1,2,3...10   AWG28/24

    SPH-SFP+ACx

    10G SFP+   to SFP+ Active DAC x Meters x=1,2,3 AWG30; x=1,2,3...10   AWG28; x=1,2,3...15 AWG24

    SPH-SFP28+Cx

    25G SFP28   to SFP28 Passive DAC x Meters x=1,2,3 AWG30; x=1,2,3,4,5   AWG28; x=1,2,3...7  AWG24

    SPH-SFP28-ACx

    25G SFP28   to SFP28  Active DAC x Meters x=1,2,3 AWG30; x=1,2,3,4,5   AWG28; x=1,2,3...12  AWG24

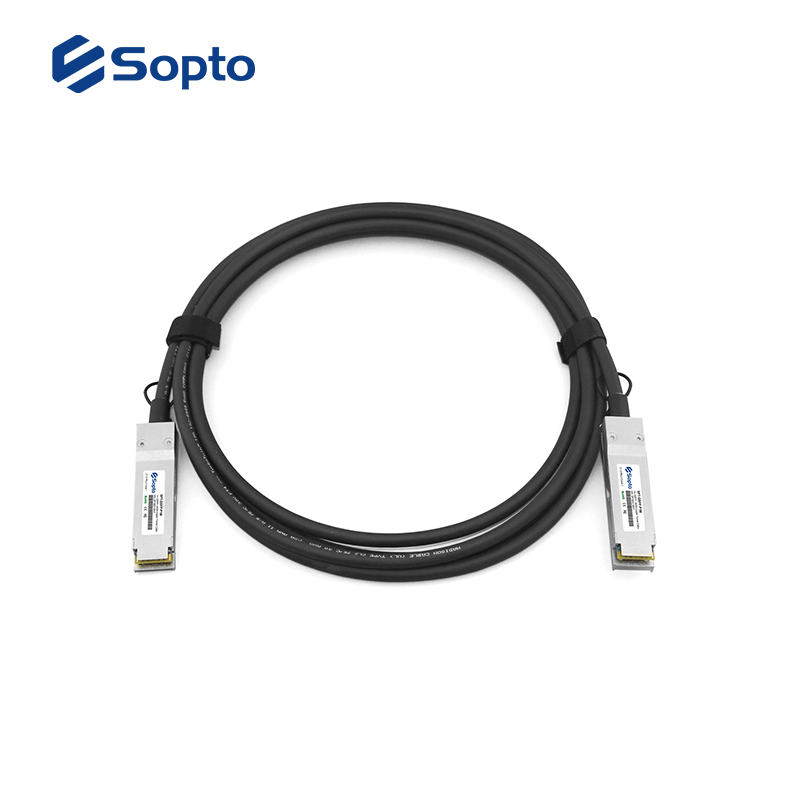

      SPH-QSFP+Cx

    40G QSFP+ to QSFP+ Passive  DAC x Meters x=1,2,3 AWG30; x=1,2,3,4,5 AWG28; x=1,2,3...7 AWG24

    SPH-Q/4SFP+Cx

    40G QSFP+ to 4*SFP+   Passive DAC x=1,2,3 AWG30; x=1,2,3,4,5 AWG26  x=1,2,3,4,5,6,7 AWG24

      SPH-QSFP28-Cx

    100G QSFP28 to QSFP28 Passive DAC x Meters x=0.5,1,2 AWG30; x=0.5,1,2,3,4 AWG28  x=0.5,1,2,3,4,5 AWG26

    Note:1. Default jacket material is PVC.

            2.   Default operating case temperature is 0 ~ 70. If you need -40 ~85 products, add “T” after Part Number .
