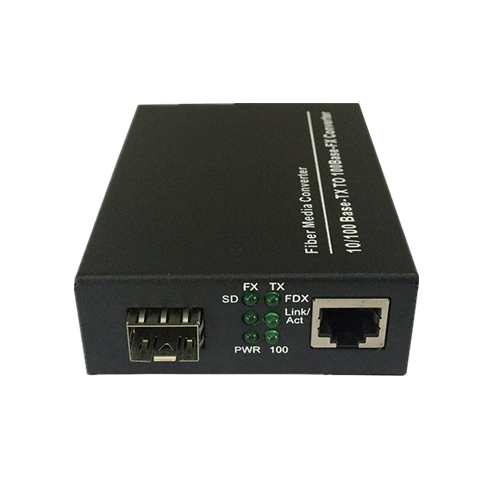

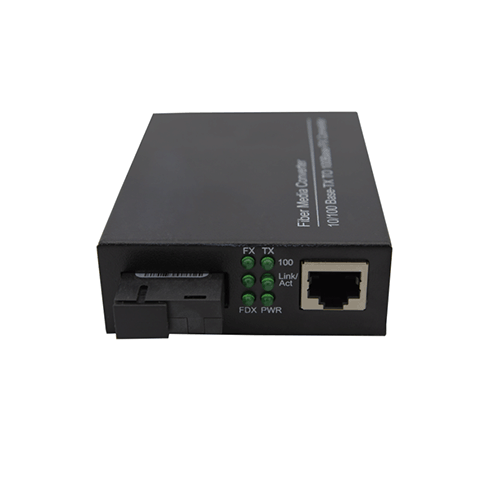

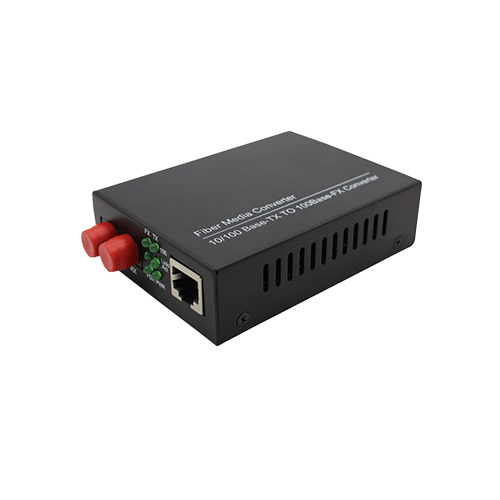

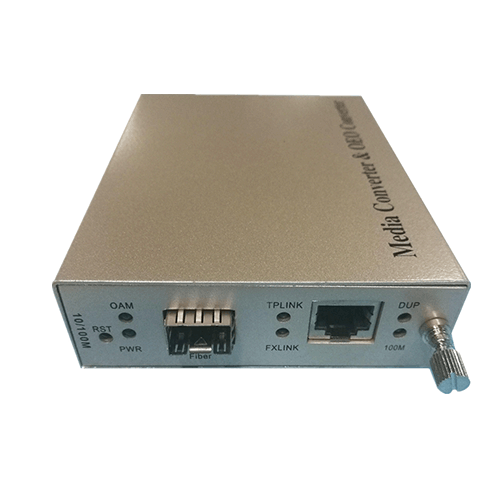

10/100M Media Converter
● Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
● Auto-negotiation support on RJ45 port
● Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
● Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
● Auto MDI/MDI-X support on RJ45 port
● Distances up to: 2 km Multimode, 120 km Single Mode
● SC, FC optical Interface
● Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
● External power adapter
● LAN/WAN
● Access Control Systems
● 10/100 Mbps Ethernet
● High Speed Computer Links

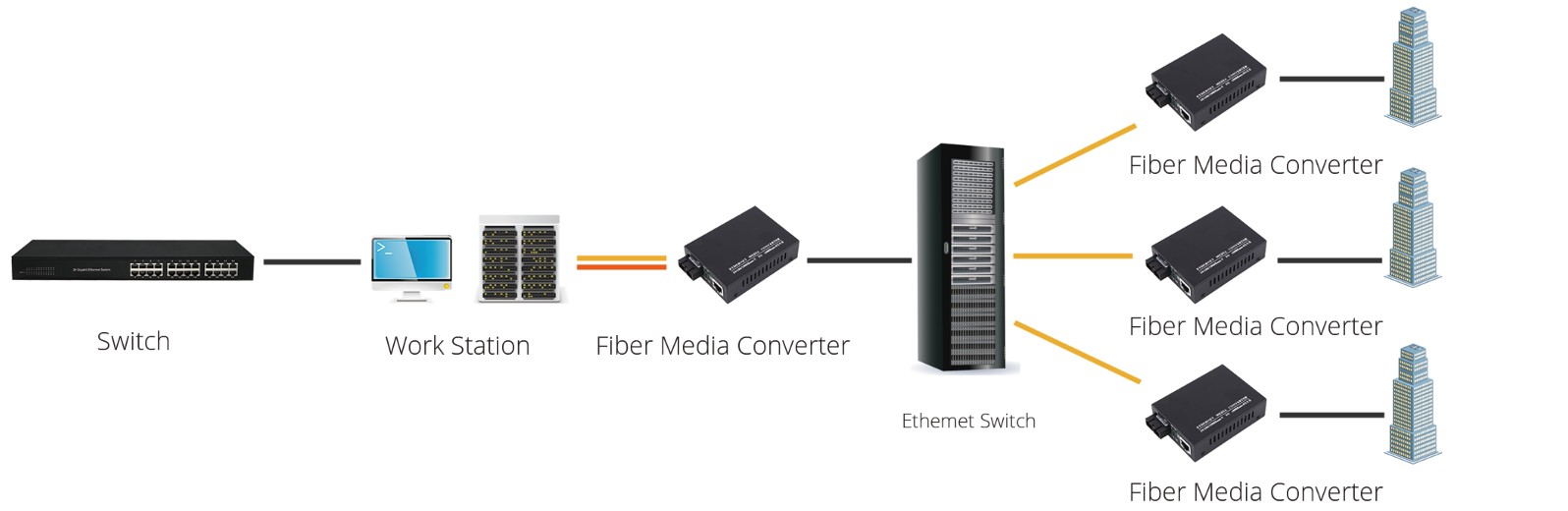

Fast Ethernet Application

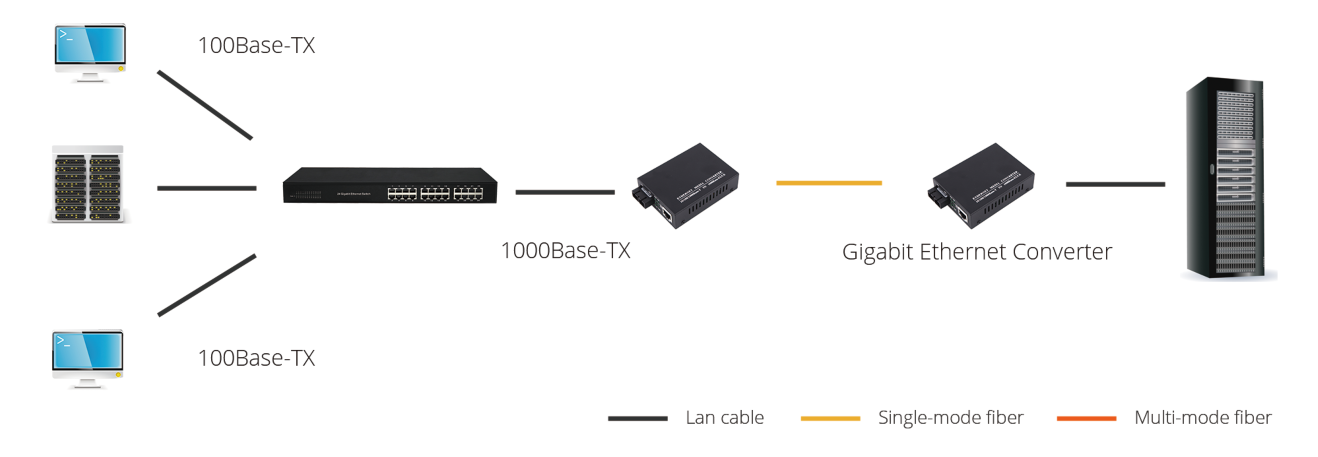

Gigabit Ethernet Application
Part Number | Fiber Port type | Wavelengths (nm) | Fiber Port Rate (Mbps) | RJ45 Rate (Mbps) | Distance (km) | Power Supply | Temp. |
SPM-ET4X-PX | SFP slot | - | - | 10/100 | - | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET43-N02S | 1*9, SC | 1310 | 100 | 10/100 | 2 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET43-N02F | 1*9, FC | 1310 | 100 | 10/100 | 2 | External Power 220V AC | 0 ~ 50°C |
SPM-ET43-N02T | 1*9, ST | 1310 | 100 | 10/100 | 2 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET43-N20S | 1*9, SC | 1310 | 100 | 10/100 | 20 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET43-N40S | 1*9, SC | 1310 | 100 | 10/100 | 40 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET43-N60S | 1*9, SC | 1310 | 100 | 10/100 | 60 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET45-N80S | 1*9, SC | 1550 | 100 | 10/100 | 80 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET45-N100S | 1*9, SC | 1550 | 100 | 10/100 | 100 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET45-N120S | 1*9, SC | 1550 | 100 | 10/100 | 120 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET435-N20S | BIDI 1*9, SC | 1310Tx/1550Rx | 100 | 10/100 | 20 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET453-N20S | BIDI 1*9, SC | 1550Tx/1310Rx | 100 | 10/100 | 20 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET435-N40S | BIDI 1*9, SC | 1310Tx/1550Rx | 100 | 10/100 | 40 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET453-N40S | BIDI 1*9, SC | 1550Tx/1310Rx | 100 | 10/100 | 40 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET435-N60S | BIDI 1*9, SC | 1310Tx/1550Rx | 100 | 10/100 | 60 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET453-N60S | BIDI 1*9, SC | 1550Tx/1310Rx | 100 | 10/100 | 60 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET445-N80S | BIDI 1*9, SC | 1490Tx/1550Rx | 100 | 10/100 | 80 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET454-N80S | BIDI 1*9, SC | 1550Tx/1490Rx | 100 | 10/100 | 80 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET445-N120S | BIDI 1*9, SC | 1490Tx/1550Rx | 100 | 10/100 | 120 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET454-N120S | BIDI 1*9, SC | 1550Tx/1490Rx | 100 | 10/100 | 120 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-ET435-N40F | BIDI 1*9, FC | 1310Tx/1550Rx | 100 | 10/100 | 40 | External Power Supply 220V AC | 0 ~ 50°C |
SPM-EDT453-N40F | BIDI 1*9, FC | 1550Tx/1310Rx | 100 | 10/100 | 40 | External Power Supply 48V DC | 0 ~ 50°C |
