  • Standalone 4 PON EPON OLT Standalone 4 PON EPON OLT
  • Standalone 4 PON EPON OLT

    SOPTO’s 4PON EPON OLT provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. 4PON EPON OLT is a high-performance product.
  • Contact Us
  • ● Four pon port in 1U pizza-box

    ● Four uplink GE optical SFP ports

    ● Four uplink GE RJ45 copper ports

    ● NMS management based on standard SNMP protocol

    ● Double 220VAC or -48VDC redundancy power supply


    Specification

    Size

    440*230mm*44mm(L*W*H)

    Weight

    3.4kg

    Power Consumption

    34W

    Power supply

    220VAC

    AC: 90V240V47/63Hz

    Working environment

    Working temperature

    050

    Storage temperature

    -4085Relative

    Relative humidity

    590% (Non-condensing)

    Management Mode

    SNMP, Telnet, CLI   management mode.

    Management Port

    1*10/100/1000Mauto-negotiable outband port

    1CONSOLE port

    Uplink Port

    QTY

    8

    Copper

    10/100/1000M auto-negotiable,RJ45:4pcs

    SFP

    4 SFP slots

    PON Port

    Quantity

    4

    Physical interface

    SFP slot

    Connector Type

    1000BASE-PX20+

    Max splitting ratio

    1:64

    PON Port attribute



    Transmission distance

    20KM

    Port rate

    Symmetrical 1.25Gbps

    Wavelength

    1490nm TX,1310nm RX

    Interface type

    SC/PC

    Fiber type

    9/125μm SMF (Single Mode Fiber)

    TX Power

    +2.5+7dBm

    Rx Sensitivity

    -27dBm

    Saturation power

    -6dBm

    EPON Function

    Support port-based rate limitation and bandwidth control;

    In compliant with IEEE802.3ah Standard

    Up to 20KM transmission Distance

    Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

    Support Dynamic Bandwidth Allocation (DBA)

    Support ONU auto-discovery/Link detection/remote upgrade of software;

    Support VLAN division and user separation to avoid broadcast storm;

    Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

    Support power-off alarm function ,easy for link problem detection

    Support broadcasting storm resistance function

    Support port isolation between different ports

    Support ACL and SNMP to configure data packet filter flexibly

    Specialized design for system breakdown prevention to maintain stable system

    Support dynamic distance calculation on EMS online

    Support RSTP, IGMP Proxy


    —————————————————————————————————————————————————

    onuonu


    EPON OLT Factory Configuration (User Manual and EMS)


    Download link:https://pan.baidu.com/s/1R_CDpI0co7xOhj70vLjtvg


    Code:ser2

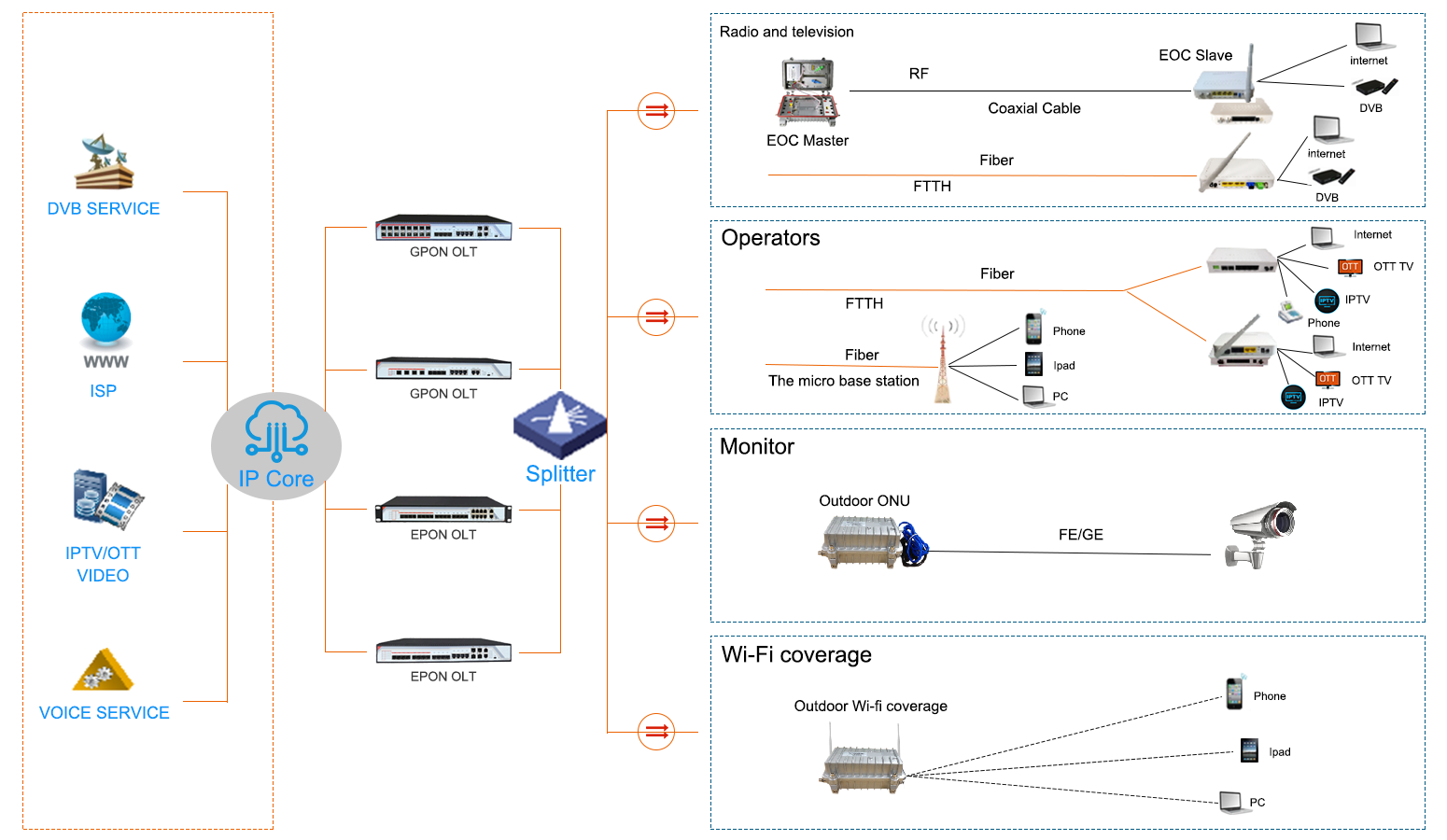

       Applications in FTTH

    PON OLT Network Application(1).png


    Related Articles

    ●  What is the PON+EOC network solution

    ●  Introduction and Comparison EPON and GPON


    Product

    Model

    Configuration

    Notes

    1U EPON OLT

    SPO-ES4404

    1U EPON OLT , 4PON ports, 4 GE uplink optic ports, 4 GE uplink electric ports, 220V AC or -48V DC plug-in power modules,supports dual power supply

    without SFP modules

    1U EPON OLT

    SPO-ES4424

    OLT 1U Standalone EPON 4 PON Ports + 4 GE uplink optic ports(SFP)/4 GE uplink UTP  ports + 2 10GE uplink optic ports(SFP+)   Commercial Temperature ,  1 USB interface;1.BBU key,N-without BBU; B-with BBU; 2.Power key, SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC

    Without SFP modules
