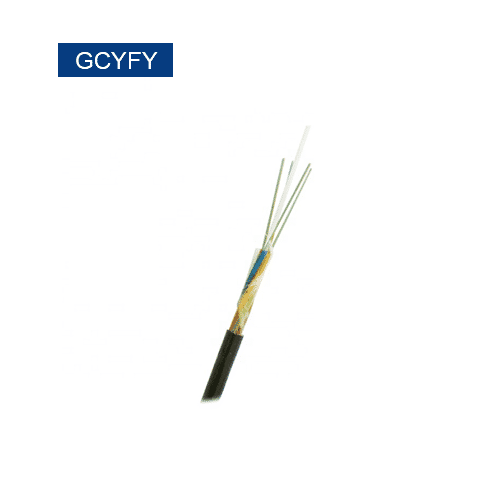

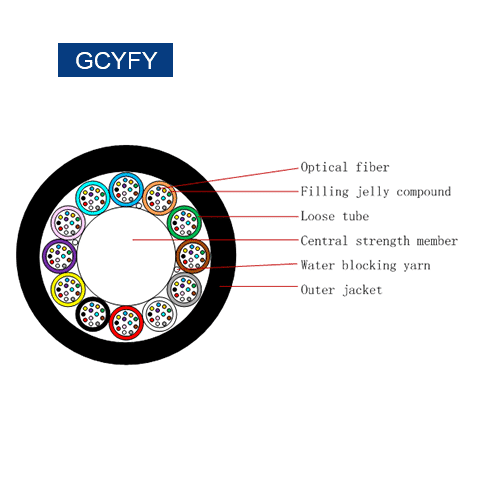

    Air Blowing Fiber Optical Cable is a loose tube made of a high-modulus material of 250 μm single-mode or multi-mode fiber, and the casing is filled with a non-toxic and harmless waterproof compound. The center of the cable core is a non-metallic reinforcing core (FRP), and the loose tube (or filling rope) revolves around the center reinforcing core to form a compact circular core.
  • Contact Us
  • ● 2 ~ 144 cores

    ● Non-mental design can prevent the cable from radio interference and magnetic wave interference

    ● Specially designed compact structure is good at preventing loose tubes from shrinking

    ● Loose tube filling compound ensure good moisture resistance performance

    ● Lighter and small diameter

    ● Excellent flexibility and bending performance

    ● High dense fiber packed, small diameter and light weight; it’s the better option for installation in duct

    ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM(OM1, OM2,OM3,OM4) are available;

    ● Rapid pipe installation


    Working Condition

    Item

    Standard

    Parameters

    Operation temperature

    IEC 60794-1-2 F1

    -20℃~+60℃

    Water penetration

    IEC 60794-1-2-F5

    Water level:1m ,sample:3m, After 24h,no water ingress.


    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC

    certificate .png


    ● Long-distance backbone network

    ● Urban ring network

    ● Access Network, FTTX

    ● Relay between communication machine rooms

    ● Building cable in integrated wiring

    ● Expansion in duct


    Related Articles

    ●  What is the armored fiber optic cable

    ●  Optical Fiber and Optical Fiber Classification

    ●  What is Principle of Optical Fiber Communication


     Cable Type

                                                   Product Description

     Application

    Details

     GCYFY

     Air blowing optical cable , Tiny tube; Semi-dry water-blocking; HDPE jacket

     Air-blowing in duct

    GCYFY.pdf
