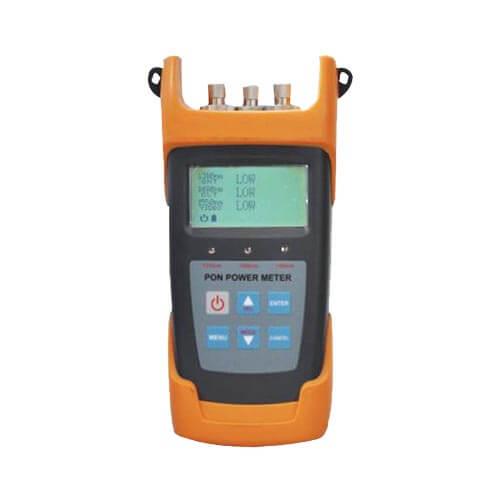

  • PON Optical Power Meter

    PON optical power meter- intelligent and economical. Its working mode is to extract a small part of the optical signal online at any position in the PON network, and then measure the whole FTTx service opening, maintenance and detection stage, reliably verify and ensure the network communication requirements are met.3213 Series PON Optical Power Meter target at the FTTx application and maintenance. It is able to simultaneously test and estimate the signals of the voice, data and video
  • Contact Us
  • ● It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.

    ● *Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).

    ● Used in Burst mode measurement of 1310nm upstream.

    ● Optional Chinese/English display.

    ● Offers up to 10 different threshold sets in total, three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.

    ● Good key design, high sensitivity, greatly reducing the volume and weight of the tester.

    ● Different models corresponding to different function, according to own use to choose.


    Brief information

    SPTK-3213

    SPTK-3213A

    SPTK-3213AV

    SPTK-3213AP

    Continuously Operation time (h)

    PON:90h

    PON: 90h

    OPM: 100h

    VFL: 50h

    PON: 90h

    VFL: 50h

    PON: 90h

    OPM: 100h

    Normal Optical Power Meter

    Calibration Wavelength(nm)

    NONE

    1310/ 1490/1550/1625

    NONE

    1310/ 1490/1550/1625

    VFL

    NONE

    650nm, Output power >0.5mW

    650nm, Output power >0.5mW

    NONE


    ● Telecom and CATV maintenance

    ● Fiber optic lab testing

    ● Fiber optic measurements

    ● FTTH optical project


    Part Number

    Product Description

    SPTK-3213

    PON Optical Power Meter Standard type test 1490nm,1550nm,1310nm

    SPTK-3213A

    PON Optical Power meter + Normal Optical Power Meter Module + VFL

    SPTK-3213AV

    PON Optical Power Meter +VFL

    SPTK-3213AP

    PON Optical Power meter +Normal Optical Power Meter Module
