  • 4G SFP 4G SFP 4G SFP 4G SFP
  • 4G SFP

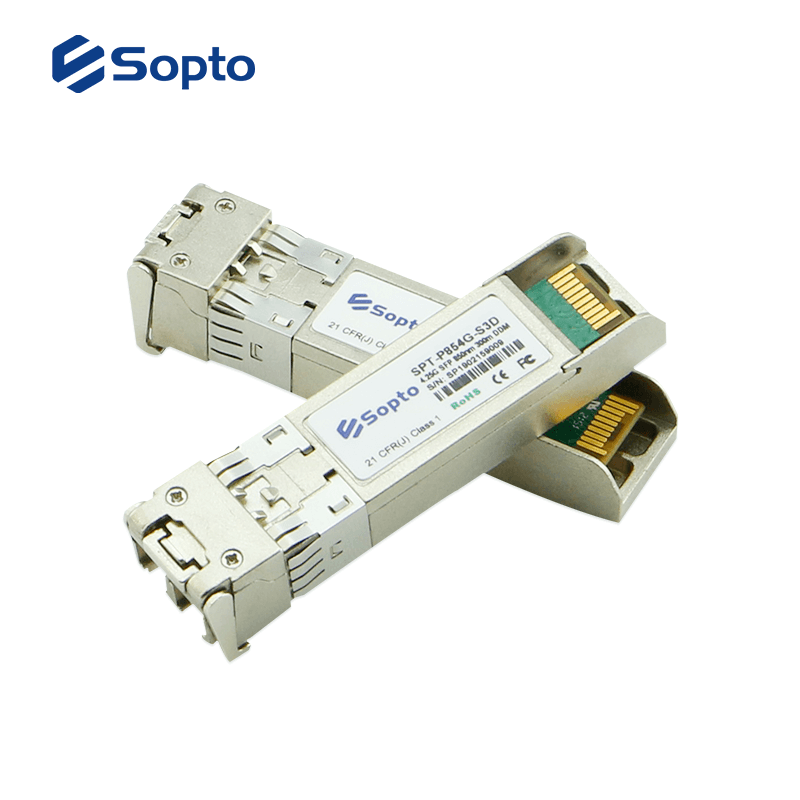

    SOPTO’s 4G SFP is a series of optical transceiver modules designed for use in 4x/2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● Single +3.3V power supply

    ● Supports date rates up to 4.25Gb/s

    ● Built-in digital diagnostic functions

    ● Transmission distance up to 300m on MMF OM3 and 80km over SMF

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C


    Hot Model

    P/NDescriptionDetails
    SPT-P854G-S3D850nm, 4.25Gbps,300m, 0ºC~+70ºC, DDM

    PDF

    If you have more requirements about wavelength, distance etc, please cantact us


    Compliant

    ● RoHS-6

    ● SFP+ MSA

    ● FC-PI 13.0

    ●  IEEE Std 802.3

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png

    ---------------------------------------------------------------------------------------------------------------------------------


    ● 4X/2X/1X Fiber Channel

    ● 1000Base Ethernet

    ● SDH/SONET

    ● Storage Area Network(SAN)

    ● Other Optical Link



    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules




    PN

    Data   Rate (Gbps)

    Distance

    Fiber

    Output   Power(dBm)

    Sensitivity(dBm)

    Interface

    Temp.

    DDM

    SPT-P854G-S3D

    4.25

    300m/OM3

    MM

    -5-1

    -11

    Duplex LC

    0 to 70

    D

    SFP-P134G-10D

    4.25

    10km

    SM

    -50

    -15

    Duplex LC

    0 to 70

    D

    SFP-P134G-20D

    4.25

    20km

    SM

    -40

    -15

    Duplex LC

    0 to 70

    D

    SPT-P554G-40D

    4.25

    40km

    SM

    03

    -17

    Duplex LC

    0 to 70

    D

    SPT-P554G-80D

    4.25

    80km

    SM

    05

    -23

    Duplex LC

    0 to 70

    D
