  • 12 cores 12 cores 12 cores

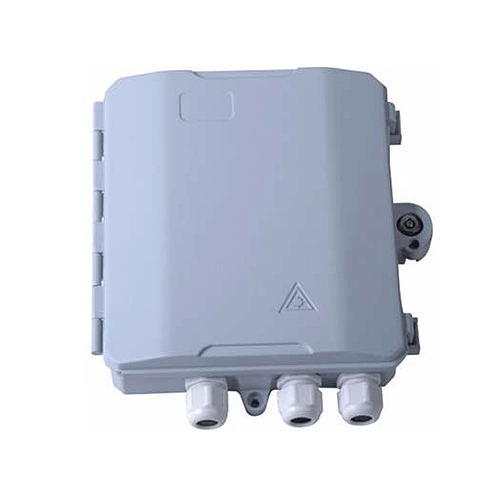

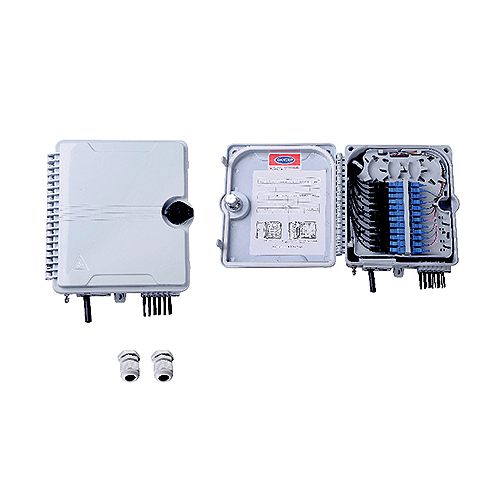

  • 12 cores Splitter Distribution Box

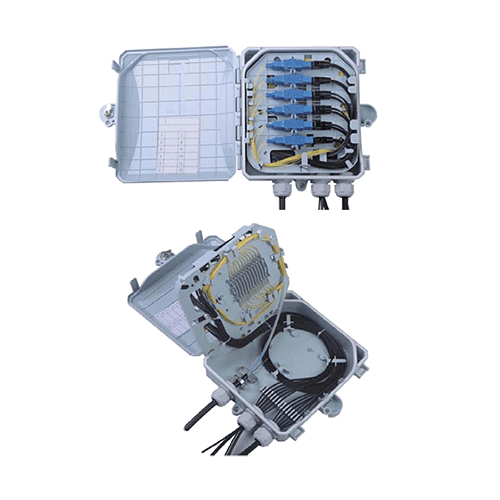

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Total enclosed structure, be in nice shape

    ● Protects and manages cable effectively

    ● Secured with anti-theft locking mechanism

    ● Standard size, light weight

    ● High quality PC +ABS material

    ● Good properties of dust, and moisture proofing, IP65

    ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

    ● Suitable for SC and LC duplex adaptor and pigtail

    ● Easy to operate

    ● Suitable for both outdoor and indoor use


    Item

    Parameter

    Model No.

    SPDF-O12SCS-XX

    Mounting way

    Wall-mounting

    Work Temperature

    -40 °C ~+85 °C

    Relative Humidity

    ≤ 85% (+30 °C)

    Atmospheric Pressure

    70Kpa~106Kpa

    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times

    Insulation

    The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)

    Withstand Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash over. U ≥3000V (direct current)


    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN


    Part Number

    Product Description

    Size(mm)

    SPDF-O12SCS-PMPA

    Splitter Distribution Box Outdoor Wall mounted 12 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic   type A

     255*200*65

    SPDF-O12SCS-PPD

    Splitter Distribution Box Outdoor Wall mounted 12 cores Simplex SC/Duplex LC type without hoop, adaptors, pigtails and splitter Plastic type D

    199*174*53
