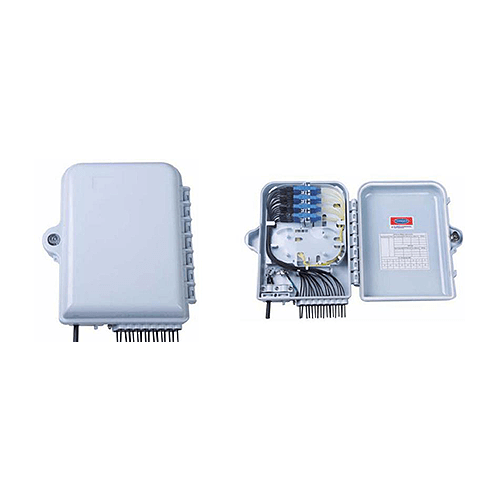

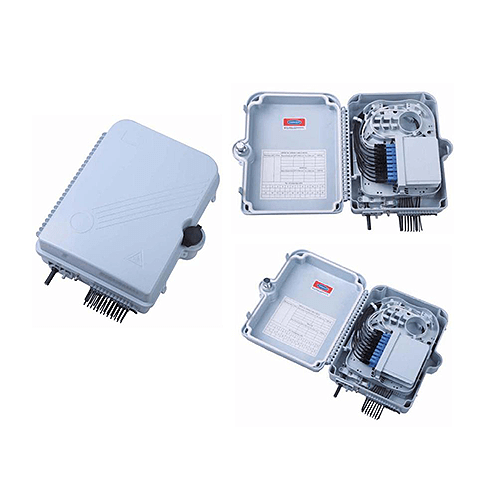

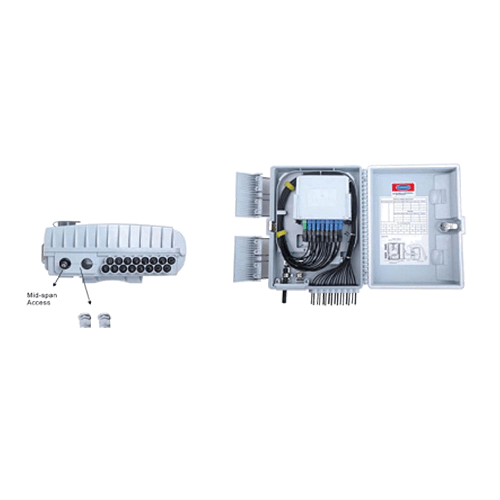

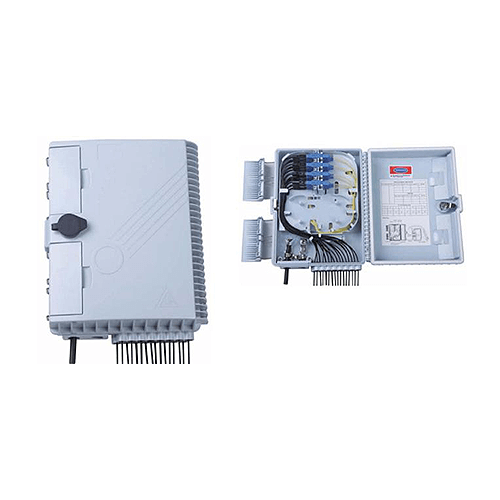

  • 16 cores Splitter Distribution Box

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Total enclosed structure, be in nice shape

    ● Protects and manages cable effectively

    ● Secured with anti-theft locking mechanism

    ● Standard size, light weight

    ● High quality PC +ABS material

    ● Good properties of dust, and moisture proofing, IP65

    ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

    ● Suitable for SC and LC duplex adaptor and pigtail

    ● Easy to operate

    ● Suitable for both outdoor and indoor use


    Item

    Parameter

    Model No.

    SPDF-O16SCS-XXX

    Mounting way

    Wall-mounting or Pole mounting

    Work Temperature

    -40 °C ~+85 °C

    Relative Humidity

    ≤ 85% (+30 °C)

    Atmospheric Pressure

    70Kpa~106Kpa

    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times

    Insulation

    The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)

    Withstand  Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)


    ● Telecommunication subscriber loop

    ● Fiber to the home(FTTH)

    ● LAN/WAN



    Part Number

    Product Description

    Size(mm)

    SPDF-O16SCS-PMPA

    Splitter Distribution Box Outdoor Wall mounted 16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic   type A

    317*237*101



    SPDF-O16SCS-PMHPA

    Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic   type A

    317*237*101



    SPDF-O16SCS-PMPB

    Splitter Distribution Box Outdoor Wall mounted    16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic   type B

    301*224*73

    SPDF-O16SCS-PMHPB

    Splitter Distribution Box Outdoor pole mounted   16 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic   type B

    301*224*73

    SPDF-O16SCS-PPPA

    Splitter Distribution Box Outdoor Wall mounted pole mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic   type A

    292*218*83

    SPDF-O16SCS-PPHPA

    Splitter Distribution Box Outdoor pole mounted16 cores Simplex SC/Duplex LC type available for plugin splitter installation with hoop, without adaptors, pigtails and splitter Plastic   type A

    292*218*83

    SPDF-O16SCS-PPPB

    Splitter Distribution Box Outdoor Wall mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic   type B

    301*224*73

    SPDF-O16SCS-PPHPB

    Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter installation with ho

    301*224*73

    SPDF-O16SCS-PPPC

    Splitter Distribution Box Outdoor pole mounted/wall mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic   type C

    317*237*101

    SPDF-O16SCS-PPHPC

    Splitter Distribution Box Outdoor pole mounted/wall mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter installation with hoop, without adaptors, pigtails and splitter Plastic   type C

    317*237*101
