  • 1.25G CWDM SFP

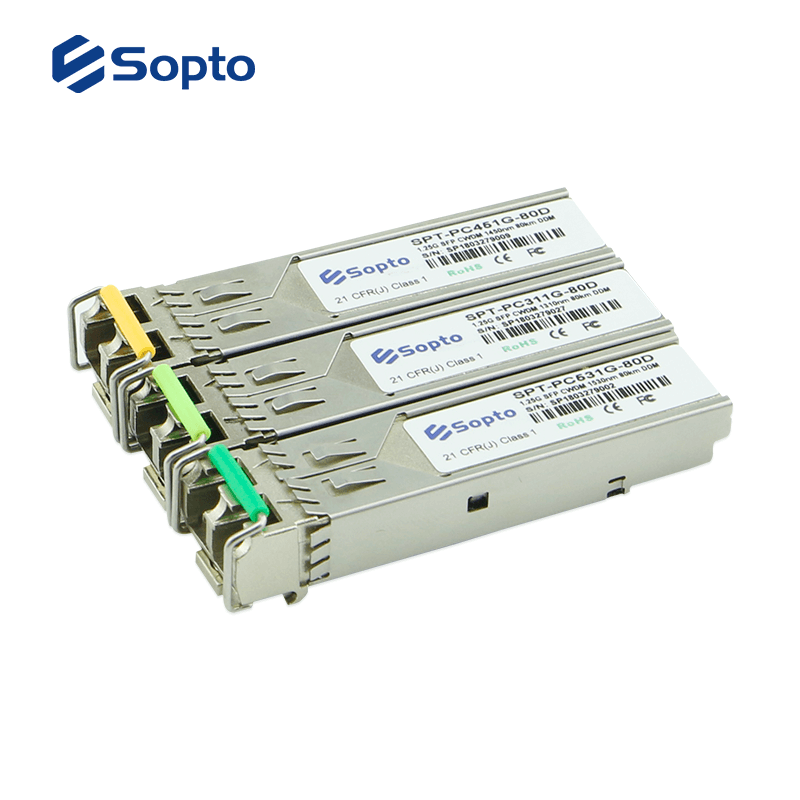

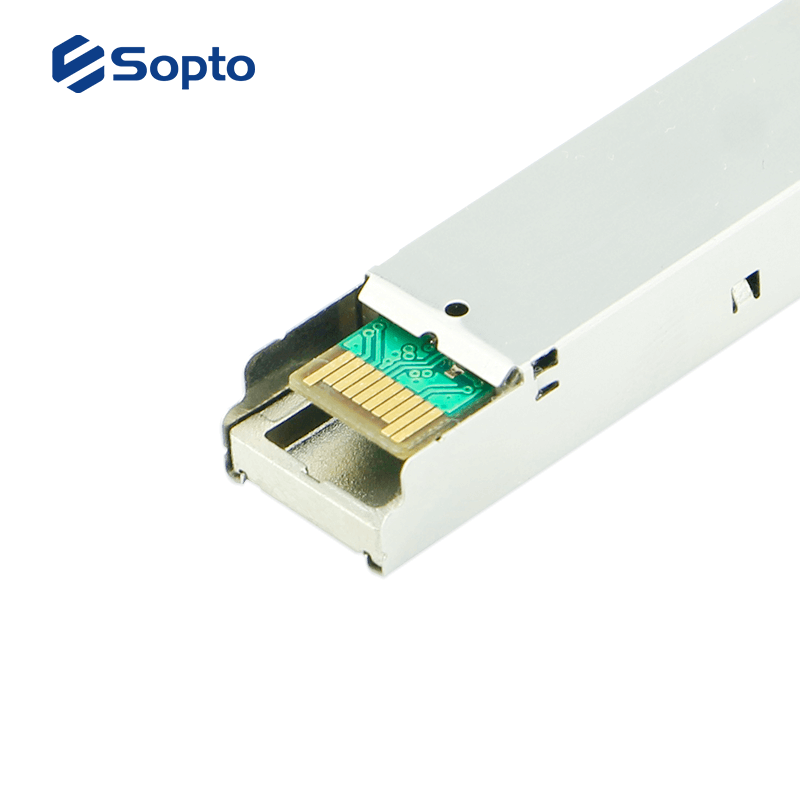

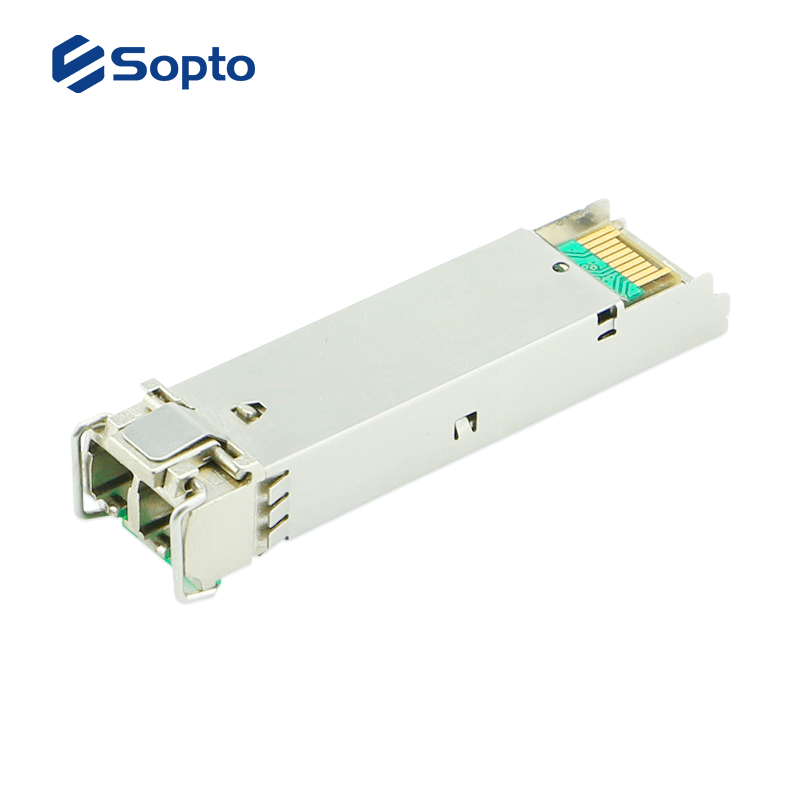

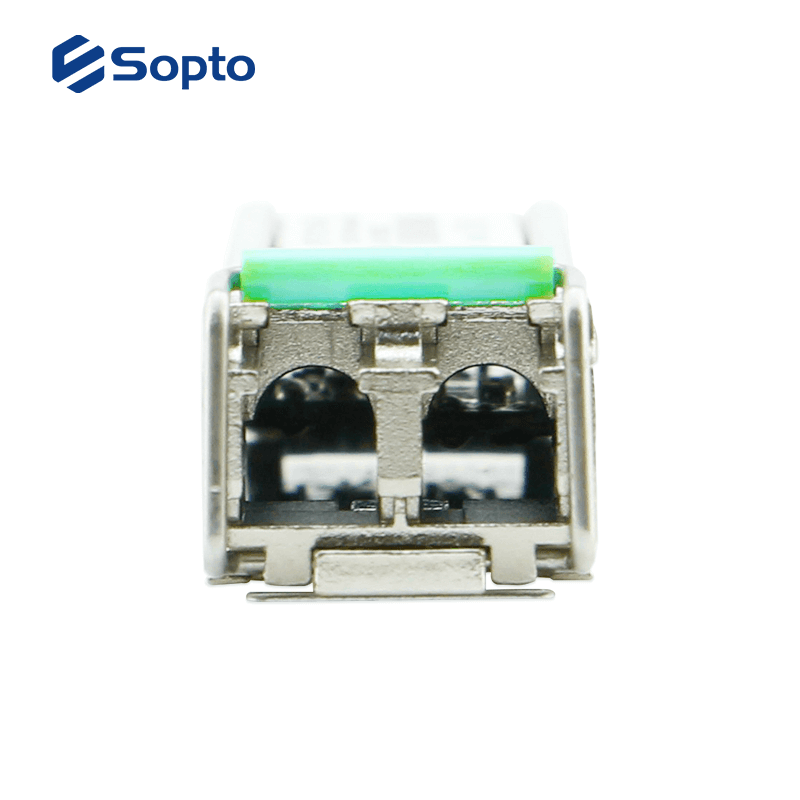

    SOPTO’s CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
  • Contact Us
  • ● Single +3.3V power supply

    ● Built-in digital diagnostic functions

    ● Transmission distance up to 120km over SMF

    ● Supports data rates from 100Mb/s to 1.25Gb/s

    ● 18 Wavelengths CWDM 1270nm to 1610nm Available

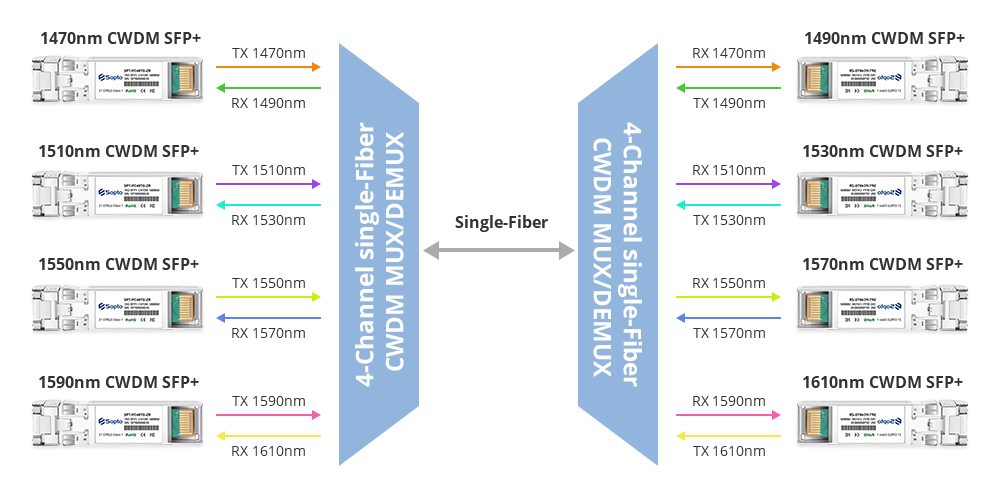

    ● Can be used with single fiber CWDM system or dual fiber CWDM system

    ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C


    P/NDescriptionDetails
    SPT-PCXX1G-40DCWDM 1270nm~1610nm,1.25Gbps, 40km,0ºC ~ +70ºC, With DDM

    PDF

    SPT-PCXX1G-80DCWDM 1270nm~1610nm, 1.25Gbps, 80km,0ºC ~ +70ºC, With DDM

    PDF

    SPT-PCXX1G-120DCWDM 1270nm~1610nm, 1.25Gbps, 120km,0ºC ~ +70ºC, With DDM

    PDF


    Compliant

    ● RoHS-6

    ● SFP MSA

    ●  FC-PI 13.0

    ●  IEEE Std 802.3

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png

    ----------------------------------------------------------------------------------------------------------------------------------




    ● Fast Ethernet

    ● Gigabit Ethernet

    ● 1X Fibre Channel

    ● SONET/SDH OC-3/STM-1

    ● SONET/SDH OC-12/STM-4

    ● SONET/SDH OC-24/STM-8

    ● CWDM Networks


    Related Articles

    ●  Single Mode Fiber Transceivers

    ●  What is the Basic Principle of an Optical Module

    ●  Fiber Optic Transceiver Module's Selection and Use Skills

    ●  Introduction to common package types of optical modules



    PN

    Data Rate

     (Gbps)

    Distance

    Fiber

    OutputPower

    (dBm)

    Sensitivity

    (dBm)

    Interface

    Temp.

    DDM

    SPT-PCXX1G-40D

    1.25

    40km

    SM

    -5~0

    -24

    Duplex LC

    0 to 70℃

    D

    SPT-PCXX1G-80D

    1.25

    80km

    SM

    0~5

    -24

    Duplex LC

    0 to 70℃

    D

    SPT-PCXX1G-120D

    1.25

    120km

    SM

    0~5

    -32

    Duplex LC

    0 to 70℃

    D

    Notes:

    In the Part Number, XX stands for central wavelength,

    such as 27 for 1270nm, 31 for 1310nm, 47 for 1470nm, ......61 for 1610nm.
