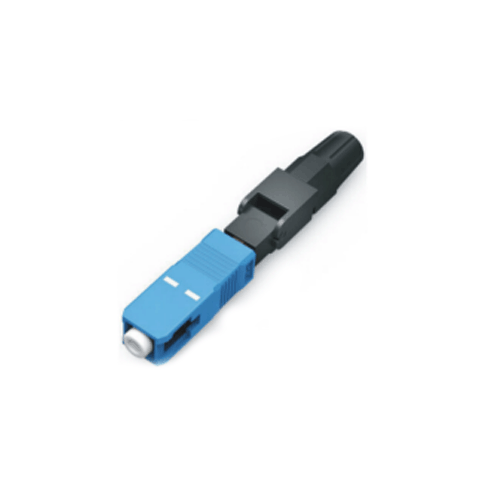

  • Fast Connector Fast Connector Fast Connector
  • Fast Connector

    Fiber fast connector is the detachable quick connection between optical fiber and optical fiber devices, it is to put the two optical fiber end face up, so that the optical output of light energy can bigger limit coupled to the receiving optical fiber, and optical link due to the intervention and the effects on the system to a relatively small.
  • Contact Us
  • ● Meet Telcordia gr-326-core standard.

    ● Low insertion loss, high echo attenuation, high stability.

    ● Good interchangeability.

    ● Adopt standard metal parts.

    ● Bayonet connection mode, high-density connection.

    ● Ceramic core APC, UPC grinding.


     Item

     Parameter

     Work Temperature

     -40~+85

     Insert Loss

     APC≤0.3dBUPC≤0.35dB

      Return   Loss

     APC≥50dBUPC≥45dB

     Fiber Diameter.

     0.9/2.0/3.0mm


    Sopto fiber optic connector took the first lead to pass the ISO9001 quality system, the requirements of European RoHs


    Download

    ● Fast Connectors are used to open an FTTH fiber terminal.

    ● The connection box, the cabinet, the end box and so on.

    ● The recovery and maintenance of accidents such as broken fiber.

    ● LAN, wan, data and video transmission.

    ● The construction and maintenance of optical fiber access for the end users.


    Related Articles

    ●  SC Fast Connector Assembly Instruction

    ●  The fiber optic connector common classification and characteristics


    Part Number

    Product Description

    SPFA-SCU-SA

    Fast Connector SC/UPC Simplex SM A type

    SPFA-SCA-SA

    Fast Connector SC/APC Simplex SM A type

    SPFA-SCU-MA

    Fast Connector SC/UPC Simplex MM A type

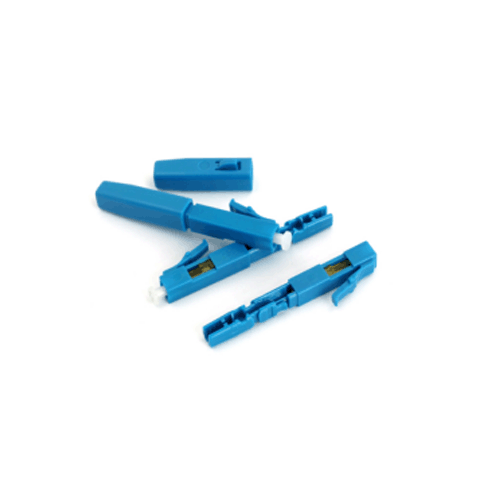

    SPFA-LCA-SA

    Fast Connector LC/APC Simplex SM cable diameter 0.9mm A   type
