    Sopto’s optical distribution frame units (Installed in ODF) offers flexible cabling access, expandable frame design and comprehensive cable management. All series of optical distribution frame units of 12 cores, 24 cores, 48 cores, 72 cores ,96 cores are available.
  • Contact Us
  • ● Standard size, light weight and reasonable structure

    ● Splice tray inside changeable

    ● Can be used in 19-inch standard optical distribution frame

    ● Suitable for ribbon and single fiber

    ● Various panel plate to fit different adapter interface

    ● Front mark on the plate is easy for identification and operation

    ● Door lock of special structure, quick open/close

    ● Cold-Rolled Steel Plate (Surface Electrostatic Spray) Box or Aluminum one

    ●  12, 24, 48, 72 ,96 ,120 optional, with or without fiber optic pigtails and adapter

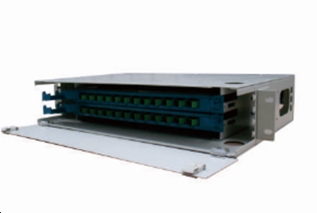

    ODF_24 port.jpg

    ODF -48port.jpg

    24 port48 port

    ODF BOX_72port.jpg

    ODF BOX_96port.jpg

    72 port96 port




    ● FTTx systems

    ● LAN, WAN and Metro Networks

    ● Analog/Digital Passive Optical Networks

    ● CATV Networks

    ● Other applications in fiber optical systems


    Model No.

    Description

    Size(H*W*D)

    SPDF-I24SCU-FMB

    ODF Unit Box Indoor 24 cores 2U height with Door Simplex SC/Duplex LC type without adaptor,

     pigtail and splitter Metal type B

    480*280*2U

    SPDF-I48SCU-FMB

    ODF Unit Box Indoor 48 cores 3U height with Door Simplex SC/Duplex LC type without adaptor,

    pigtail and splitter Metal type B

    480*280*3U

    SPDF-I72SCU-FMB

    ODF Unit Box Indoor 72 cores 4U height with Door Simplex SC/Duplex LC type without adaptor,

     pigtail and splitter Metal type B

    480*280*4U

    SPDF-I96SCU-FMB

    ODF Unit Box Indoor 96 cores 6U height with Door Simplex SC/Duplex LC type without adaptor,

    pigtail and splitter Metal type B

    480*280*6U
