  • Duct Fiber Cable

    The duct fiber optical cable is used for the outdoor cable in the access network or the customer premises network. Pipeline optical cable is generally used in urban areas. The environment in which the pipeline is laid is relatively good. Therefore, there is no special requirement for the cable sheath, and no armoring is required. The length of the laying section and the position of the splicing point must be selected before laying the pipe.
  • Contact Us
  • ● 2 ~ 576 cores

    ● Steel wire/FRP as strength member.

    ● Aluminum tape is more suitable for piping

    ● Loose-tube twisted single sheath or central tube structure

    ● Loose sleeve material with good hydrolysis resistance and high strength;

    ● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance

    ● Bunched or ribbon fiber

    ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;

    ● PE, AT,LSZH outer jacket material optional


    Hot Model

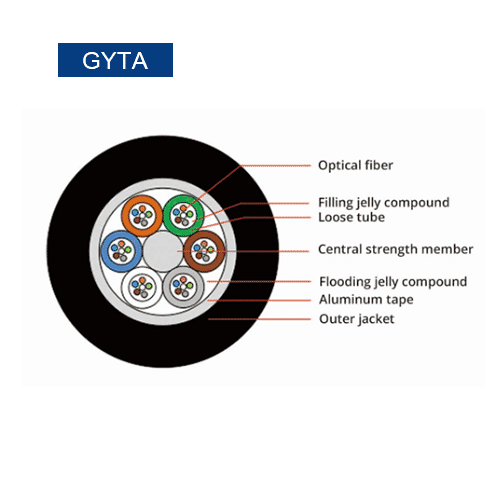

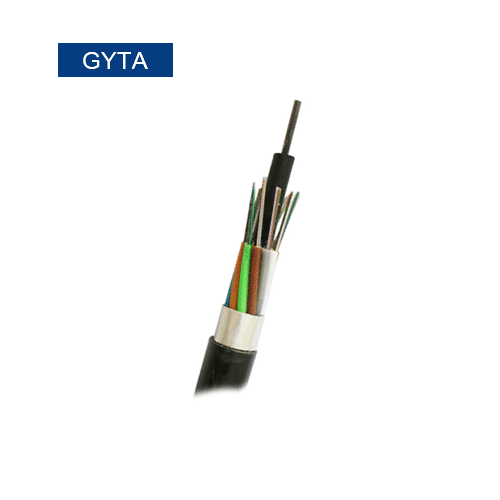

    GYTA

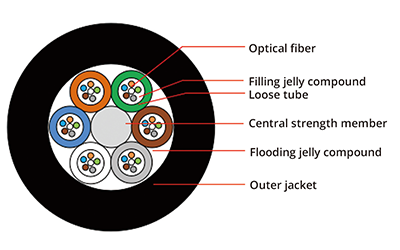

    GYFTY

                                   GYTA




                                    GYFTY



    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC



    ● Long-distance backbone network

    ● Urban ring network

    ● Access Network, FTTX

    ● Relay between communication machine rooms

    ● Building cable in integrated wiring


    Related Articles

    ●  What is the armored fiber optic cable

    ●  Optical Fiber and Optical Fiber Classification

    ●  What is Principle of Optical Fiber Communication


     Cable Type

     Product Description

     Application

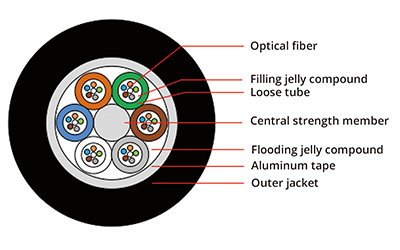

     GYTA

     Outdoor optical cable ,Metal strength member; Aluminum-polyethylene adhesive jacket

     Duct

     GYDTA

     Outdoor optical cable ,Optical fiber ribbon, Metal strength member; Aluminum-polyethylene adhesive jacket

     Duct

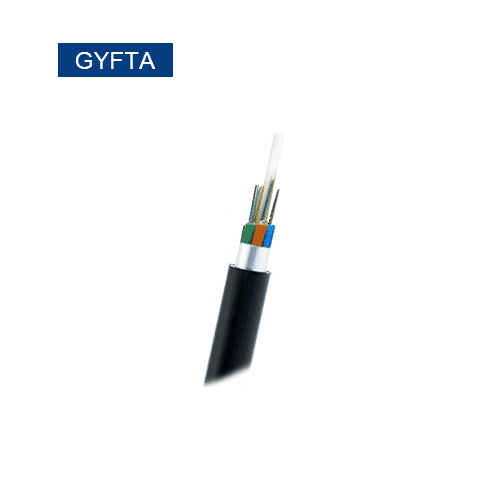

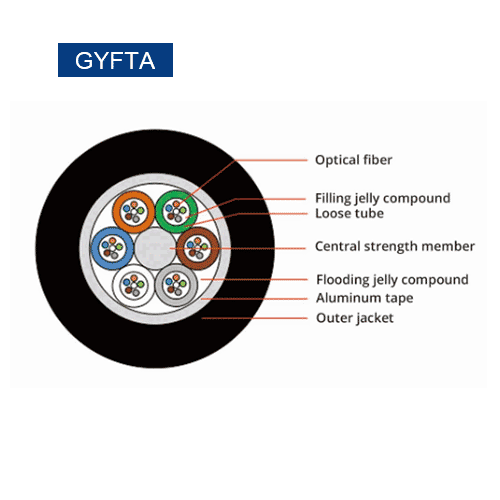

     GYFTA

     Outdoor optical cable ,Non-metal strength member ; Aluminum-polyethylene adhesive jacket

     Duct

     GYTZA

     Outdoor optical cable ,Metal strength member; Aluminum-LSZH adhesive jacket

     Duct

     GYDTZA

     Outdoor optical cable, Optical fiber ribbon, Metal strength member; Aluminum-LSZH adhesive jacket

     Duct

     GYDFXY

     Outdoor optical cable ,Optical fiber ribbon, Central tube structure;Non-metal strength member ; PE jacket

     Duct

     GYFY

     All dielectric reinforced optical cable Non-metal strength member; Glass yarn strength member ,PE outer jacket

     Aerial or Duct

     GYFTY

     Outdoor optical cable ,Non-metal strength member ; PE jacket

     Aerial or Duct

     GYFXY

     Outdoor optical cable ,Central tube structure;Non-metal strength member ; PE jacket

     Aerial or Duct

     GYXS

     Outdoor optical cable ,Central tube structure;Single steel wire armoring; Steel-polyethylene adhesive outer jacket

     Aerial or Duct

     GYDXTW

     Outdoor optical cable ,Optical fiber ribbon, Central tube structure;  Steel-polyethylene adhesive outer jacket

     Aerial or Duct

     GYDFXY

     Outdoor optical cable ,Optical fiber ribbon,Central tube structure;Non-metal strength member ; PE jacket

     Aerial or Duct

     GYFTZY63

     Outdoor optical cable , Non-metal strength member; HDPE inner jacket; Glass yarn strength member  LSZH Outer jacket

     Aerial or Duct

     GYFXZS

     Outdoor optical cable ,Central tube structure;Non-metal strength member ; Glass yarn strength memberSteel tapeLSZH  outer jacket

     Aerial or Duct

     GYFTZY

     Outdoor optical cable , Non-metal strength member; LSZH Outer jacket

     Aerial or Duct

     GYXTW

     Outdoor optical cable ,Metal strength member; PE jacket with steel wire

     Aerial or Duct

    Notes:

    1.Flooding jelly compound default

    2.The relevant technical parameters can be adjusted according to the customers’ demands;

    3.The block water way can be adjusted according to the customers’ demands;

    4.The design flame resistance,anti-rodent,termite resistant cable can be adjusted according to the customers’ demands.
