  • 48 cores 48 cores 48 cores 48 cores

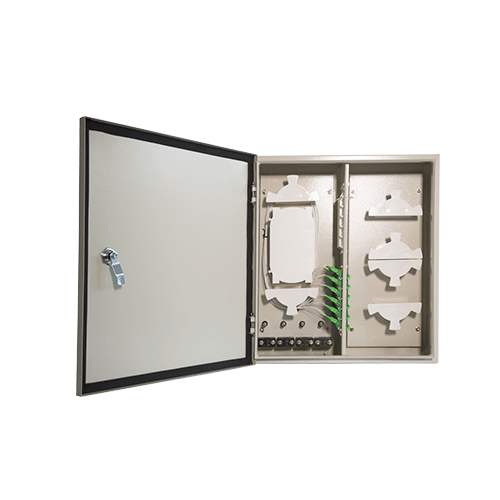

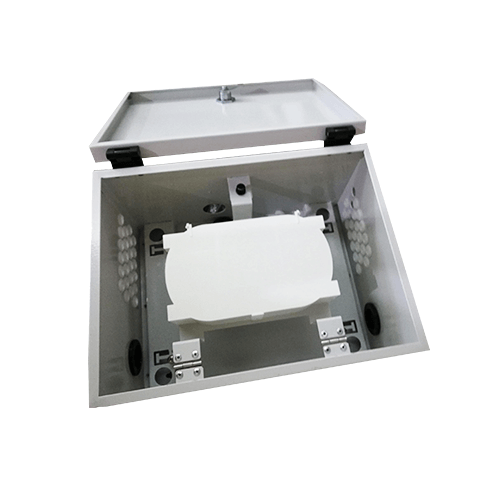

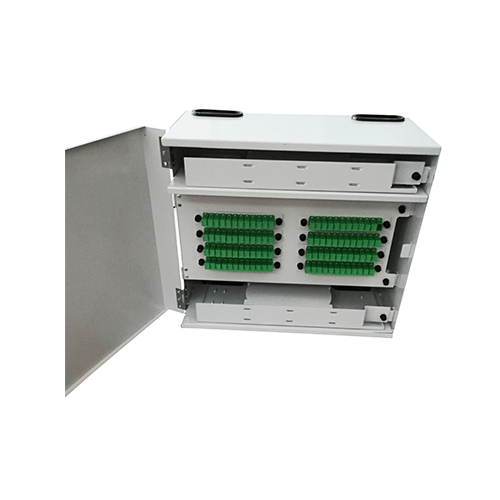

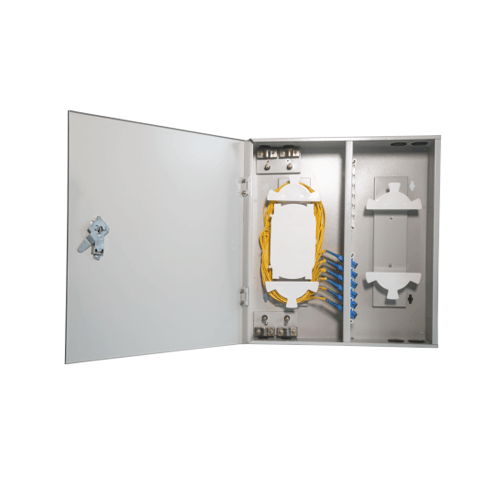

  • 48 cores Fiber Terminal Box

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Single door, double door optional, easy to operate

    ● Suitable for outdoor or indoor use

    ● A pplicable to SC, LC duplex, FC, ST and other adapters and pigtails

    ● Made of high-quality metal material, fully enclosed structure, beautiful appearance

    ● Effectively protect and manage cables

    ● Adopt anti-theft lock mechanism

    ● Integrated processing of feeder cable and lead-in cable, fiber connection, fixing, storage, and distribution

    ● The size and style of the cabinet can be customized according to customer requirements.


    Item

    Parameter

    Model No.

    SPDF-I48SCS-XX

    Mounting way

    Wall-mounting

    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times




    ● Telecommunication subscriber loop

    ● Fiber to the home(FTTH)

    ● LAN/WAN


    Part Number

    Product Description

    Model Size (mm)

    SPDF-I48XS-WMWM

    FTTH Terminal   Box Indoor wall   mounted 48 cores No panel without adaptors, pigtails and splitter Metal   Single door type WM

    380*320*115

    SPDF-I48SCS-WMA

    FTTH Terminal Box Indoor wall mounted 48cores Simplex   SC/Duplex LC type without adaptors, pigtails Metal Single door type A

    455*405*120

    SPDF-O48SCS-WMA

    FTTH Terminal Box outdoor wall mounted 48cores Simplex   SC/Duplex LC type without adaptors, pigtails Metal Single door type A

    455*405*120

    SPDF-I48SCT-WMM4

    Terminal Box Indoor wall mounted 48 ports Simplex   SC/Duplex LC type without adaptors, pigtails , Metal customized type

    350*400*200
