  • sfp 10g lr 1310nm 10km Module

    Features

    ● Hot Pluggable

    ● Low power consumption

    ● Optical interface compliant to IEEE 802.3ae 10GBASE-LR

    ● Electrical interface compliant to SFF-8431

    ● 1310nm DFB transmitter, PIN photo-detector

    ● Operating case temperature:

                                       Standard:  0 to +70°C

                                       Industrial: -40 to +85°C

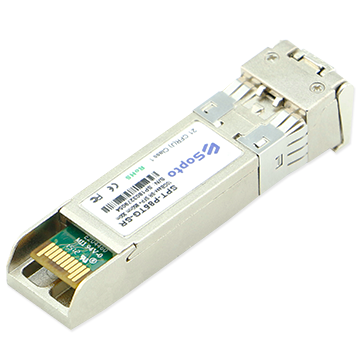

    sfp 10g lr module.png

    ● Applicable for 10km or 20km SMF connection

    ● All-metal housing for superior EMI performance

    ● Advanced firmware allow customer system encryption information to be stored in transceiver

    ● Cost effective SFP+ solution, enables higher port densities and greater bandwidth

    All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.


    Application

    ● 10GBASE-LR/LW Ethernet

    ● SONET OC-192 / SDH

    ● 10G Fibre Channel


    Ordering Information


    Part NO.

    Description

    Details

    SPT-P13TG-LR

    10Gbps SFP+ Optical Transceiver, 10km Reach, 0ºC ~ +70ºC, DDM

    PDF


    Absolute Maximum Ratings


    These values represent the damage threshold of the module.  Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.


    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Storage Temperature

    TS

    -40

    -

    +85

    °C

    Case Operating Temperature

    TA

    0

    -

    70

    °C

    Maximum Supply Voltage

    Vcc

    -0.5

    -

    4

    V

    Relative   Humidity

    RH

    0

    -

    85

    %

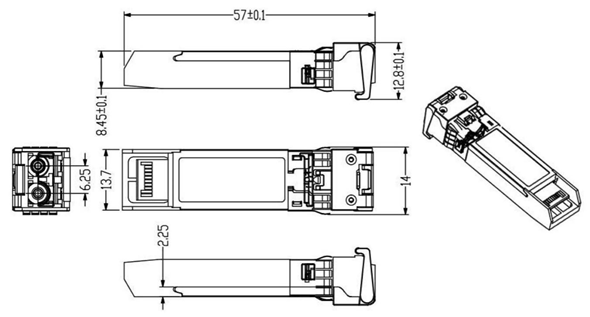

    Mechanical Dementions

    sfp.jpgsfp quality.png

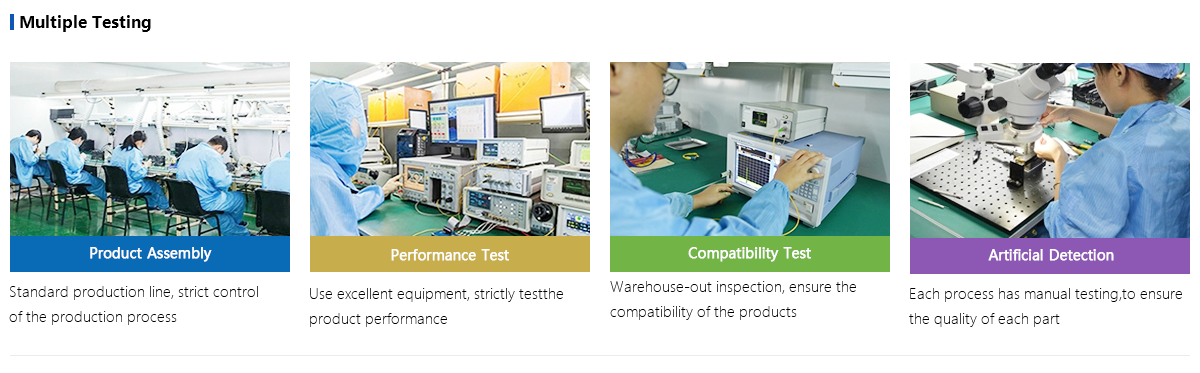

    sfp testing.pngsfp certification.png
