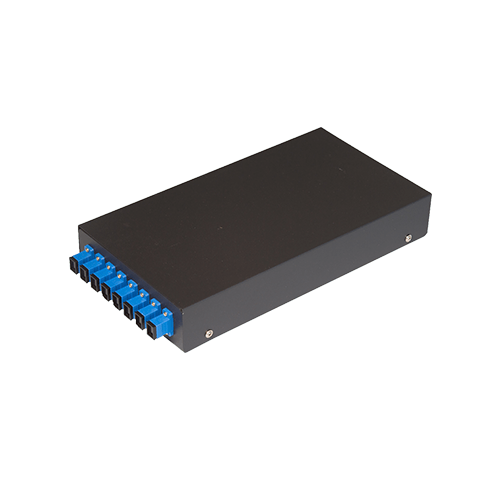

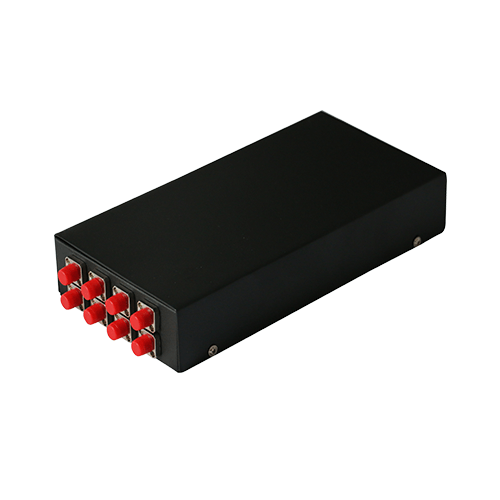

    FTTH Terminal box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Provide a protective connection between the fiber optic cable and the pigtail

    ● Insulate the cable metal parts from the cable and make it easy to ground

    ● Provide fiber terminal installation and end fiber storage space for easy installation and operation

    ● Available in metal and plastic.

    ● Optional wall-mounting, desktop or direct installation on the desktop

    ● Applicable to FC, SC, 2LC, ST and other adapters


    ● Telecommunication subscriber loop

    ● Fiber to the home(FTTH)

    ● LAN/WAN


    Part Number

    Product Description

    Size(mm)

    SPDF-I8FCT-WMB

    Terminal Box Indoor wall mounted 8 ports FC/ST type without adaptors, pigtails and splitter Metal type B

    260*140*40

    SPDF-I8SCT-WMB

    Terminal Box Indoor wall mounted 8 ports Simplex SC/Duplex LC type without adaptors, pigtails and  splitter Metal type B

    260*140*40
