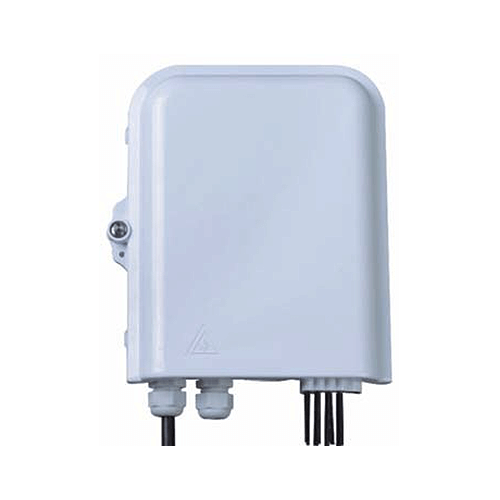

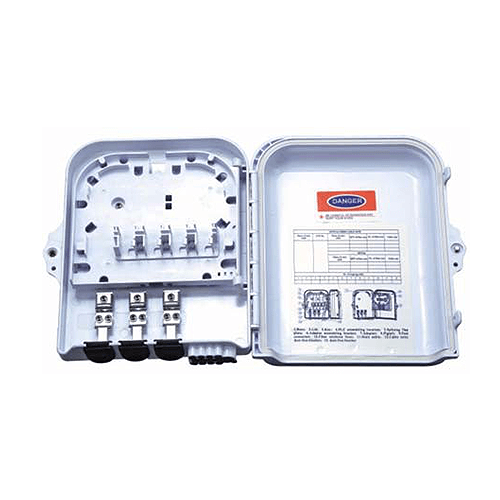

  • 8 cores Splitter Distribution Box

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Easy to operate

    ● Suitable for both outdoor and indoor use

    ● Suitable for SC and LC duplex adaptor and pigtail

    ● Total enclosed structure, be in nice shape

    ● Protects and manages cable effectively

    ● Secured with anti-theft locking mechanism

    ● Standard size, light weight

    ● High quality PC +ABS material

    ● Good properties of dust, and moisture proofing, IP65

    ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one


    Item

    Parameter

    Model No.

    SPDF-O8SCS-XXX

    Mounting way

    Wall-mounting or Pole mounting

    Work Temperature

    -40 °C ~+85 °C

    Relative Humidity

    ≤ 85% (+30 °C)

    Atmospheric Pressure

    70Kpa~106Kpa

    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times

    Withstand  Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash over. U ≥3000V (direct current)


    ● Telecommunication subscriber loop

    ● Fiber to the home (FTTH)

    ● LAN/WAN

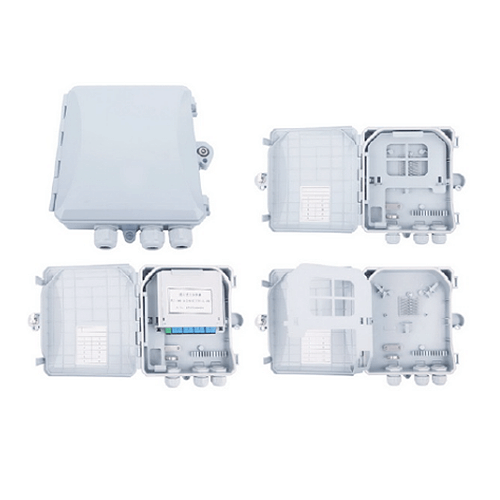

    Part Number

    Product Description

    Size(mm)

    SPDF-O8SCS-PMHPA

    Splitter Distribution Box Outdoor pole mounted 8 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic type A

    223*180*48

    SPDF-O8SCS-PMPA

    Splitter Distribution Box Outdoor Wall mounted 8 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic type A

    223*180*48

    SPDF-O8SCS-PMHPB

    Splitter Distribution Box Outdoor pole mounted 8 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic   type B

    223*180*48

    SPDF-O8SCS-PMPB

    Splitter Distribution Box Outdoor pole Wall mounted 8 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic type B

    223*180*48

    SPDF-O8XS-PPHPC

    Splitter Distribution Box Outdoor pole mounted 8 cores No panel available for plugin splitter installation, with hoop, without adaptors, pigtails and splitter Plastic type C

    199*174*53

    SPDF-O8XS-PPPC

    Splitter Distribution Box Outdoor Wall mounted 8 cores, No panel available for plugin splitter installation, without hoop , adaptors , pigtails and splitter Plastic  type C

    199*174*53
