  • Vertical Fiber Closure

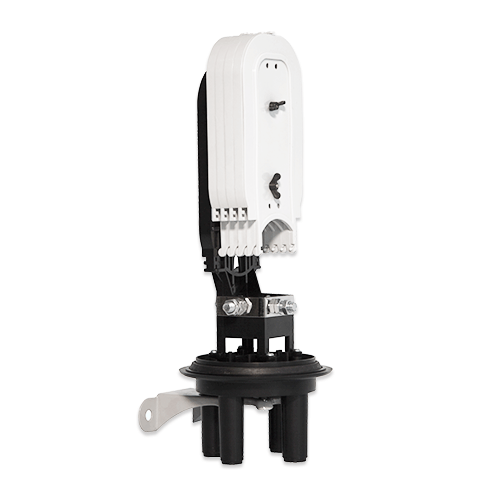

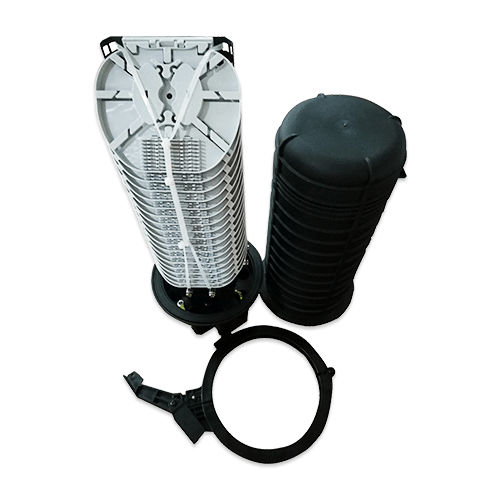

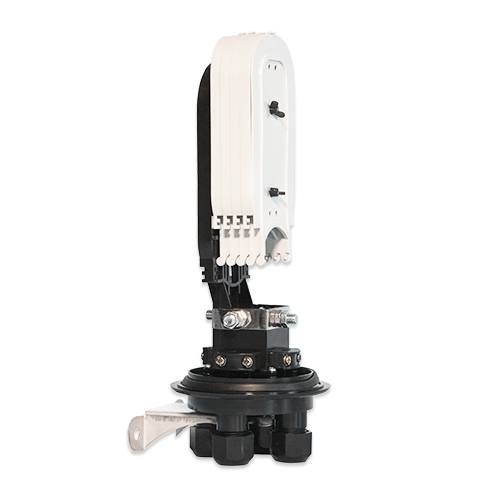

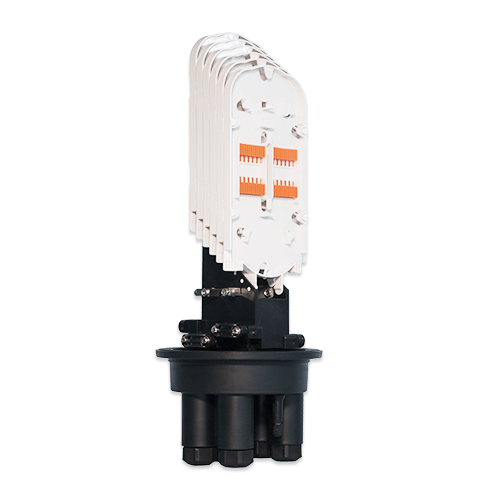

    Fiber Closure Vertical type box is suitable for pole-mounted installation, and is used for protective connection and fiber distribution between two or more optical cables. It is one of the commonly used equipment for user access points, and mainly completes the distribution optical cable and the household line optical cable. Sopto provide 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, 288 cores vertical fiber closures.
  • Contact Us
  • ● pole-mounted installation

    ● Cable inlet is sealed with heat shrinkable tube or threaded

    ● Made of imported high-strength engineering plastic (PP) and molded with high-pressure molding plastic.

    ● Light weight, high mechanical strength, corrosion resistance, lightning resistance and long service life.


    Item

    Parameter

    Type

    Fiber   Closure Vertical type

    Way to install

    Pole-mounting /Wall-mounting/Aerial   installation Wall-mounting

    Capacity of splice tray

    24

    Sealing structure

    Cable inlet is sealed with heat   shrinkable   tube or threaded

    Work Temperature

    -40 °C ~+60°C

    Voltage resistance strength

    15 kv dc, 1 minute no breakdown, no   flash over   phenomenon.

    Insulation resistance

    ≥2×104MΩ

    Tensile force

    ≥800N

    Sealing

    inflatable make the internal pressure   of 100 kpa, into   the water to observe more than 15 min, airless bubble   generation, air   pressure is not falling.

    Impact strength

    impact energy under16N.m, impact times   for 3 times, no cracks


    ● Communication, network system

    ● CATV Cable TV

    ● Cable network system, etc.


    Part Number

    Product Description

    Size(mm)

    SPFC-NV-24H-2/2A

    Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Hot melt  sealing  type A

    Φ190×435mm

    SPFC-NV-48H-2/2A

    Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT  Hot melt sealing  type A

    Φ190×435mm

    SPFC-NV-72H-2/2A

    Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT  Hot melt sealing  type A

    Φ190×435mm

    SPFC-NV-96H-2/2A

    Fiber Closure Vertical type  96 Cores Max , 24 Cores  Splice Tray 2 IN 2 OU Hot melt  sealing  type A

    Φ190×435mm

    SPFC-NV-24M-2/2B

    Fiber Closure Vertical type  24 Cores  Max , 24 Cores Splice Tray 2 IN  2 OUT Mechanical Splicing type B

    Φ190×410mm

    SPFC-NV-48M-2/2B

    Fiber Closure Vertical type  48   Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B

    Φ190×410mm

    SPFC-NV-72M-2/2B

    Fiber Closure Vertical type  72   Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B

    Φ190×410mm

    SPFC-NV-96M-2/2B

    Fiber Closure Vertical type  96 Cores Max ,   24 Cores Splice Tray 2 IN   2 OUT Mechanical Splicing type B

    Φ190×410mm

    SPFC-NV-24H-3/3C

    Fiber Closure Vertical type 24 Cores  Max , 24 Cores  Splice Tray 3 IN 3 OUT  Hot melt  sealing  type C

    Φ210*540mm

    SPFC-NV-48H-3/3C

    Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT  Hot melt sealing  type C

    Φ210*540mm

    SPFC-NV-72H-3/3C

    Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT  Hot melt sealing  type C

    Φ210*540mm

    SPFC-NV-96H-3/3C

    Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT  Hot melt sealing  type C

    Φ210*540mm

    SPFC-NV-24M-3/3D

    Fiber Closure Vertical type 24 Cores  Max , 24 Cores   Splice Tray 3 IN 3 OUT Mechanical Splicing type D

    φ230*435mm

    SPFC-NV-48M-3/3D

    Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D

    φ230*435mm

    SPFC-NV-72M-3/3D

    Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D

    φ230*435mm

    SPFC-NV-96M-3/3D

    Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D

    φ230*435mm

    SPFC-NV-24H-3/3E

    Fiber Closure Vertical type 24 Cores  Max , 24 Cores   Splice Tray 3 IN 3 OUT Hot melt sealing type E

    Φ210×540mm

    SPFC-NV-48H-3/3E

    Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E

    Φ210×540mm

    SPFC-NV-72H-3/3E

    Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E

    Φ210×540mm

    SPFC-NV-96H-3/3E

    Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E

    Φ210×540mm

    SPFC-NV-144H-3/3E

    Fiber Closure Vertical type 144 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E

    Φ210×540mm

    SPFC-NV-24H-4/4F

    Fiber Closure Vertical type 24 Cores  Max , 24 Cores   Splice Tray 4 IN  4 OU Hot melt sealing type F

    Φ230×440mm

    SPFC-NV-48H-4/4F

    Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT  Hot melt sealing type F

    Φ230×440mm

    SPFC-NV-72H-4/4F

    Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT  Hot melt sealing type F

    Φ230×440mm

    SPFC-NV-96H-4/4F

    Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT  Hot melt sealing type F

    Φ230×440mm

    SPFC-NV-144H-4/4F

    Fiber Closure Vertical type144 Cores Max , 24 Cores Splice Tray 4 IN  4 OUT  Hot melt sealing type F

    Φ230×440mm
