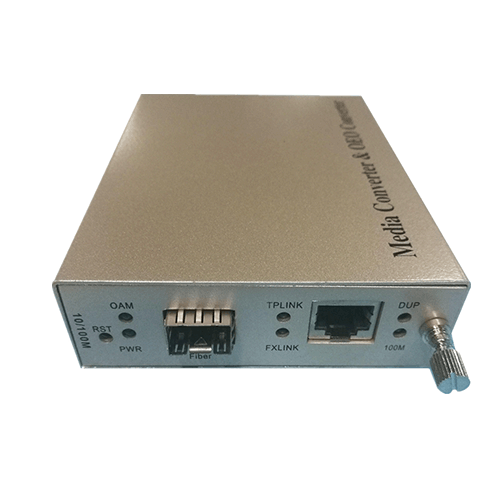

  • Point to point Manageable Fiber Media Converter Point to point Manageable Fiber Media Converter
  • Point to point Manageable Fiber Media Converter

    10/100M, 10/100/1000M IEEE802.3ah OAM manageable Ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened.
  • Contact Us
  • ● Built-in IP-based Web Interface

    ● Supporting remote and local management

    ● Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode

    ● Store and Forward mechanism

    ● Manual IP address setting/DHCP client for IP address assignment

    ● SNMP v1 / v2c monitor / private Enterprise MIB

    ● Event trap and SNMP trap support

    ● Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port

    ● Supports Port Status / Ethernet Statistics on both TP and Fiber interface

    ● Supports Maximum frame size to 9K bytes

    ● Loop detection / Broadcast / Multicast / Unicast storm control

    ● Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN

    ● 802.1p Tag Priority / IP address priority / IP DSCP option in

    ● Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies

    ● TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

    ● 16 TCP / UDP Filter groups

    ● Firmware upgrade via remote Web interface

    ● LED indicators for easy network diagnosing

    ● Internal Power supply optional


    ● LAN/WAN

    ● Access Control Systems

    ● 10/100/1000 Mbps Ethernet

    ● High Speed Computer Links

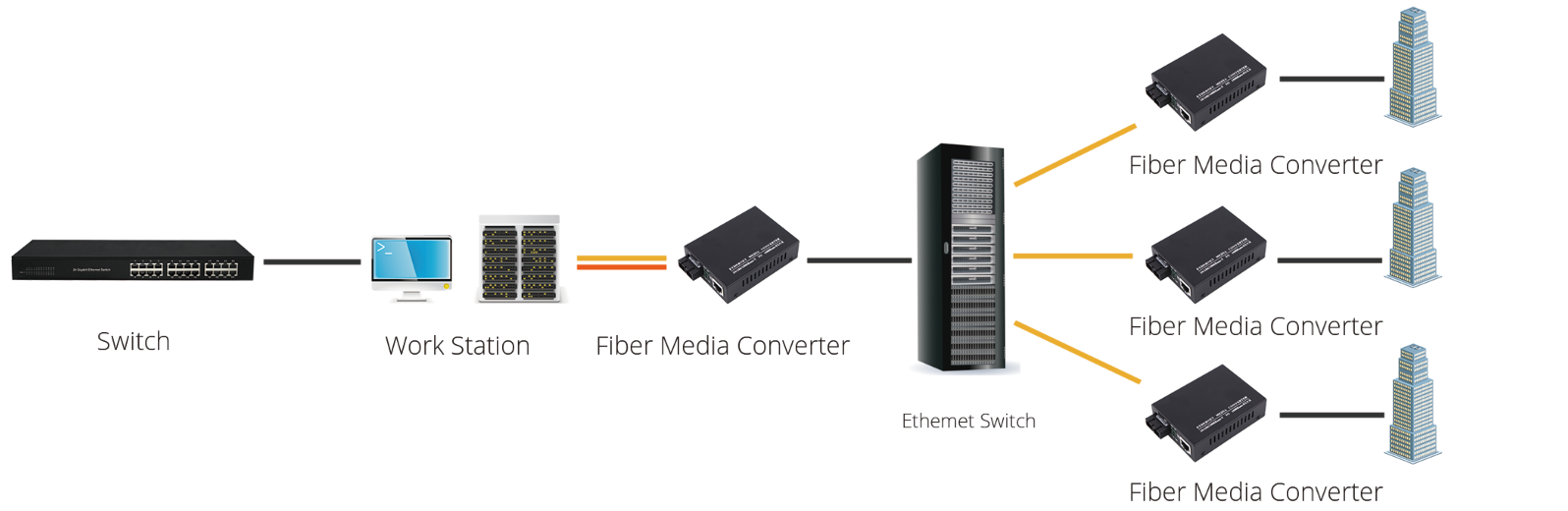

    Fast Ethernet application

    fast ethernet application.png

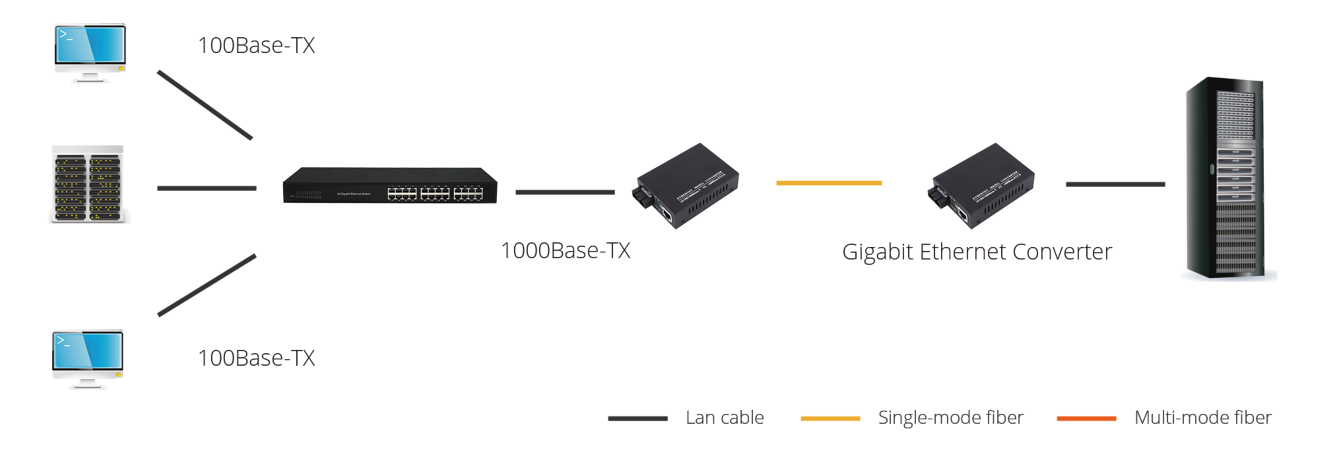

    Gigabit Ethernet Application

    gigabit ethernet application.png

    Part Number

    Fiber Port type

    Wavelengths

    (nm)

    Fiber Port Rate

    (Mbps)

    RJ45 Rate

    (Mbps)

    Distance

    (km)

    Power Supply

    Temp.

    SPM-IMT43-N10S

    1*9,SC

    1310

    100

    10/100

    10

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT43-N20S

    1*9,SC

    1310

    100

    10/100

    20

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT43-N40S

    1*9,SC

    1310

    100

    10/100

    40

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT43-N60S

    1*9,SC

    1310

    100

    10/100

    60

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT435-N20S

    BIDI 1*9 ,SC

    1310Tx/1550Rx

    100

    10/100

    20

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT453-N20S

    BIDI 1*9 ,SC

    1550Tx/1310Rx

    100

    10/100

    20

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT435-N40S

    BIDI 1*9 ,SC

    1310Tx/1550Rx

    100

    10/100

    40

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT453-N40S

    BIDI 1*9 ,SC

    1550Tx/1310Rx

    100

    10/100

    40

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT435-N60S

    BIDI 1*9 ,SC

    1310Tx/1550Rx

    100

    10/100

    60

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT453-N60S

    BIDI 1*9 ,SC

    1550Tx/1310Rx

    100

    10/100

    60

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT4X-PX

    SFP slot

    -

    100

    10/100

    -

     Internal 220V AC

    0 ~ 50°C

    PM-IMT4X-PX

    SFP slot

    -

    100

    10/100

    -

     External 220V AC

    0 ~ 50°C

    SPM-IMT2X-PX

    SFP slot

    -

    1000

    10/100/1000

    -

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT23-N10S

    1*9,SC

    1310

    1000

    10/100/1000

    10

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT23-N20S

    1*9,SC

    1310

    1000

    10/100/1000

    20

     Internal 220V AC

    0 ~ 50°C

    SPM-IMT25-N40S

    1*9,SC

    1550

    1000

    10/100/1000

    40

     Internal 220V AC

    0 ~ 50°C
