Products
To Create Value for Our Customers with Good ProductsContact Us
Indoor Fiber Cable
● 1 ~ 72 cores
● bunched or ribbon fiber
● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;
● LSZH,PVC outer jacket material optional
● High-strength aramid reinforcement with good tensile properties
● Tight-set dry structure for easy construction and maintenance
● Small outer diameter, light weight, flame retardant, easy to peel off, and high flexibility
● Tight sleeve optical fiber, easy to peel;
● The outer jacket is corrosion-resistant, waterproof, flame retardant and environmentally friendly
Hot Model
Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC
● Access Network, FTTX
● Relay between communication machine rooms
● Building cable in integrated wiring
● Used for interconnection between instruments and communication devices
Related Articles
● What is the armored fiber optic cable
● Optical Fiber and Optical Fiber Classification
● What is Principle of Optical Fiber Communication
Cable Type | Product Description | Application |

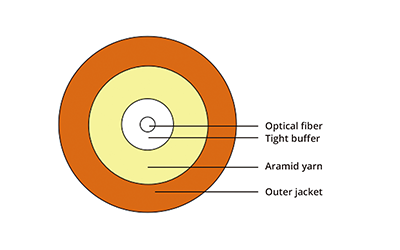

GJFJH | Indoor fiber patch cord Cable Aramid yarn strength member; LSZH jacket (1~72 cores) | Indoor |

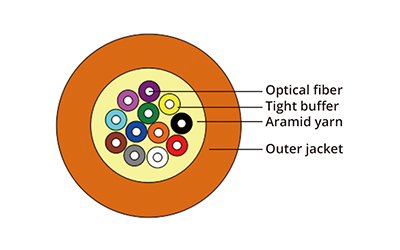

Cabling GJPFJH | Indoor Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (1~72 cores) | Indoor |

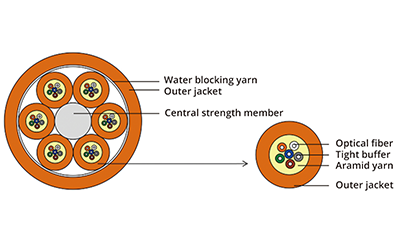

CombinedCabling GJPFJH | Indoor Combined Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (2~72 cores) | Indoor |

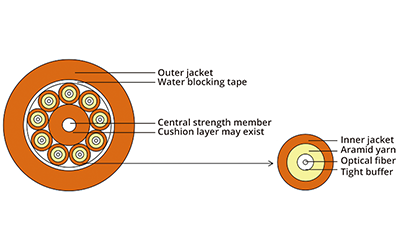

Break-out Cable GJBFJH | Indoor break-out Cable Tight buffer fiber structure; Aramid yarn strength member; water blocking tape; LSZH jacket (2~72 cores) | Indoor |
Notes:
1.The relevant technical parameters can be adjusted according to the customers’ demands;
2.PVC and other material can be used as sheath according to the customers, demands.
