  • Fiber Pigtails

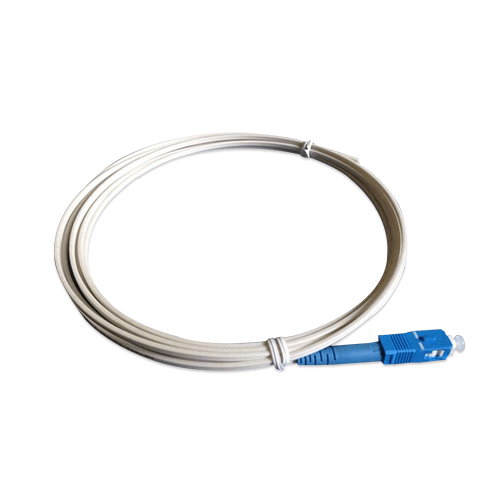

    Fiber pigtail refers to a half-jumper-like connector used to connect fiber and fiber couplers. It includes a jumper connector and a length of fiber.SOPTO can supply FTTH drop cable pigtails which are made from standard FTTH drop cables. The FTTH drop cable Pigtails are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.
  • Contact Us

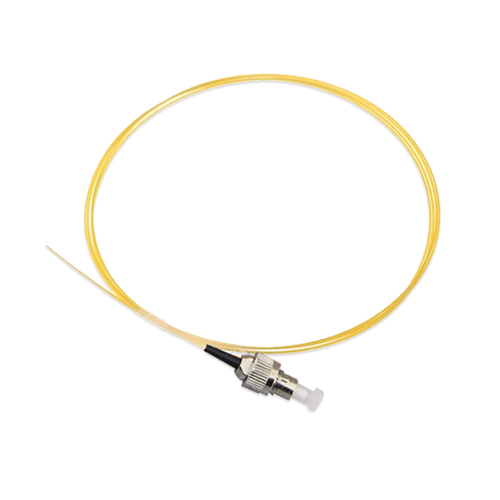

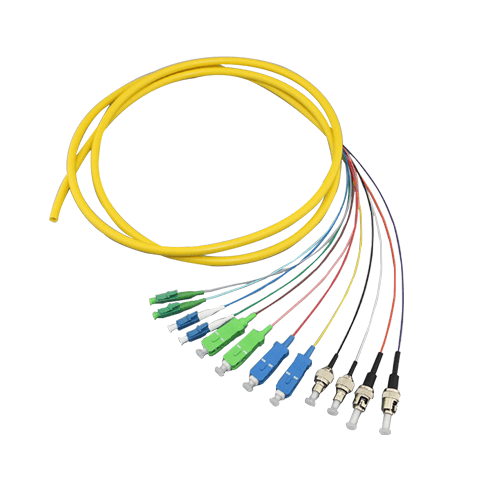

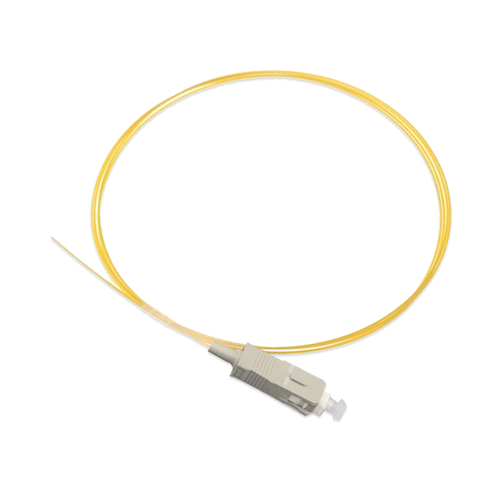

  • Nomal Pigtails

    ● End-Face Type: PC/UPC/APC

     Fiber Diameter: 0.9mm, 2.0mm or 3.0mm

    ● Available for simplex and duplex

    ● The outer jacket can be PVCLSZHArmored etc

    ● Available for different connectors: SC, LC, FC, ST, MPO,MTP,MU,DIN,D4,E2K etc

    ● Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available

    ● Low insertion loss and high return loss, high dense connection, easy for operation

    ● Customer lengths and connectors are available upon request


     Parameter

     Unit

     FC, SC, LC, ST, MU, DIN, D4, MPO,   SC/APC, FC/APC, LC/APC, MU/APC Duplex

     SM (9/125 SMF-28 or equivalent  O S1)

     MM  (50/125,62.5/125(OM2&OM1),50/125,10G(MM)  OM3

     PC

     UPC

     APC

     PC

     Insertion loss(typical)

     dB

     ≤0.3

     ≤0.2

     ≤0.25

     ≤0.2

     Return loss

     dB

     ≥45

     ≥50

     ≥60

     ≥30

     Operating wavelength

     nm

     1310, 1510

     Exchangeability

     dB

     ≤0.2

     Vibration

     dB

     ≤0.2

     Operating temperature

     ℃

     -40~75

     Storage temperature

     ℃

     -45~85

     Cable Type



     Simplex or duplex(zip cord) φ3.0,   φ2.0, φ0.9,PVC or LSZH


    Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs


    Download


    ● LAN

    ● FTTH

    ● Computer networks

    ● Telecommunication networks

    ● ODF of optical transmission system

    ● High speed data transmission network

    ● High quality graphic transmission network

    ● Connection of optical transmission equipment


    Related Articles

     What is CPRI Cable

     Difference between PC, UPC and APC

     Differences of OM1, OM2, OM3 and OM4 cables

     What is Armoured Patch Cord

     How to Choose Fiber Optical Patch Cord


    Ordering Info. for Pigtail

    Part NumberSPP - SC - U1D0.90.5VA

                                    1  2  3   4      5      67 8
    ProductDescriptionPigtail   Simplex SC/UPC G.652D 0.9mm 0.5M length PVC Armored

    1 - Connector A

    LC SC FC ST etc

    2 – Endface A

    UUPC   polish;  PPC polish;  AAPC polish

    3- Fiber Count

    1: Simplex;  2: Duplex; 12:12 cores;  24:24 cores etc

    4 - Fiber Mode

    M1: OM1; M2: OM2;  M3: OM3;    M3H:OM3(300);   M4: OM4;  D: G.652D; A1: G657.A1

    5 - Diameter

    09:0.9mm 20:   2.0mm ;  30: 3.0mm ;

    6- Length

    0.5 : Cable total length 0.5M etc

    7 - Cable Jacket Materials

    V:PVC;  H:LSZH;    O:OFNR;  F:OFNP;    Y:PE

    8 - Armored

    Null: Without armored   A: Armored

    Cable Jacket Color

    Default Pigtail Color:Aqua ( OM3,OM4);Orange (OM1,OM2) ; Yellow   (SM);
