  • CATV EPON ONU CATV EPON ONU CATV EPON ONU CATV EPON ONU
  • CATV EPON ONU WIFI Optional

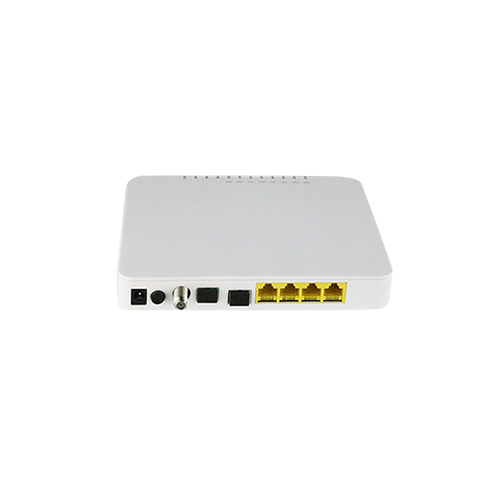

    CATV EPON ONU series is fiber to the home multi-service access EPON ONU. It’s based on the mature, stable, high cost performance EPON technology and has gigabit Ethernet switching, WDM and HFC technology.Single Fiber series adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm. Dual Fiber series adopts dual fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .
  • Contact Us
  • ● GE or FE LAN ports

    ● In compliant with IEEE802.3ah Standard

    ● Wi-Fi type optionalWi-Fi series meet 802.11 n/b/g technical standards

    ● Single FiberBuilt-in FWDM or Dual fiber

    ● Support AGC function

    ● Support port flow control

    ● Support ACL and SNMP to configure data packet filter flexibly


    onuonu


    EPON OUN User Manual


    Download linkhttps://pan.baidu.com/s/1nedm5Rhmas7GpIDoeXnpLQ


    Codegfva

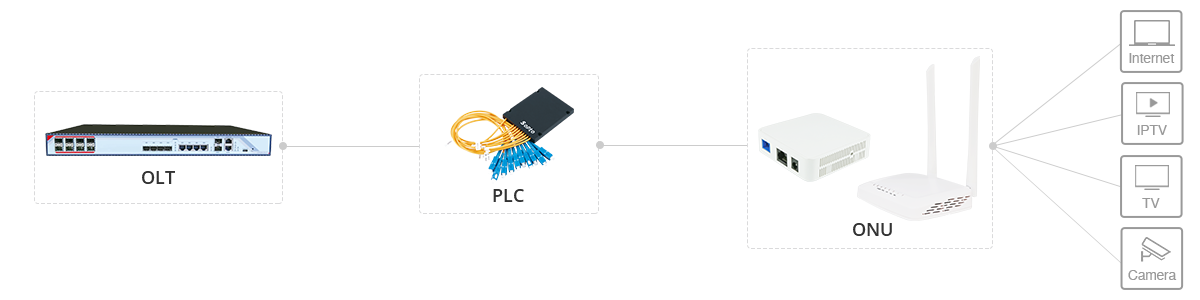

    Applications in FTTH



    Related Articles

    ●  What is the PON+EOC network solution

    ●  Introduction and Comparison EPON and GPON



    Brief Information

    Product Model

    Descriptions

    Single Fiber,Built-in FWDM

    4FE+CATV

    Single Fiber

    SPU-E4100A-HR

    4*10/100M Ethernet interface,1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter

    4FE+CATV+WIFI

    Single Fiber

    SPU-E4100AW-HR

    4*10/100M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter

    4GE+CATV

    Single Fiber

    SPU-E4200A-HR

    4*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter

    4GE+CATV+WIFI

    Single Fiber

    SPU-E4200AW-HR

    4*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter

    Dual Fiber

    4FE+CATV

    Dual Fiber

    SPU-E4101A-HR

    4*10/100M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter

    4FE+CATV+WIFI

    Dual Fiber

    SPU-E4101AW-HR

    4*10/100M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter

    4GE+CATV

    Dual Fiber

    SPU-E4201A-HR

    4*10/100/1000M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter

    4GE+CATV+WIFI

    Dual Fiber

    SPU-E4201AW-HR

    4*10/100/1000M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
