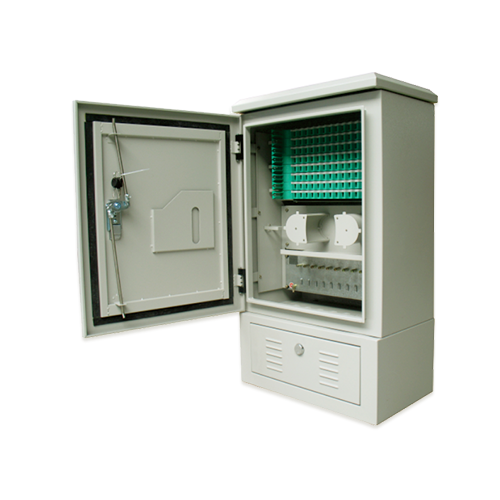

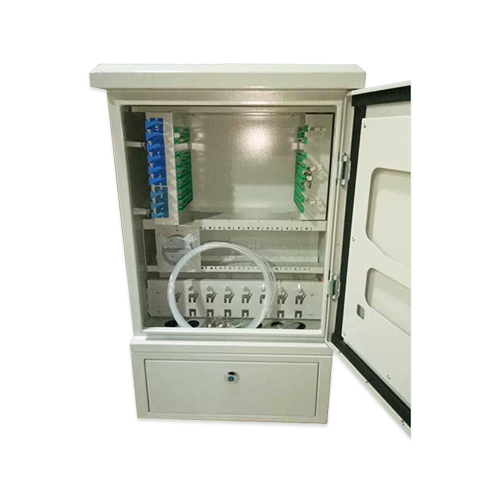

  • 96 cores Outdoor Optical Cabinet

    Outdoor optical cabinet is mainly used for cross-connecting outdoor optical cables from offices to optical distribution node. This cabinet offers ideal environment for fibers to be spliced, cable termination, fiber distribution, dispatch and well organized under outdoor environment. Outdoor optical cabinet provides safe, reliable and flexible optical fiber/cable circuit management, suitable for various communication networks, especially for users’ optical fiber access network engineering.
  • Contact Us
  • ● The protection grade reaches IP65

    ● Made of powder coated iron or SMC Material (optional)

    ● Excellent anti-erosion, waterproof and dustproof performance

    ● Multiple installation options, including floor and wall installations

    ● Each incoming cable will be fixed properly with earth provided

    ● Available for normal fiber cable and fan-out fiber cable

    ● Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance

    ● Integrated splice and distribution unit is adopted. The drawer type distribution module can be easy

    changed according to the requirements, which is very easy for future maintenance.


    Specifications :

    ● Operating temperature:-40+60

       Relative humidity:≤93%+40

     Atmospheric pressure :70KPa106Kpa

    ● The box body protection level reaches the IP65 level of GB4208 standard

    ● The insulation resistance between the high voltage protective earthing device and the metal working parts of the cabinet is not less than 20000MΩ/500V(DC)

    ● The strength of the resistance between the high pressure protective earthing device and the metal working parts of the cabinet is not less than 3000V(DC)/1min non-puncture, and no arc-over

    ● Connector attenuation (including insertion, interchange and repetition): ≤ 0.2dB

    ● Connector insertion and durability> 1000 times





    ● Communications

    ● Networks

    ● Industrial control

    ● Building automation



    Model No.

    Description

    Size(H*W*D)

    SPDF-O96SCC-FPYMA

    Cross-connection Cabinet Outdoor floor type 96 cores Simplex SC/Duplex LC type available for plugin splitter installation  with splice tray, without adaptors, pigtails and splitter Metal type A

    850*530*310

    SPDF-O96SCC-FYSA

    Cross-connection Cabinet Outdoor floor type 96 cores Simplex SC/Duplex LC type with splice tray, without adaptors, pigtails and splitter SMC type A

    1030*550*300

    SPDF-O96SCC-WYSA

    Cross-connection Cabinet Outdoor wall mounted 96 cores Simplex SC/Duplex LC type with splice tray, without adaptors, pigtails and splitter SMC type A

    750*550*300

    SPDF-O96SCC-WPYMA

    Cross-connection Cabinet  Outdoor wall mounted 96 cores Simplex SC/Duplex LC type available for plugin splitter installation  with splice tray, without adaptors, pigtails and splitter Metal type   A

    650*530*310

    SPDF-O96SCC-FZSA

    Cross-connection Cabinet Outdoor floor type 96 cores Simplex SC/Duplex LC type with special splice tray, without adaptors, pigtails, splitter SMC type A

    1030*550*300

    SPDF-O96SCC-FPZMA

    Cross-connection Cabinet Outdoor floor type 96 cores Simplex SC/Duplex LC type available for plugin splitter installation with special splice tray, without adaptors, pigtails, splitter Metal type A

    850*530*310

    SPDF-O96SCC-WPZMA

    Cross-connection Cabinet Outdoor wall mounted 96 cores Simplex SC/Duplex LC type available for plugin splitter installation with special splice tray, without adaptors, pigtails, splitter Metal type A

    650*530*310

    SPDF-O96SCC-WZSA

    Cross-connection Cabinet  Outdoor wall mounted 96 cores Simplex SC/Duplex LC type with special splice tray, without adaptors, pigtails, splitter SMC type A

    750*550*300
