  • Fiber Optic Cable

    Fiber Optic Cable, also known as an optical fiber cable, is an assembly similar to an electrical cable, but containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building.         [email protected]



    Outdoor fiber optic cable, suitable for outdoor application. It is durable and can withstand the wind, the sun, the cold. the outer packaging is thick, and it has some mechanical properties such as pressure resistance, corrosion resistance and tensile strength. The outdoor optical cable is suitable for aerial, duct, direct buried and submarine etc.

    Type

    PN

    Description

    Submarine Fiber Cable

    GYTA5333

    2 ~ 288 cores, Outdoor optical cable, Metal strength member; Aluminum-polyethylene adhesive and

    Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoring;PE Outer jacket

    GYFTY33

    2 ~ 288 cores, Non-metal strength member, PE inner jacket; Single smaller round steel wire armoringPE Outer jacket

    Air Blowing Fiber Cable

    GCYFY

    2 ~ 144 cores, Tiny tube; Semi-dry water-blocking; HDPE jacket

    Direct Buried Fiber Cable

    GYTA53

    2 ~ 576 cores, Metal strength member; Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket

    GYFTA53

    2 ~ 576 cores, Non-metal strength member, Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket

    GYFTY53

    2 ~ 576 cores, Non-metal strength member, PE inner jacket; Steel-PE adhesive outer jacket

    Duct Fiber Cable

    GYTA

    2 ~ 576 cores, Metal strength member; Aluminum-polyethylene adhesive jacket

    GYFTY

    2 ~ 576 cores, Outdoor optical cable, Non-metal strength member; PE jacket

    Aerial Fiber Cable

    GYFTC8A53

    2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Non-metal strength member, Aluminum-polyethylene

    adhesive inner jacket, Steel-polyethylene adhesive outer jacket

    GYFTC8Y53

    2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Non-metal strength member; PE inner jacket;

    Steel-polyethylene adhesive outer jacket

    ADSS

    2 ~ 288 cores, Single or Double protector All dielectric Self-Supporting optical cable, Non-metal strength

    member; PE inner jacket; PE outer jacket; 50~100M span

    GYXTC8S

    2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Central tube structure; Metal strength member;

    Steel-polyethylene adhesive jacket

    GYTC8S

    2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable, Metal strength member; Steel-polyethylene adhesive jacket

    GYXTC8Y

    2 ~ 288 cores, Figure ‘8’ Self-Supporting optical cable; Central tube structure; Metal strength member; PE jacket;

    GYTC8A

    2 ~ 288 cores, Figure ‘8 ’Self-Supporting optical cable, Metal strength member, Aluminum-polyethylene adhesive jacket

    GYTS

    2 ~ 288 cores, Metal strength member; Steel-polyethylene adhesive jacket

    GYFTY

    2 ~ 288 cores, Non-metal strength member ; PE jacket



    Indoor fiber optical cable, suitable for indoor application, is a fiber optic cable laid in a building, and is mainly used for communication equipment, computers, switches and end user equipment. FTTH Drop Cable is commonly known as indoor hanging wiring cable. FTTH Drop Cable is mostly single-core and double-core structure. It can also be made into a 4,8 or 12 cores structure with a cross-section of 8-shaped.

    Type

    PN

    Description

    Indoor Fiber Cable

    GJFJH

    Indoor fiber patch cord Cable Aramid yarn strength member; LSZH jacket (1~72 cores)

    Cabling GJPFJH

    Indoor Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (1~72 cores)

    Combined Cabling

     GJPFJH

    Indoor Combined Cabling Cable Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket (2~72 cores)

    Break-out Cable

     GJBFJH

    Indoor break-out Cable Tight buffer fiber structure; Aramid yarn strength member; water blocking tape; LSZH jacket (2~72 cores)

    FTTH Drop Cable

    GJXFH

    1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP; LSZH jacket; Non-Self-Supporting

    GJXH

    1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH jacket; Non-Self-Supporting

    GJYXCH

    1 ~ 72 cores, Outdoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH jacket; Self-Supporting

    GJYXFCH

    1 ~ 72 cores, Outdoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP; LSZH jacket; Self-Supporting

    Double core

    independent GJXH

    1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH jacket;

     Non-Self-Supporting; Double core independent

    Double core

    independent GJYXCH

    1 ~ 72 cores , Outdoor Cabling Bow-Type Drop Cable , Metal strength member; LSZH jacket; Self-Supporting;

    Double core independent

    GJYFJCH

    1 ~ 72 cores, Rotundity Drop Cable, Tight buffer fiber structure; Aramid yarn strength member; LSZH jacket; Self-supporting

    GJXFV

    1 ~ 72 cores, Indoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP; PVC jacket; Non-Self-Supporting

    GJYXFH03

    1 ~ 72 cores, Duct Bow-Type Drop Cable, Non-metal strength member; LSZH inter jacket; Water blocking tape; PE outer jacket

    GJYXFDCH

    1 ~ 72 cores, Outdoor Cabling Bow-Type Drop Cable, Optical fiber ribbon, Non-metal strength member KFRP;

    SZH jacket; Self-Supporting

    GJYFXTCBY

    1 ~ 72 cores, Self-Supporting optical cable; Non-metal strength member GFRP; Water blocking yarn; PE jacket; Oblateness figure

    GJYXDCH

    Outdoor Cabling Bow-Type Drop Cable , Optical fiber ribbon,Metal strength member ; LSZH jacket; Self-Supporting


    Product Certificate


    Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system,

    OHSAS18001 occupational health safety management system,and its fiber optical cable meet

    the requirements of European CE, RoHs, Chinese TLC



    Packaging & Shipping

    Packaging and Shipping.png

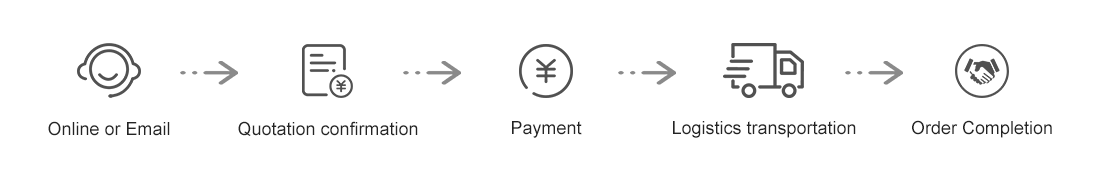

    Transaction Process

    Transaction Process.png

    Sopto can provide Outdoor Fiber Optical Cables , Indoor Fiber Optical Cables , FTTH Cables , If you want to know more about the exact information of the specified fiber optical cable, Please contact us.
