  • 24 cores
  • 24 cores Splitter Distribution Box

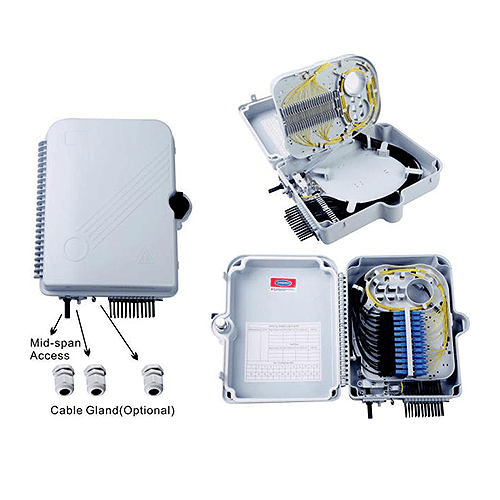

    This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
  • Contact Us
  • ● Easy to operate

    ● Suitable for both outdoor or indoor use

    ● Suitable for SC and LC duplex adaptor and pigtail

    ● Total enclosed structure, be in nice shape

    ● Protects and manages cable effectively

    ● Secured with anti-theft locking mechanism

    ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one


    Item

    Parameter

    Model No.

    SPDF-O24SCS-XXX

    Mounting way

    Wall-mounting or Pole mounting

    Insert Loss

    ≤ 0.2dB

    UPC Return Loss

    ≥ 50dB

    APC Return Loss

    ≥ 60dB

    Insert and Pull out Life

    ≥ 1000 times


    ● Telecommunication subscriber loop

     Fiber to the home (FTTH)

     LAN/WAN


    Part Number

    Product Description

    Size(mm)

    SPDF-O24SCS-PMPA

    Splitter Distribution Box Outdoor Wall mounted   24 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic type A

    317*237*101

    SPDF-O24SCS-PMHPA

    Splitter Distribution Box Outdoor pole mounted 24 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic type A

    317*237*101

    SPDF-O24SCS-PAHMA

    Splitter Distribution Box Outdoor pole mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation with hoop, without adaptors, pigtails and splitter Metal Single door type A

    320*370*90

    SPDF-I24SCS-WAMA

    Splitter Distribution Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type A

    320*370*90

    SPDF-O24SCS-WAMB

    Splitter Distribution Box Outdoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type B

    320*370*90

    SPDF-I24SCS-WAMC

    Splitter Distribution Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Double door type C

    350*300*80
