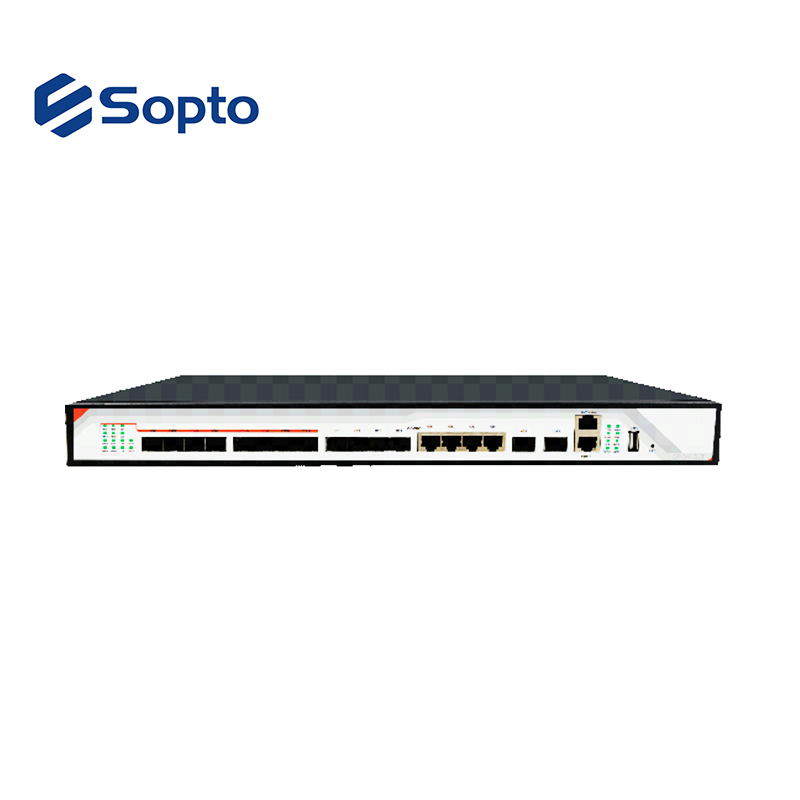

  • Standalone 8PON GPON OLT

    SOPTO’s 8 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 8 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 1024 GPON terminals accessing in for the most.
  • Contact Us
  • ● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry

    ● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol

    ● 1U height 8PON OLT product in compact design of Pizza-Box

    ● Layer 2 Switching Function

    ● Layer 3 Switching Functionin development

    ● QOS Guarantee

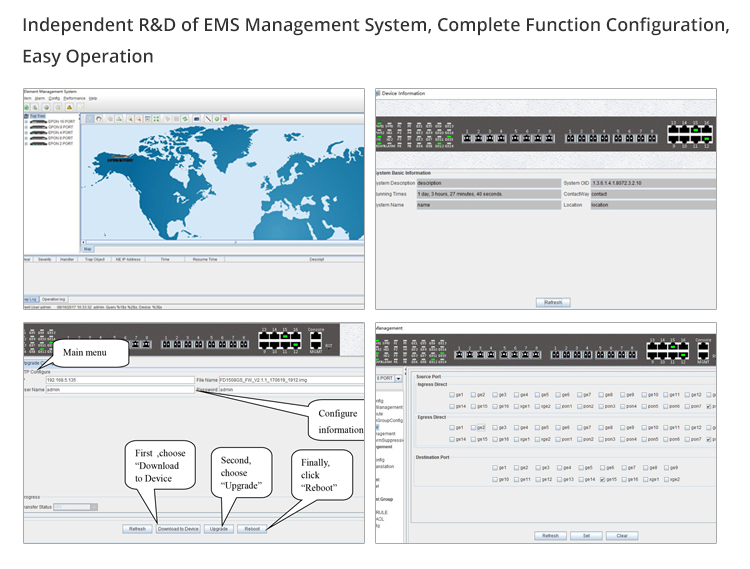

    ● Easy-to-Use Management System


    Specification

    Size

    440mm(L)*391mm(W)*44mm(H)

    Weight

    4kg

    Backplane Bandwidth

    96G

    Maximum power

    70W

    Working environment

    Working temperature

    050

    Storage temperature

    -4085℃ Relative

    Relative humidity

    590% (Non-condensing)

    Power supply

    220VAC

    AC: 90V240V47/63Hz

    -48DC

    DC:-36V-72V

    Management Rack

    Type

    1U 19-inch standard box

    Slot

    2 power module slot

    USB Port

    1 Type-C interface

    Management Port

    1 100/1000BASE-Tx out-band Ethernet port

    1 CONSOLE local management port

    Uplink Port

    COMBO port

    4 10/100/1000M auto-negotiation Ethernet ports

    4 SFP interfaces

    10-Gigabit

    2 SFP+ interfaces

    PON Port

    Quantity

    8

    Physical interface

    SFP slot

    Interface type

    ITU-TG.984.2 Class B+/Class C+

    Max splitting ratio

    1:128

    PON Port attribute



    Transmission distance

    20KM

    Port rate

    Downstream:2.5Gbps        Upstream: 1.25Gbps

    Wavelength

    Forwarding:   1490nm       Receiving: 1310nm

    Interface type

    SC/UPC

    Fiber type

    9/125μm SMF (Single Mode Fiber)

    Light transmission power

    Class B+  +1.5+5dBm

    Class C+  +3+7dBm

    Receiving sensitivity

    Class B+  -28dBm

    Class C+  -30dBm

    Saturation power

    Class B+  -8dBm

    Class C+  -12dBm

    Network management method

    Support CLISNMPTELNETSSHWEB


    ———————————————————————————————————————————————————————————

    onuonu


    GPON OLT Factory Configuration (User Manual and EMS)


    Download link:https://pan.baidu.com/s/1sLCKMm9C_A0ZjNl-n1V2dA


    Code:kjgl

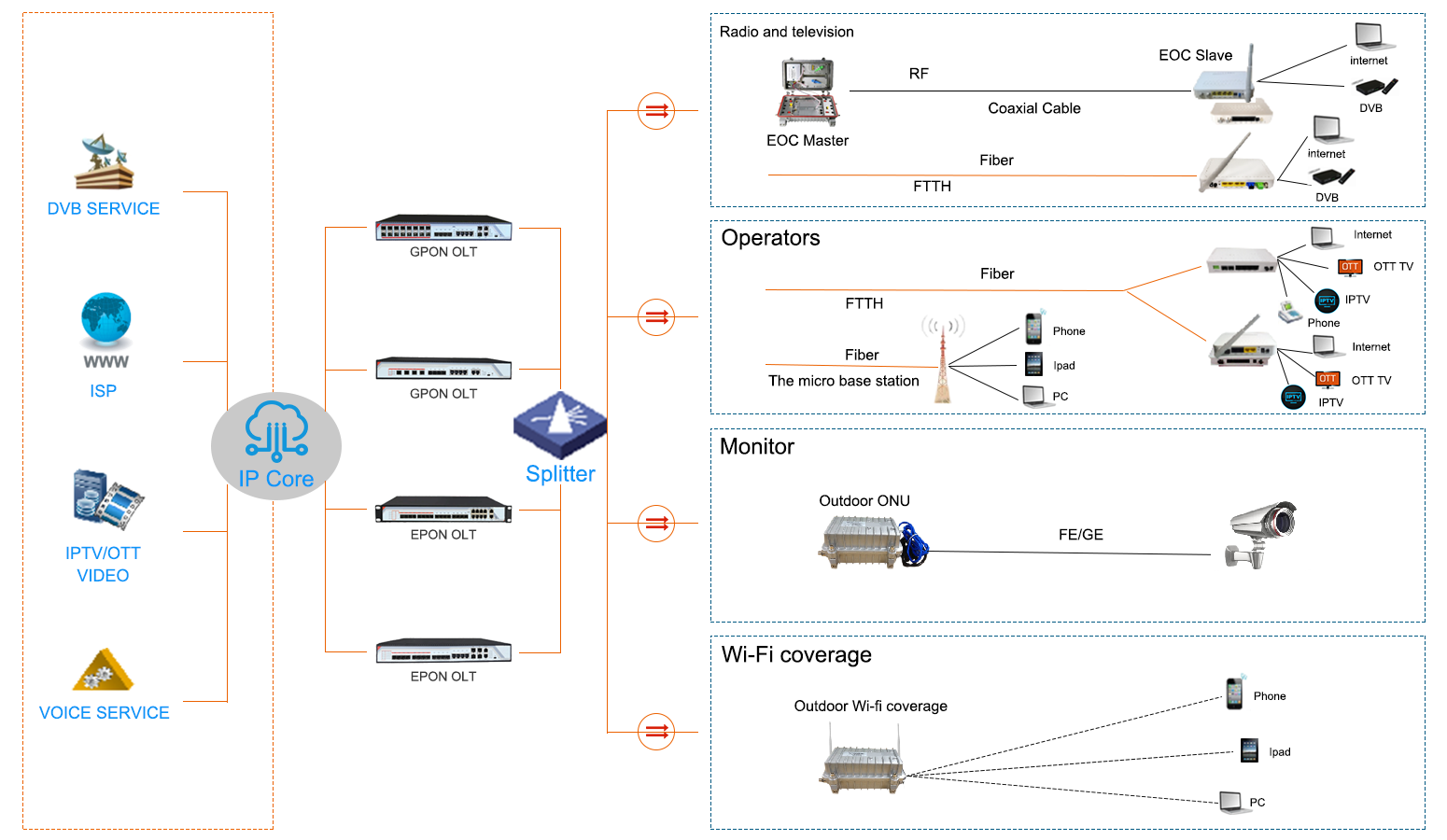

    GPON / EPON OLT Network Applications

    PON OLT Network Application.png


    Related Articles

    ●  What is the PON+EOC network solution

    ●  Introduction and Comparison EPON and GPON


    Product

    Model

    Configuration

    Notes

    GPON OLT

    SPO-GS8424

    1 U standalone GPON OLT with 8 PON ports, 1 USB interface,4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration.

    1.BBU key. N-without BBU; B-with BBU.

    2.Power key. SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC.

    without SFP modules

    GPON OLT

    SPO-GS8808E

    8PON GPON OLT 1U chassis, 8 GE uplink optic ports, 8 GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration

    without SFP moduleswithout 10Gbit uplink card
