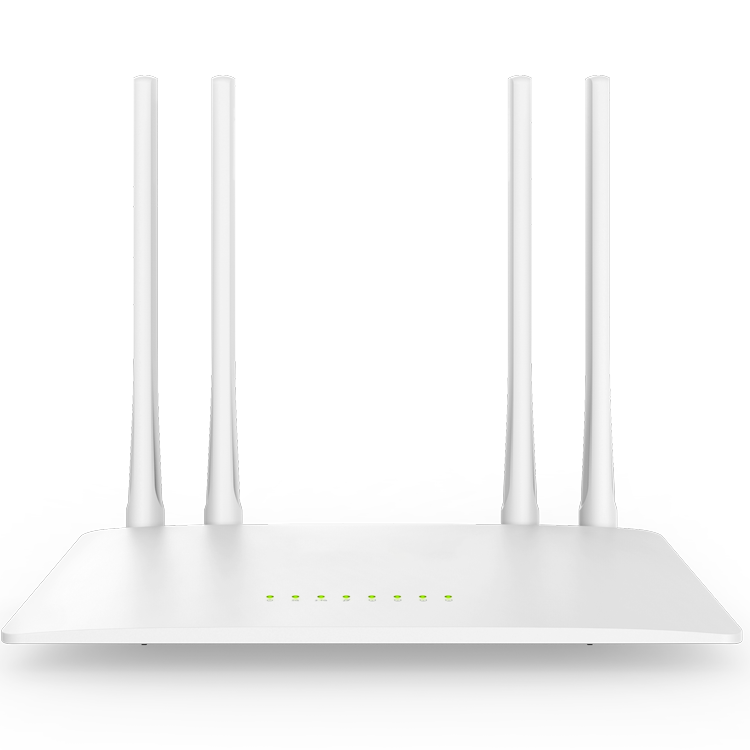

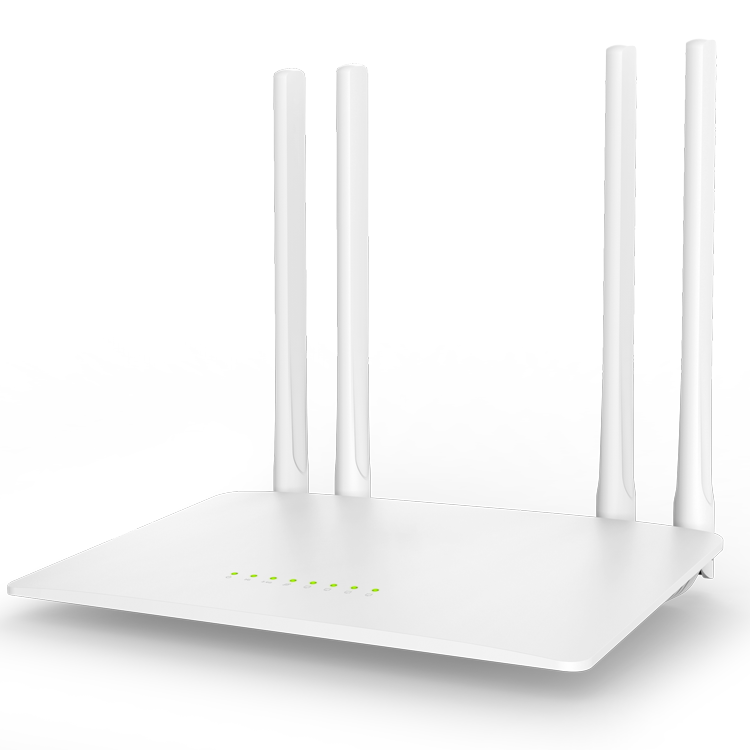

1200Mbps Wireless Router
● 802.11AC Wi-Fi speeds up to 1200Mbps (300+866Mbp)
● 4*6dBi High Gain antennas provide Whole-Home coverage and stable signal
● 2*Guest Network (2.4G&5G) achieve 4*secure Wi-Fi Name for guests
● Smart management APP could control the smart wireless router remotely and feedback router status at Anywhere and Anytime
1200Mbps 11AC Wireless Dual Band Smart Router
IEEE802.11b/g/b/ac, IEEE802.3, IEEE802.3u, CSMA/CD, DHCP, TCP/IP
IP/MAC Address Filter, WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
Wireless Transmission Power
2.4GHz (MAX):17dBm, 5GHz (MAX):17dBm
300M: [email protected]%PER 11ac HT80: -58dBm
130M: [email protected]%PER 11ac HT40: -62dBm
54M: [email protected]%PER 11ac HT20: -66dBm
Power, 2.4G_WIFI, 5G_WIFI, WPS, WAN, LAN1-4
Up to 1200Mbps

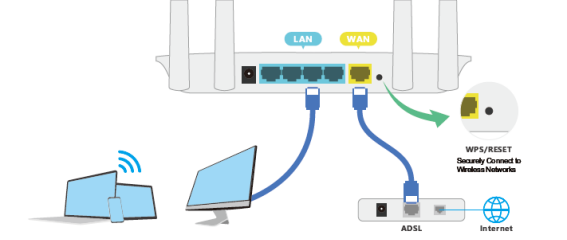

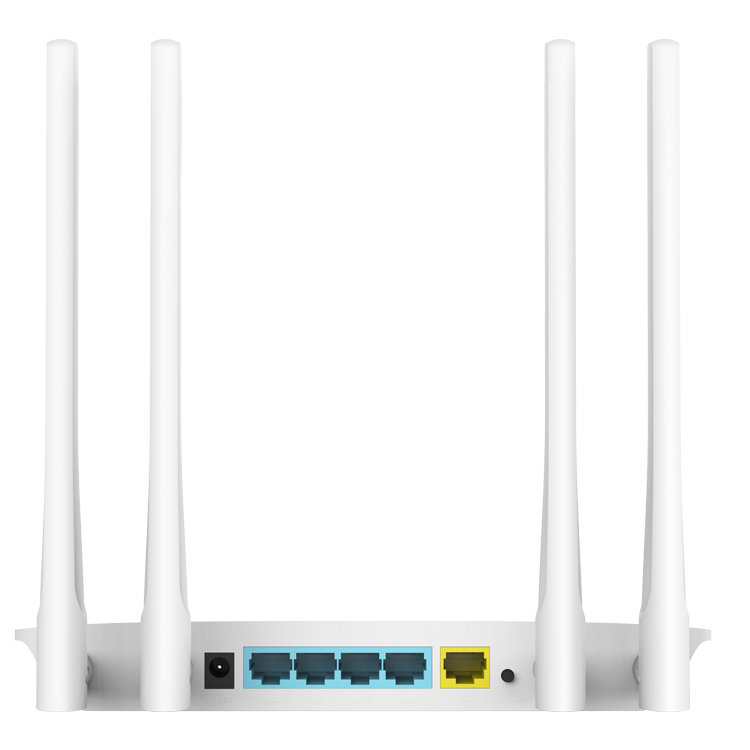

One 10/100Mbps WAN port
Four 10/100Mbps LAN ports
4*5dBi High-gain Omni Directional
One Reset / WPS Multiplex button
Operating Temperature: 0℃~40℃(32°F~104°F)
Storage Temperature: -20℃~70℃(-4°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Router 1200Mbps 11AC wireless ,1 10/100M adaptive WAN port, 4 10/100M adaptive LAN ports, frequency 2.4GHz/5GHz
Note: If you need more customized services, please contact us.

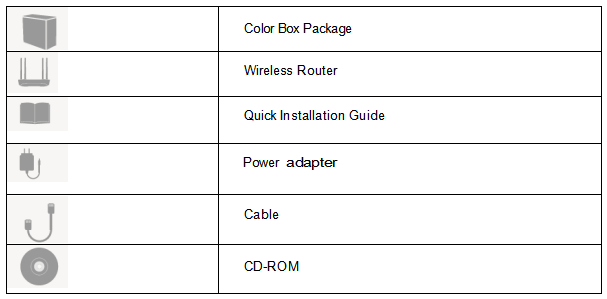

Included in Each Package
