  • Cable Joint Box

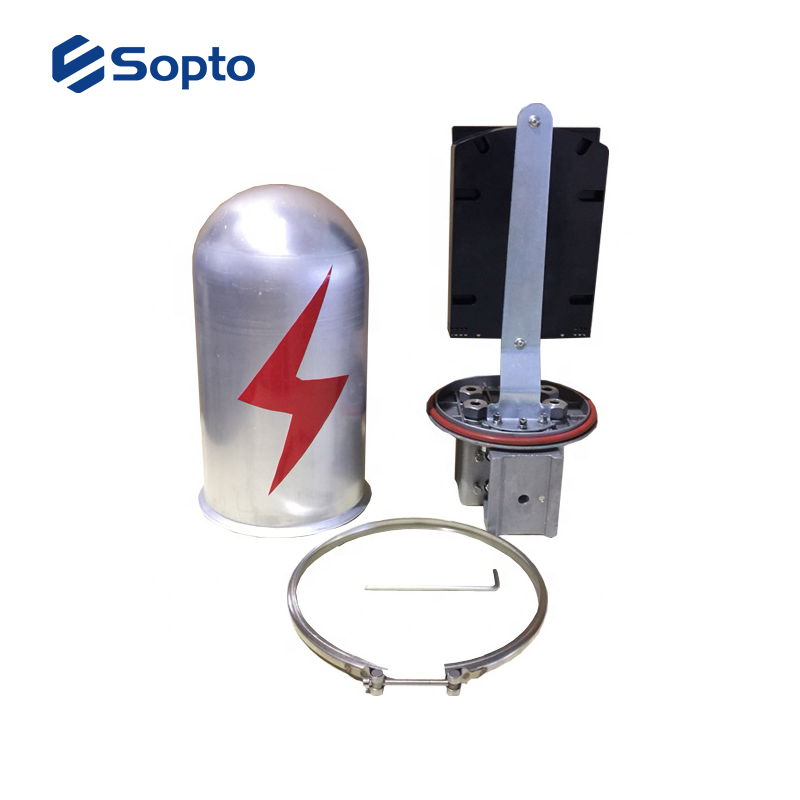

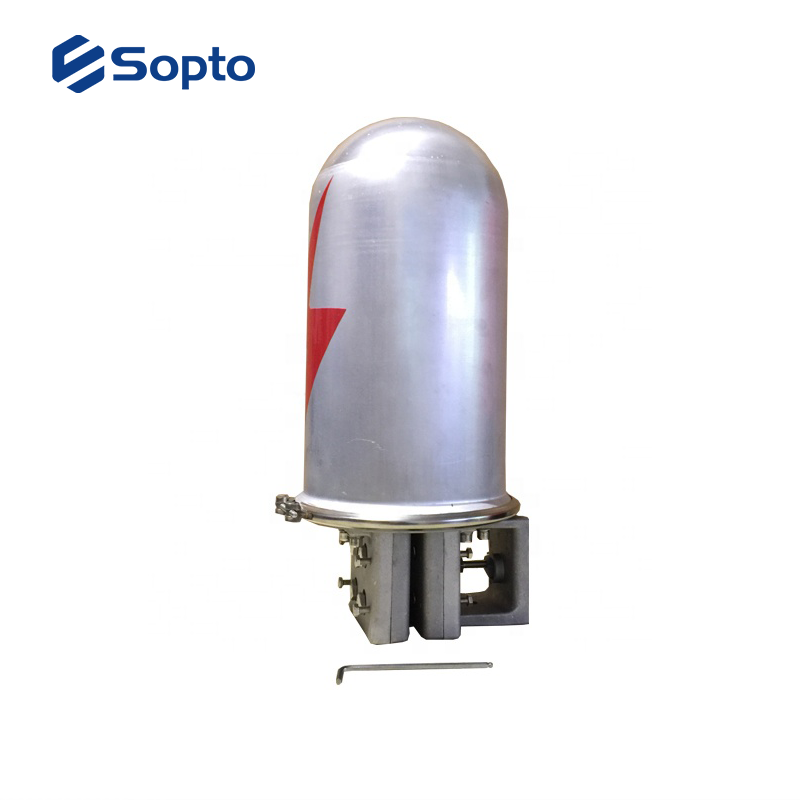

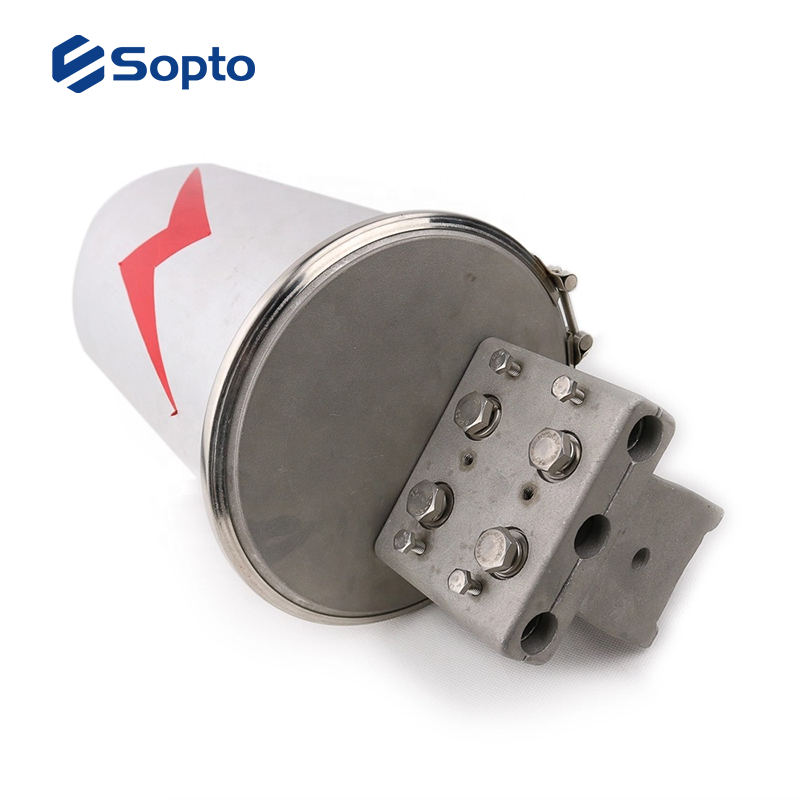

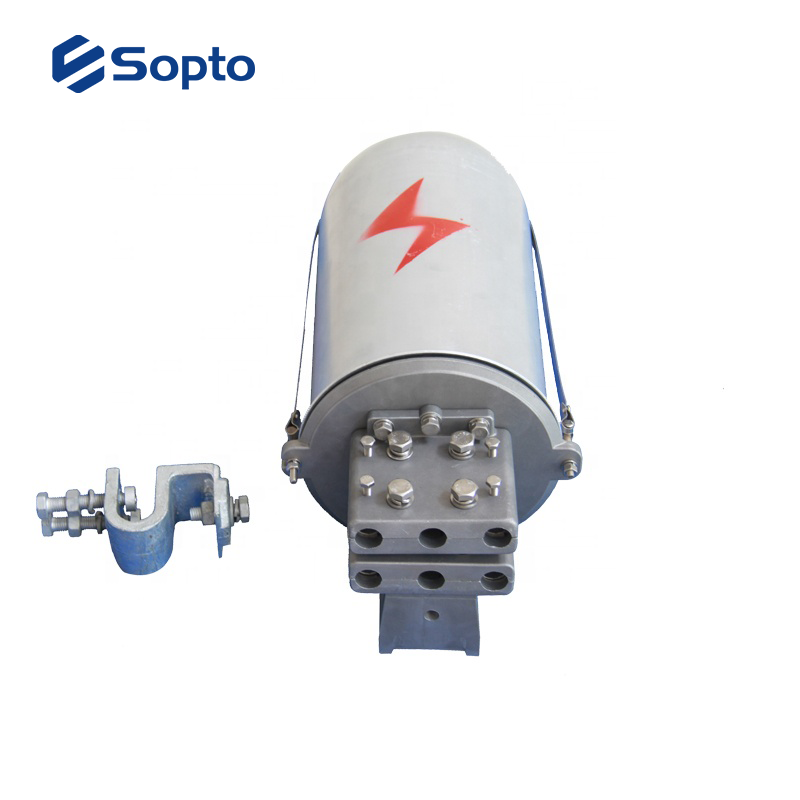

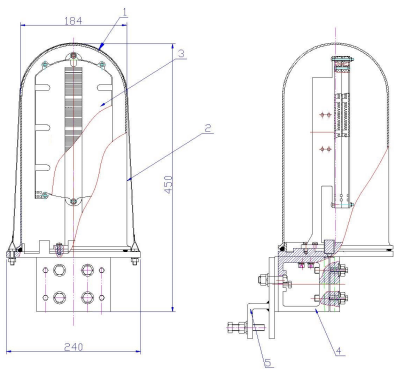

    Cable Joint Box is designed for splicing ADSS, OPGW cables and the normal cables, including two to four sleeves for input and output.
  • Contact Us
  • ● Cable Joint Box is designed for splicing ADSS, OPGW cables and the normal cables, including two to four sleeves for input and output.

    ● Loose storage space makes storage more conveniently, quickly and cable bending radius big enough, avoiding fiber optic extra loss and ensuring transmission performance.

    ● The double sealed designs make Cable Joint Box more reliable. Easy to install and fix on pole(tower) or tubes.




    Data Sheet

    Specification Model

    Suitable Range

    Weightkg

    Material

    JBM 2 012

    Two Ports, 12 Fibers

    4.1

    Aluminum Alloy

    JBM 2 024

    Two Ports, 24 Fibers

    4.1

    Aluminum Alloy

    JBM 2 036

    Two Ports, 36 Fibers

    4.1

    Aluminum Alloy

    JBM 2 048

    Two Ports, 48 Fibers

    4.1

    Aluminum Alloy

    JBM 2 060

    Two Ports, 60 Fibers

    4.1

    Aluminum Alloy

    JBM 3 012

    Three Ports, 12 Fibers

    4.2

    Aluminum Alloy

    JBM 3 024

    Three Ports, 24 Fibers

    4.2

    Aluminum Alloy

    JBM 3 036

    Three Ports, 36 Fibers

    4.2

    Aluminum Alloy

    JBM 3 048

    Three Ports, 48 Fibers

    4.2

    Aluminum Alloy

    JBM 3 060

    Three Ports, 60 Fibers

    4.2

    Aluminum Alloy

    Cable Joint Box is sold as an assembly. A Cable Storage Shelf and Fix Clamp are needed when installed on the tower,A Cable Storage Shelf and three Stainless Steel Bands are needed when installed on the pole.


    Characteristic

    ● The Splice Joint Closure can meet completely the lifetime need of optical fiber communication system with excellent waterproof applicability and reliability.

    ● The fiber can be fixed firmly in Splice Joint Closure, easy to operate, and the loss of splice point will not affect by stress, so as to ensure the fiber transmit characteristic.

    ● 48 fibers can be put on one layer of Fiber Storage Pad, 144 fibers can be spliced in one Splice Joint Closure.

    ● The Splice Joint Closure can be fixed on pole/tower conveniently, quickly and firmly.


    Installation Step

    1. Check the end of cable and cut the coating of cable(about 2 meters)

    2. Cut the Amide Yarn and leave the loose tube with fiber. Put the aluminum pin through Fiber Storage Pad.

    3.Cross two fibers through Fiber Storage Pad, aluminum nut, and tighten the pad and all the nuts.4. Put seal glue fully into aluminum bolt, and tighten the aluminum nut.

    5. Fix the fiber tubes with band on the frame of Fiber Storage Pad.

    6.Fix the other fibers on this way.

    7. Ready to splice

    8. Cross the bare fiber through heat shrinkable tube, peel the coating of fiber, and clean the bare fiber.

    9. Cut off end socket of the optical fiber with special cutting knife, put in optical fiber fusion splicer.

    10. Deal with the other fiber on this way, and begin to splice. Move the heat shrinkable tube to splice point, put it into heating groove and heating to make it shrink enough.

    11.Finish all the splice, put the fiber and heat shrinkable tube into groove in order.

    12. Insert the seal ring, cover the cap of splice joint closure, and tighten the nut.

    13.Fix the Splice Joint Closure on the cement pole by crossing the stainless steel band through the pad

    14.Fix the Stainless Steel Fasten Clamp on the cement pole, according to the installation of Down-lead Clamp for pole.

    15. Fix the Splice Joint Closure on tower/pole, install the Cable Storage, and store all the excess cables, then finish the installation.


    NOTE

    ● Splice Joint Closure is designed for joint between ADSS & ADSS cables, ADSS & normal cables, normal cables & normal cables.

    ● There are 2 – 4 ports for Splice Joint Closure.

    ● This product can be installed on towers or poles.

    ● Select the specification model according to the appropriate cable diameter range and fiber cores.

    ● Trained person can just install the Splice Joint Closure.

    ● Contact our technique department for any questions.
