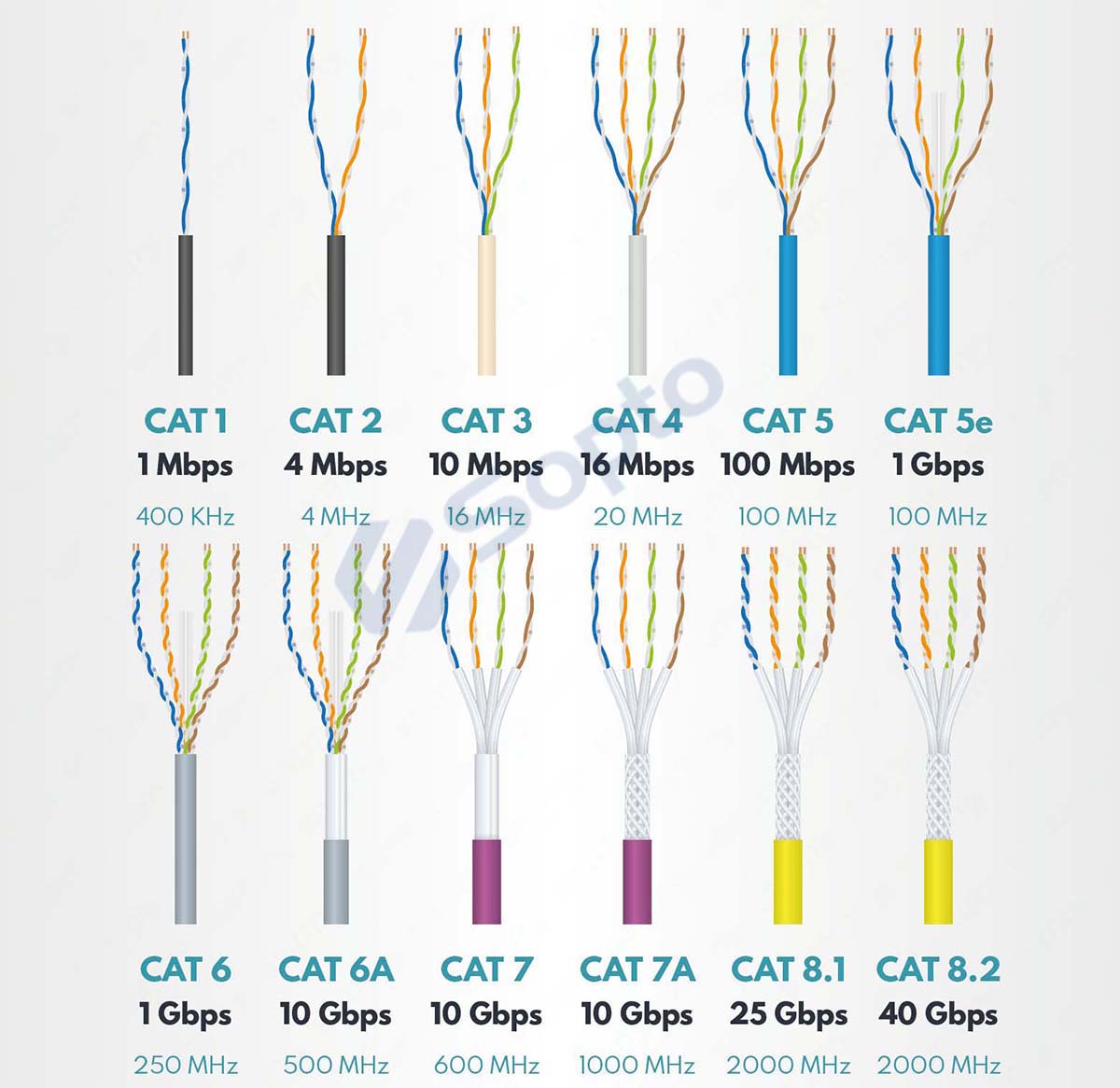

The development of Ethernet cables, categorized into different "Cat" (Category) levels, has evolved over the years to meet the increasing demands for higher data transfer rates and improved performance. Here's an overview of the progression from Cat1 to Cat8, highlighting the key differences:
Cat1
Introduction Era (1980s): Cat1 cables were primarily used for telephone applications and had minimal data transfer capabilities.
Transmission Rate: Up to 1 Mbps.
Cat2
Emergence of Token Ring Networks (1980s): Cat2 cables were designed to support Token Ring networks.
Transmission Rate: Up to 4 Mbps.
Cat3
Introduction of Ethernet (1990s): Cat3 cables became widely used for Ethernet networks.
Transmission Rate: Up to 10 Mbps.
Cat4
Token Ring and 16 Mbps Ethernet (1990s): Cat4 cables were designed to support Token Ring and 16 Mbps Ethernet.
Transmission Rate: Up to 16 Mbps.
Cat5
Fast Ethernet Standard (1990s): Cat5 marked a significant improvement for Fast Ethernet.
Transmission Rate: Up to 100 Mbps.
Cat5e
Enhanced Performance (2000s): Cat5e cables offered improved performance and reduced crosstalk.
Transmission Rate: Up to 1 Gbps.
Cat6
Gigabit Ethernet (2000s): Cat6 cables became the standard for Gigabit Ethernet.
Transmission Rate: Up to 10 Gbps (in limited distances).
Cat6a
Augmented Performance (2000s): Cat6a provided enhanced performance and support for 10 Gbps over longer distances.
Transmission Rate: Up to 10 Gbps.
Cat7
F/FTP Shielding (2010s): Cat7 introduced fully shielded twisted pairs for better protection against interference.
Transmission Rate: Up to 10 Gbps (with improved shielding).
Cat8
Higher Frequency (2010s): Cat8 cables support higher frequencies, enabling data rates of 25/40 Gbps over short distances.
Transmission Rate: Up to 25/40 Gbps.
Current Market Demand
Cat5e and Cat6 : Still widely used for general networking needs and home applications.
Cat6a : Increasingly popular for higher performance requirements in commercial and data center environments.
Cat7 and Cat8 : Growing demand in industries requiring ultra-high-speed data transfer, such as data centers, high-performance computing, and critical infrastructure.
How to Choose？
Choosing the appropriate Ethernet cable category depends on your network requirements and the anticipated usage environment. Here are some recommendations:
General Home and Small Office
For typical internet usage, file transfers, and video streaming, Cat5e may be sufficient to meet your needs.
Most Businesses and Home Networks
Cat6 is a solid choice, providing higher bandwidth and interference resistance, suitable for a wide range of applications.
High-Performance Environments and Data Centers
If you require higher bandwidth and longer transmission distances, considering Cat6a or Cat7 would be advisable.
Special Environments with Interference Concerns
In electromagnetic interference-prone environments, Cat7 might be a better choice due to its superior interference resistance.
Before making a decision, also consider budgetary constraints and potential changes in future network requirements. Taking a holistic approach and evaluating various factors will help you choose the Ethernet cable category that best suits your specific needs.
The evolution from Cat1 to Cat8 reflects the continuous improvement in Ethernet cable technology to meet the escalating demands for faster and more reliable data transmission. The choice of cable depends on specific use cases, the market is, however, dynamic, and future developments may influence cable preferences.
