PON (Passive Optical Network) combined with CATV (Cable Television) and EDFA (Erbium-Doped Fiber Amplifier) for FTTH (Fiber to the Home) is a comprehensive optical transmission solution with numerous applications and a sophisticated working principle.
This solution is primarily utilized in delivering high-speed internet, IPTV, VoIP, and CATV services to residential and business subscribers. It enables the convergence of various services over a single fiber optic infrastructure, thereby enhancing the efficiency and cost-effectiveness of broadband service delivery.

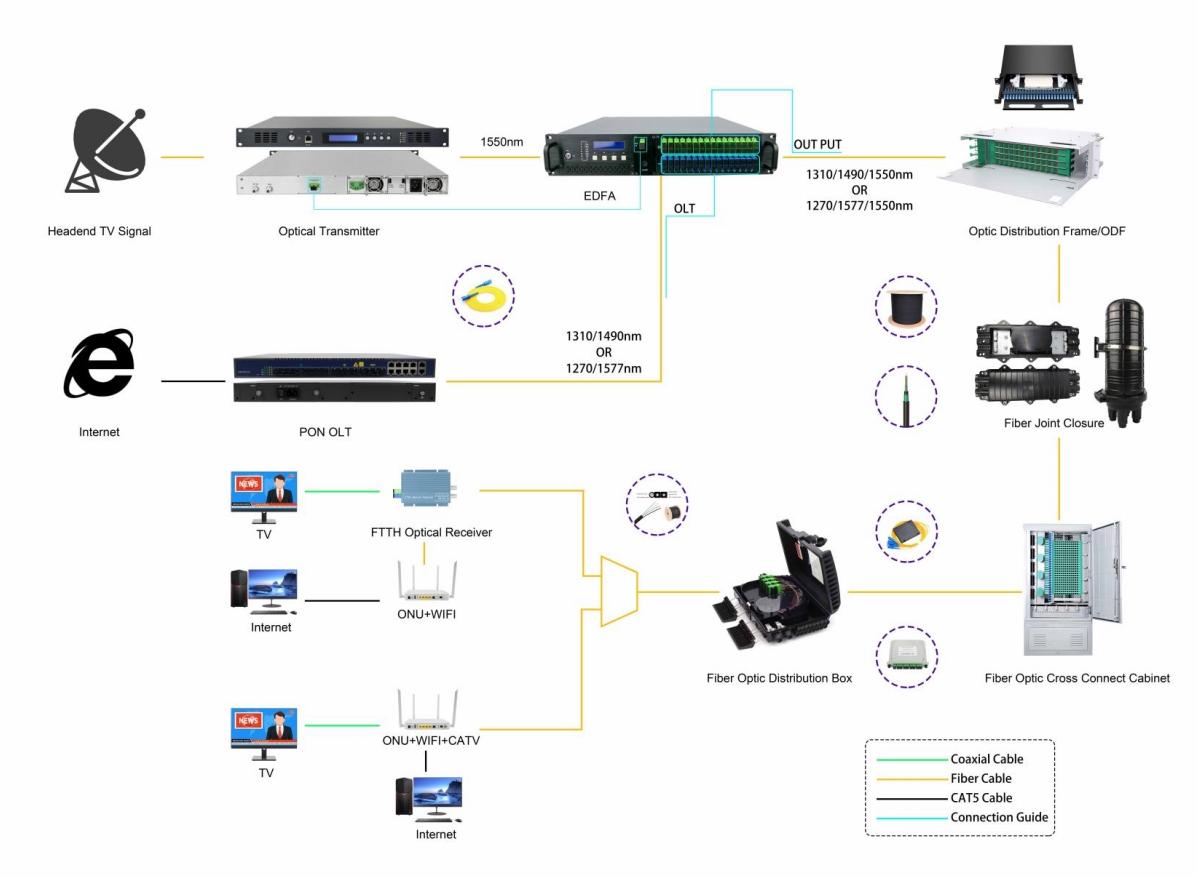

The working principle involves the following key components and processes:
Passive Optical Network (PON): PON serves as the backbone of the optical distribution network. It consists of an OLT (Optical Line Terminal) located at the service provider's central office and multiple ONUs (Optical Network Units) installed at the customer premises. PON utilizes passive optical splitters to distribute optical signals to multiple subscribers, thereby minimizing the need for active electronic components in the distribution network.
CATV Distribution: CATV signals, including analog and digital television channels, are combined with the data traffic from the PON network. This integration allows for the simultaneous delivery of broadband internet and television services over the same optical fiber infrastructure.
EDFA (Erbium-Doped Fiber Amplifier): EDFA is employed to amplify optical signals in the downstream direction. As signals travel along the fiber optic network, they experience attenuation due to fiber losses. EDFA amplifiers strategically placed along the network boost the optical power, thereby extending the transmission distance without the need for converting the optical signal into electrical form.
FTTH Deployment: Fiber optic cables are extended from the central office to individual homes or buildings, providing high-bandwidth connectivity directly to end-users. Each subscriber is connected to the PON network via an ONU, which interfaces with their respective devices such as computers, set-top boxes, and telephones.
The combined PON+CATV+EDFA FTTH solution optimizes bandwidth utilization, reduces infrastructure costs, and simplifies network management. By leveraging passive optical components, amplified signal transmission, and efficient service integration, this solution meets the increasing demand for high-speed broadband access in residential and commercial environments.
