SPU-G420WD-HZ dual-frequency data type ONU is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
SPU-G420WD-HZ have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It’s fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.
SPU-G420WD-HZ can integration wireless function with meet 802.11 a/b/g/n/ac technical standards. At the same time, it also supports 2.4GHz/5GHz dual-band wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Features
● In compliant with ITU - T G.984.1/2/3/4 standard
● Meet 802.11 a/b/g/n/ac WIFI technical standard
● Support ONU auto-discovery/Link detection/remote upgrade of software
● Support Ethernet line performance statistics function
● Support OMCI+TR069 management mode
● Support VLAN tag/untag
● Support multicast Snooping/Proxy
● Support DHCP/PPPOE/Static IP internet mode
● Support port binding
● Support loop-detection function
● Support device-based speed limitation
● Support MAC-address filter and URL access control
● Support AES encryption and decryption
● Support Dynamic Bandwidth Allocation (DBA)
● Support ACL configure data packet filter flexibly
● EMS network management based on SNMP ,convenient for maintenance

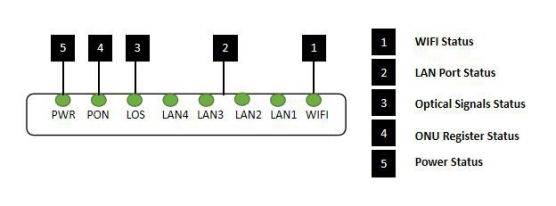

Picture 1：Product interface
WiFi Features
● Comply with IEEE 802.11a/b/g/n/ac protocol standard, support 2.4GHz and 5GHz
● There are four antennas, two built-in, two external
● 5dBi antenna gain
● Maximum ideal rate up to 1.2Gbps
● 2.4GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
● 5GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
● Support 8 SSIDs
● Support wider RF bandwidth, up to 80MHz
● Support higher 256-QAM modulation mode
● Support MIMO-OFDM encoding mode
● Support wireless security of 64/128 bit WEP、802.1x、WPA and WPA2

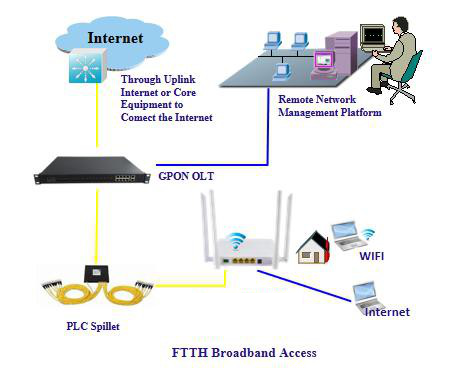

Picture 2: Network Construction
GPON ONU 4* 10/100/1000M UTP Ports with 2.4GHz and 5GHz WIFI 802.11ac,if you want to learn more details about this product or other our ONU products,please don't hesitate to contact us.
Tags ：gpon onu, onu,gpon,olt,fttx
