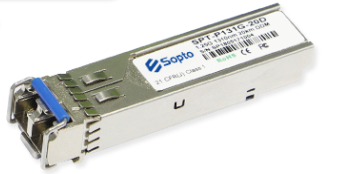

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features :
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP laser and PIN photo detector for 10km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring: Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1 Compatible with ROHS
● +3.3V single power supply
● Operating case temperature:
Standard: 0 to +70°C
Extended: -20 to +85°C
Industrial: -40 to +85°C
Applications:
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Products List on sale
Part Number | Product Description |
SPT-P131G-10 | 1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC |
SPT-P131G-10D | 1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC, DDM |
SPT-P131G-10TD | 1310nm, 1.25Gbps, 10km, -40ºC ~+85ºC, DDM |
Note: If you need more customized services, please contact us.
