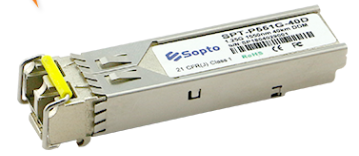

1.25Gbps SFP Bi-Directional Transceiver,10km or 20km Reach, 1310nm TX / 1550 nm RX & 1550nm TX / 1310 nm RX ,1310nm TX / 1490 nm RX & 1490nm TX / 1310 nm RX.

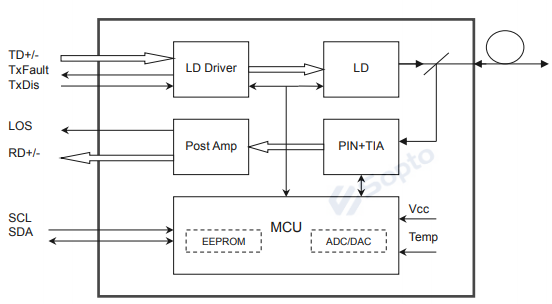

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP or 1490/1550nm DFB laser and PIN photo detector for 20km transmission
● Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
● Digital Diagnostic Monitoring: Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with ROHS
● +3.3V single power supply
● Operating case temperature:
Standard: 0 to +70°C
Industral: -40 to +85°C

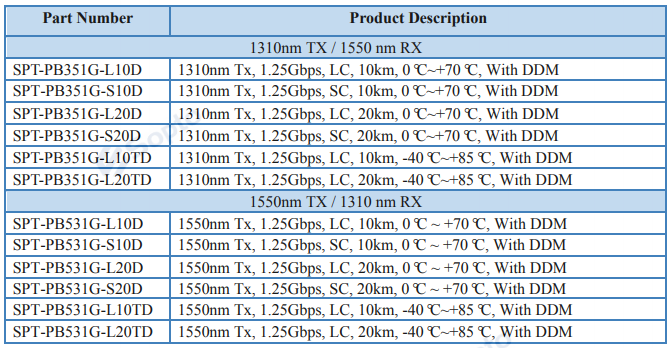

Ordering information
Note: 1、Default operating case temperature is 0 ~ 70℃. If you need -40 ~85℃ products, please contact us. 2、If you need more customized services, please contact us.
Tags:sfp module,fiber module,1.25g sfp
