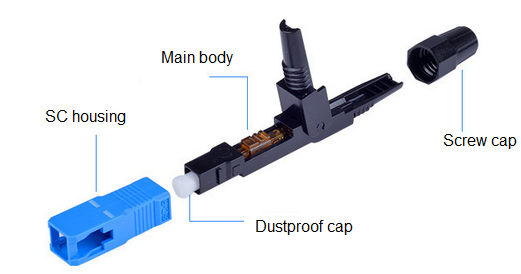

One Fast connector is mainly composed of three parts: Screw cap, connector body and SC housing as below:
Step 1: Lead the cable into the screw cap
Step 2: Strip the cable around 50mm with the drop cable tripper; Peel off the fiber coating with a Miller pliers. Clean the fiber with alcohol and dust-free paper, cut the fiber as below length.

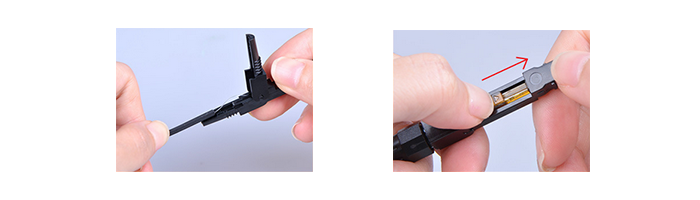

Step 3: Insert and press the cable into the groove and keep the fiber slightly bending. Push the fixed ring forward, close the gland for fixing the drop cable.
Step 4: Close the screw cap, put SC housing and finish assembling.
SOPTO provides SC/APC, SC/UPC, SM/MM and different types of fast connector. If any further interest, don’t hesitate to contact us.
