The SPFC-XO-XM-2/2D Optical Distribution Box (ODB) is a high density 2-in-1 fiber optic box solution. The cabinet is compact and measures 340x220x100mm and accommodates 1x2, 1x4, 1x8 and 1x16 splitters. When the splitter is not installed, it can accommodate up to 144 cores and install six 24-pin splice discs. The four ports are available in sizes for main cables from 9 to 16 mm in diameter and 16 roots 3 mm cables. It is the aerial installation closure.

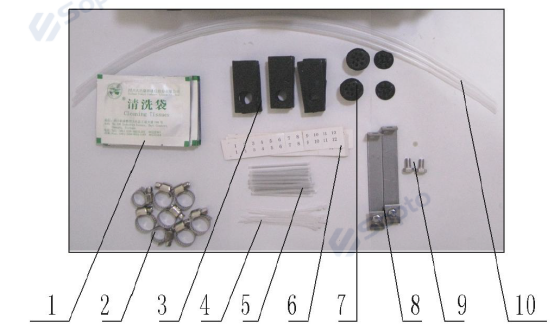

The Accessory Kits of this closure will be like the below picture:
1. Cleaning Tissues
2. Hose camp
3. Main Cable Seals
4. Nylon Tie-wrap
5. Shrinkable Sleeves
6. Label
7. Drop Cable Seals
8. Aerial Buckle (with M5x12 stainless bolts)
9. M6x10 Stainless Bolts
10. Fiber Melting Protection Tube
For Aerial Installation, first you secure the aerial buckles on the cabinet with M6x10 Stainless bolts, second hang the ODB on steel wire with two buckles. Like the below pictures:

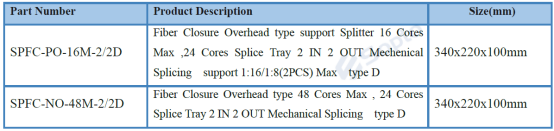

Below are our part numbers for the fiber closure you may refer when you make order. For more information, please send email to us.
