Working Comdition
Item | Standard | Parameters |
Operation temperature | IEC 60794-1-2 F1 | -20℃~+60℃ |
Water penetration | IEC 60794-1-2-F5 | Water level:1m ,sample:3m, After 24h,no water ingress. |

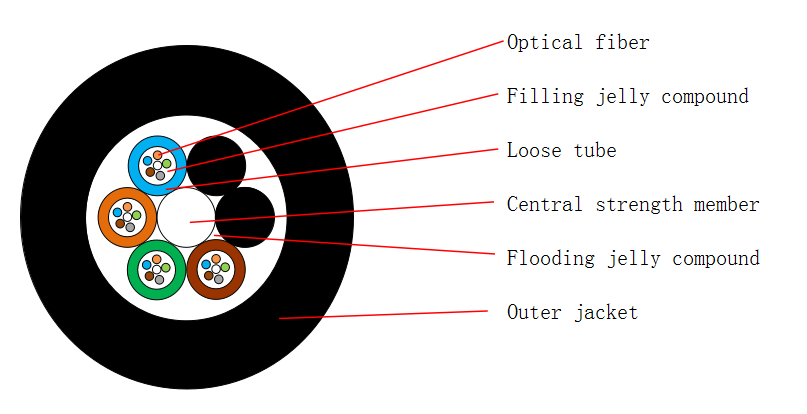

Cable Performance
Item | Parameters | |
Loose tube | Material | PBT |
Color | Full color spectrum | |
Filler | Material | PE |
Color | Black | |
CSM | Material | FRP |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 10 times cable diameter |
Dynamic | 20 times cable diameter | |
Tensile performance | Short term | 1500N |
Crush | Short term | 1000N/100mm |
Optical Fiber Type and Properties
Item | Unit | Specification | |
Fiber Type | G.652 | ||
Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
1550nm | mm | 10.4 ± 0.8 | |
Cladding diameter | mm | mm | |
Cladding non-circularity | % | £1.0 | |
Core/cladding concentricity error | mm | £0.5 | |
Coating diameter | mm | 242 ± 7 | |
Coating/cladding concentricity error | mm | £12 | |
Cable cut-off wavelength | nm | £ 1260 | |
Attenuation Coefficient | 1310nm | dB/km | £0.36 |
1550nm | dB/km | £0.22 | |
Proof stress level | kpsi | ≥100 |

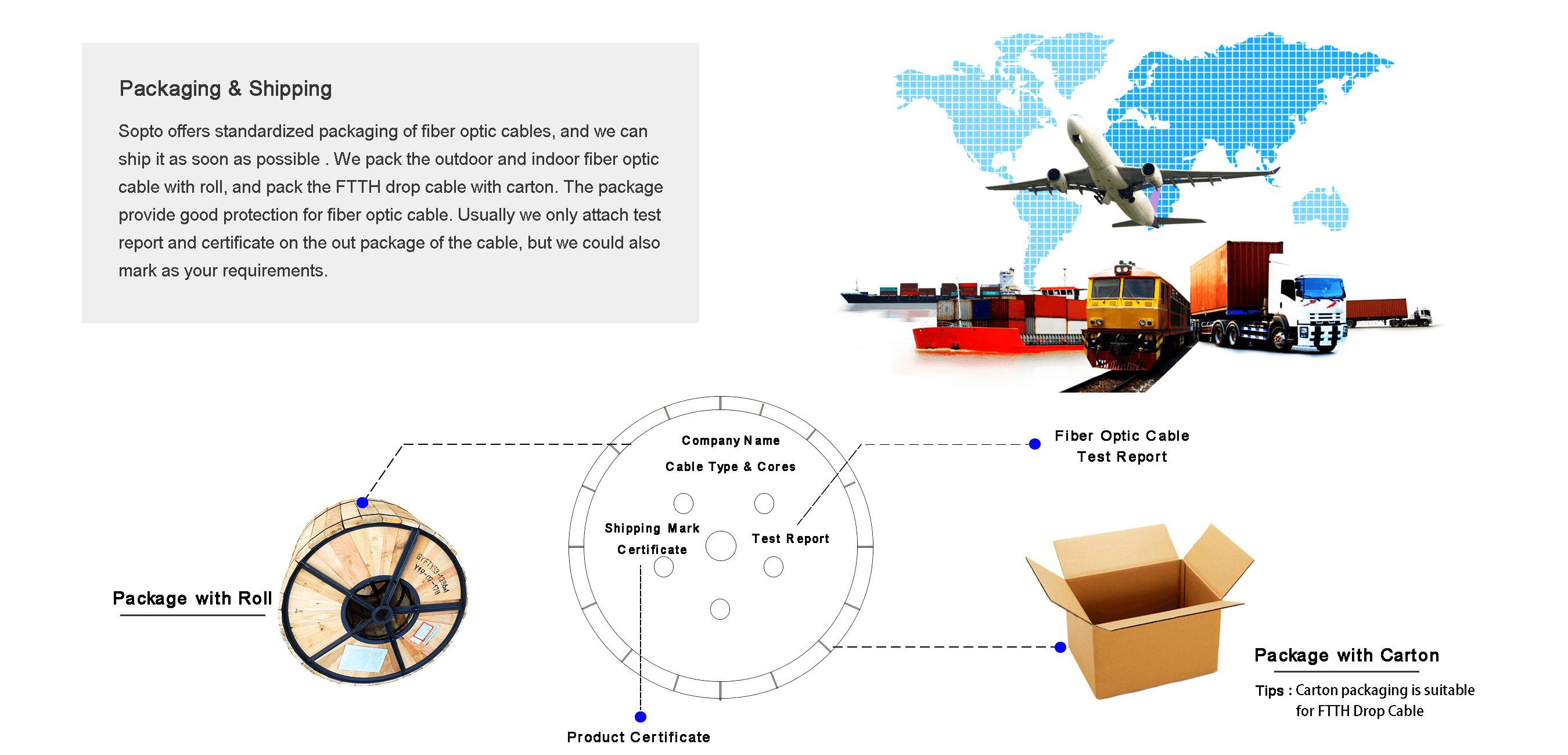

Certifcation and Packaging

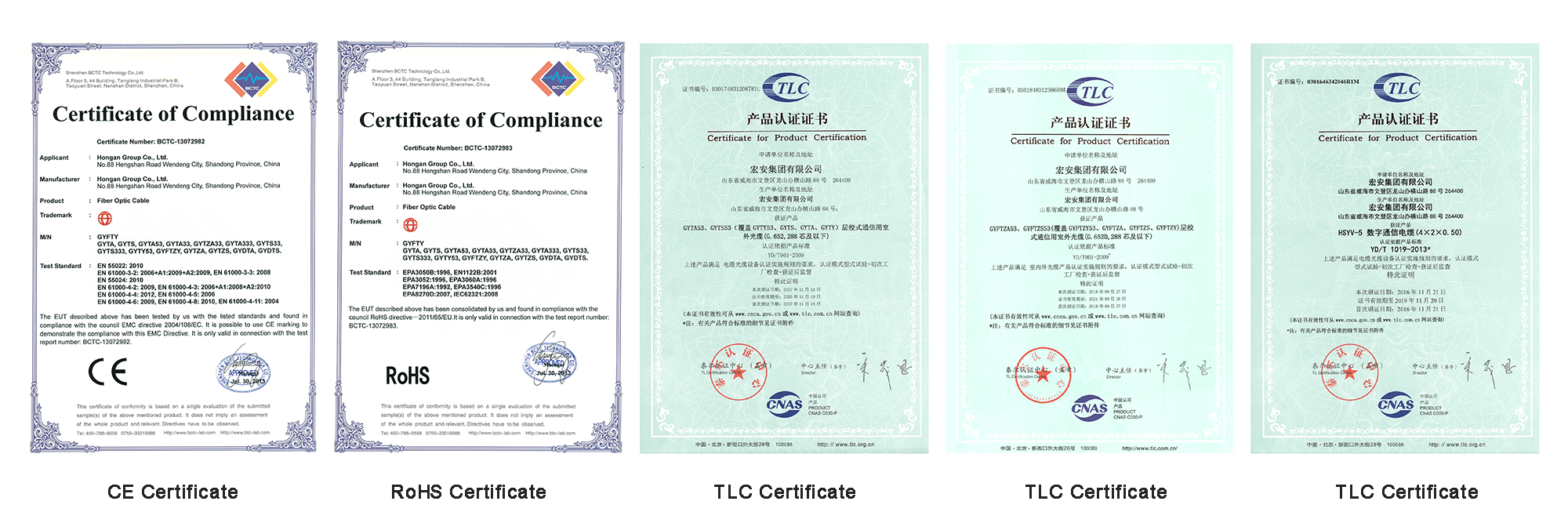

Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC
