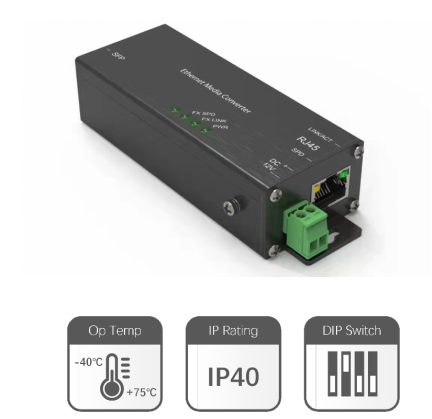

The Mini Industrial Gigabit Ethernet media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited.
Feature of mini industrial media converter
● 10/100/1000Mbps Full/Half Duplex, Auto- Negotiation and Auto-MDI/MDIX
● Choice of LC SFP Connectors for MM & SM
● Robust IP40 Aluminum Metal Enclosure for Harsh Environments
● Operate stably under the Temperature Range of -40 – 75℃
● LED Indicates Diagnostic & DIP-switch Ethernet OAM
● Support IEEE 802.3x Flow Control
● Both Desktop and Wall Mounting installation
The industrial converter is equipped with rugged IP40 metal enclosure to ensure industrial operation in harsh environments where extreme low or high temperatures can be experienced.
It is specially designed for outdoor and industrial applications such as city surveillance systems, smart manufacturing, etc. It is ideal for miniaturization and rapid deployment, provides users a cost- effective and highly reliable option.
Product Specifications
Ethernet Interface
Ports：1x10/100/1000Base-TX RJ45 ports, 1x100/1000Base-FX SFP/SC
Port Mode(Tx)：Auto Negotiation Speed；Full/Half Duplex Mode；Auto MDI/MDI-X Connection
Standards：IEEE 802.3 for 10BaseT；IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X)；IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control
Maximum Packet Length：Up to 10K
Forward Filter Rate：14,880pps(10Mbps)；148,800pps(100Mbps)；1,488,000pps(1000Mbps)
Transmission Mode：Store and Forward (full/half duplex mode)
Transmission Distance
SFP Port：Depends on optical module(0-160km)
RJ45 Port Transmission Distance：100m（using standard CAT5/CAT5e cable）
Power Information
Input Power：12VDC
Power Consumption：2.4W Max. [email protected]
Physical Characteristics
Housing：Aluminum case
IP Rating：IP40
Dimensions：36.2mm*117mm*24.5mm
Installation Mode：Wall Mounting
Weight：0.15Kg
Working Environment
Operating Temperature：-40℃~75℃ (-40 to 167 ℉)
Operating Humidity：5%~90% (non-condensing)
Storage Temperature：-40℃~85℃ (-40 to 185 ℉)
DIP Switch
#1： LFP(Link Fault Pass Through) ON/OFF
#2：ALS(Only for SFP) ON/OFF
#3：FX Rest ON/OFF
#4：FX Speed Setting OFF: Fixed 1000M ON: 100M/1000M
Certification Standard
EMC/EMI/EMS：FCC Part15 Class A；CE-EMC/LVD：RoHS；EN61000-4-2 (ESD):LEVEL 4；IEC 6100-4-2 (EFT):LEVEL 4；IEC 6100-4-2 (Surge): LEVEL 4；IEC 6100-4-2 (CS)：LEVEL 3；IEC 61000-4-2(PFMP) : LEVEL 5；EN61000-4-3 (RS):LEVEL 4
Shock：IEC60068-2-27
Vibration：IEC60068-2-6
SPMeefall：IEC60068-2-31
Safety：EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508
Warranty
MTBF：＞ 300,000 hours
Defects Liability Period：5 years warranty, lifetime technical support
Ordering informations
| Part Number | Products Description |
| SPM-2701 | Mini Industrial Media Converter, 10/100Base-TX to 100Base-FX SFP, 12VDC |
| SPM-2703 | Mini Industrial Media Converter, 10/100/1000Base-TX to 1000Base-FX SFP, 12VDC |
| SPM-2706 | Mini Industrial Media Converter, 2X10/100/1000Base-TX to 1000Base-FX SFP, 12VDC |
If you need more details and customized services, please contact us. [email protected], whatsapp :+8618688759008
