    MINI-SC/APC Field Installable Reinforced Fast Connector

  • Latest News    release time:2022-03-23
  • Fiber fast connector is the detachable quick connection between optical fiber and optical fiber devices, it is to put the two optical fiber end face up, so that the optical output of light energy can bigger limit coupled to the receiving optical fiber, and optical link due to the intervention and the effects on the system to a relatively small. Next, a brief introduction to the MINI-SC/APC reinforced connector and installation steps.

    SC / APC Connector

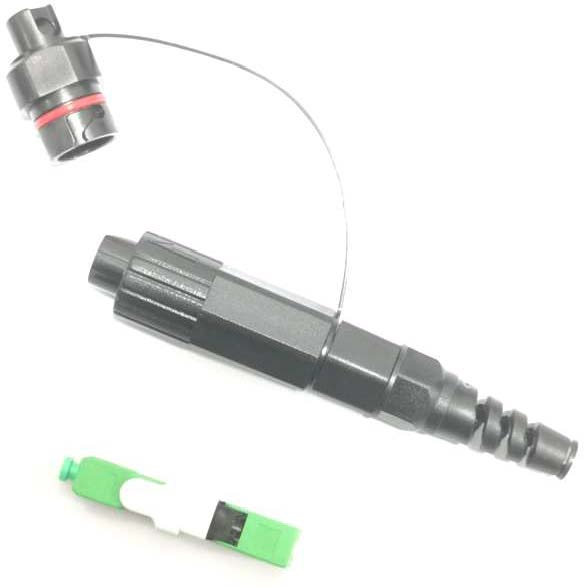

    Features of SC/APC connector

    ● Waterproof level: IP67;

    ● Compatible with ESC250D, Sumitomo, Fujikura and Furukawa fast connector

    ● Field installation, easily mounted on the field mount optical connector, don’t need any specific tools or devices; Low insert loss and high return loss;

    ● High mechanical strength performance;

    ● PEI material, Acid and alkali resistance, Ultraviolet resistance;

    ● Outdoor use, 20-year service life

    ● Apply to Field Assembly Optical Connector type: SC/APC、SC/PC

    ● Apply to outer cable diameter:3.0mm, 5.0mm, 2.0*5.3mm, 2.0*3mm covered wire cable;


    Application of SC/ APC Connector

    ● FTTH;

    ● Outdoor Areas;

    ● Harsh Environment.


    Installation Manual

    To use this product correctly, the instructions must be read carefully before use. Please assemble the connector according to below instruction by using the matched tools.

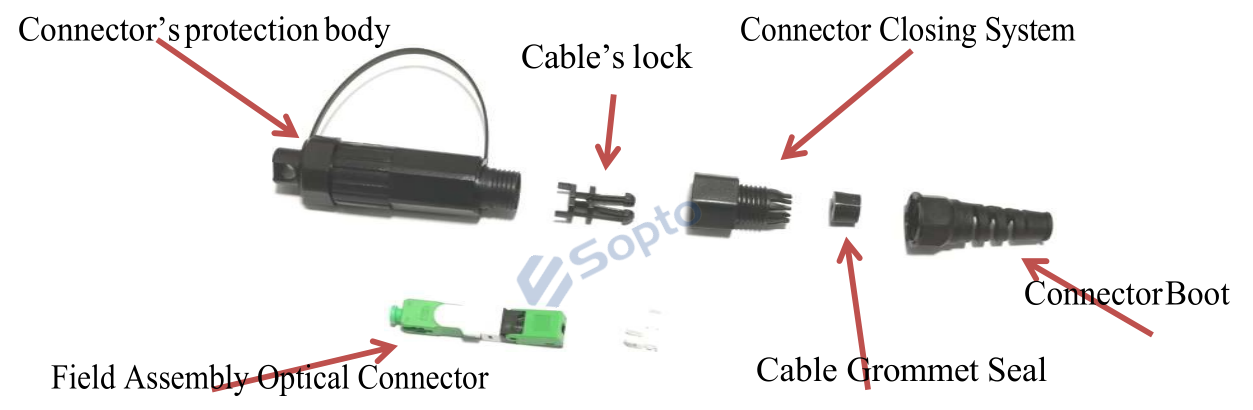

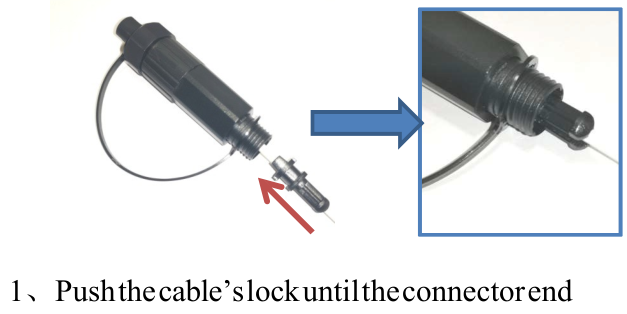

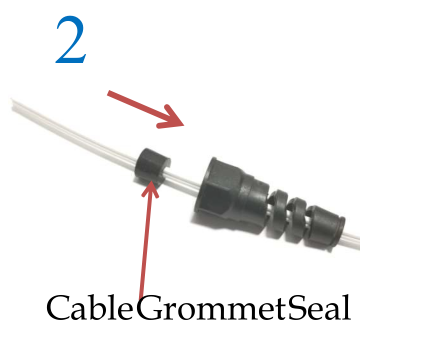

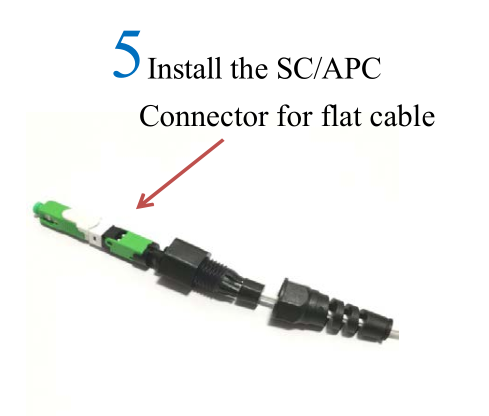

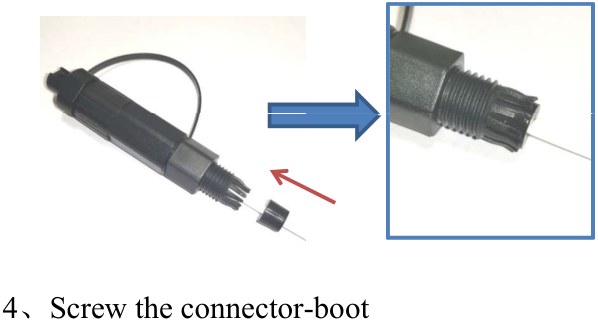

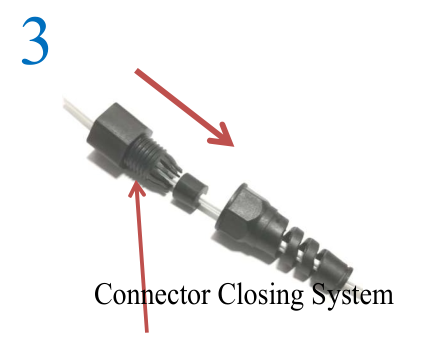

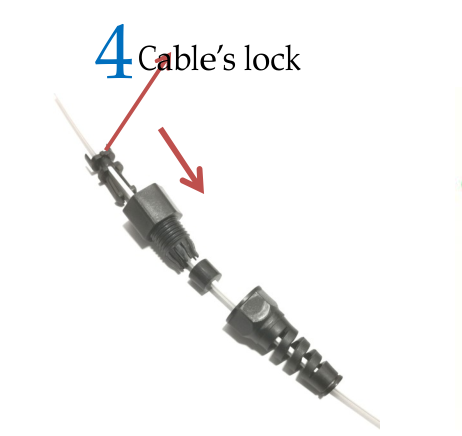

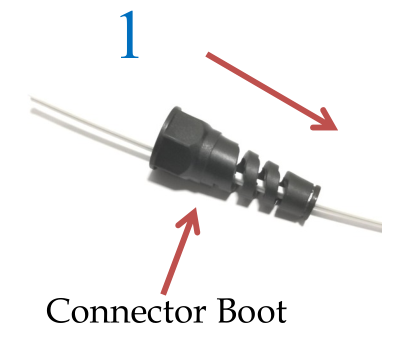

    【1】Insert the parts in numerical order then install the connector;

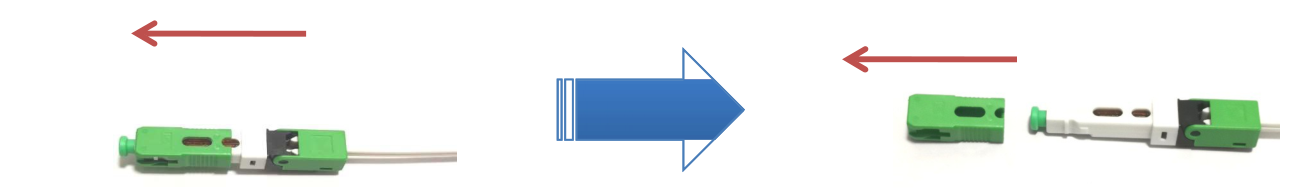

    【2】Remove the outer housing from the connector;




    Grip the connector’s outer shell(green) like the upper picture. Push the outer shell on the table until removing the shell like the upper picture;

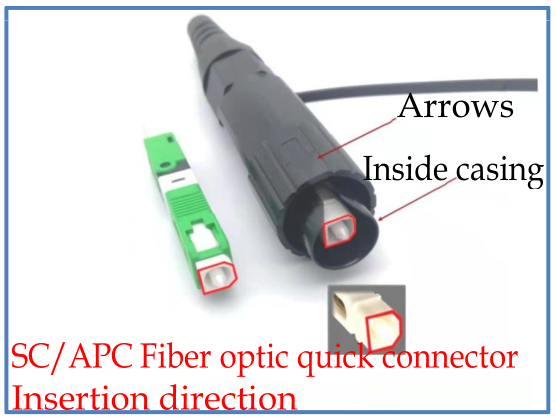

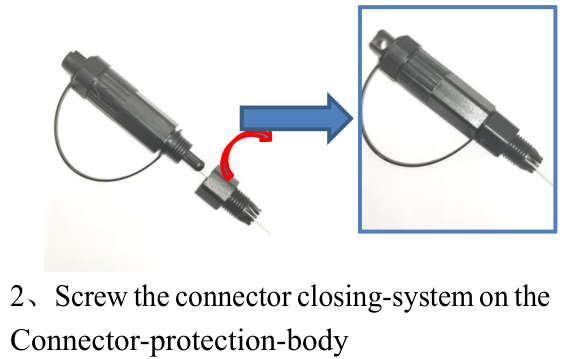

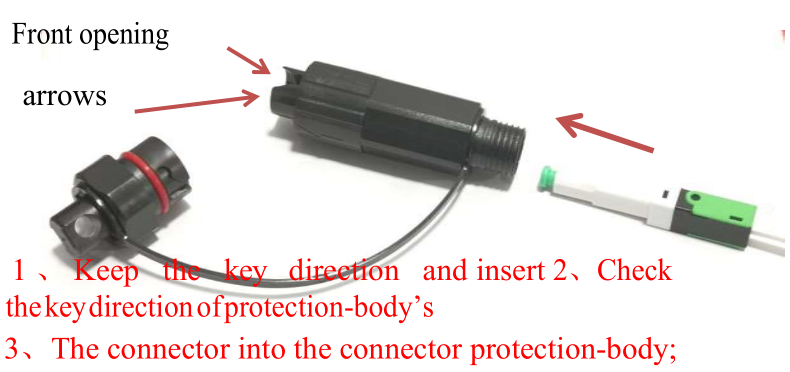

    【3】Insert the connector to the Connector’s Protection body;














    Sopto Technology can provide various types of fast connectors, welcome to order. [email protected].


    Tags : fiber connector,fast connector,sc/apc,fiber cable,ftth
