Fiber optical transceiver is one of the core components of the fiber optic communication system.
The fiber optical transceiver is composed of Optic-electric devices, functional circuits and optical interfaces. And optic-electric devices include two parts: transmitting and receiving.The function of the fiber optical transceiver is conversion of optical signals and electrical signals.
Applications
Switch, Router, Server NIC, etc.
Classify

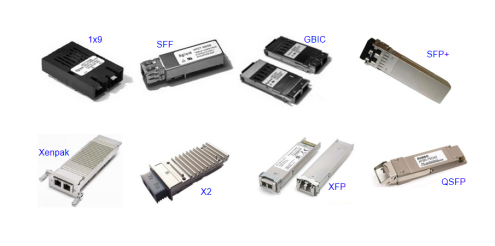

1.Parkage
1x9,SFF,GBIC,SFP,SFP+,300Pin,X2,Xenpak,XFP,QSFP,CFP,PON
Common Optical Module Package
Type | Rate | Wavelength | Interface |
SFP | 125M-4G | 850nm/1310nm/1550nm | LC or SC |
SFP+ | 10G | ||
XFP | 10G | ||
QSFP+ | 4*10G/4*25G |
2. Wavelength
Deplux:850nm,1310nm,1550nm
BIDI : 1270nm/1330nm,1310nm/1550nm,1310nm/1490nm,1490nm/1550nm
CWDM : 1270nm,1330nm,1350nm……1610nm
DWDM : 1528.77nm,1529.55nm,1530.33nm……1563.86nm
3.Data Rate
155M,622M,1.25G,10G,16G,25G,40G,100G
4.Transmission Distance
SDH Series:2km,15km,40km,80km......
Ethernet Series:300m,500m,10km,20km,40km,80km,120km
5.Interface
LC,SC,ST,FC,MTRJ,RJ45
How to choose?
First, confirm where the fiber optical transceiver you need is used, such as connect switches, routers etc. And confirm the rate and transmission distance of fiber optical transceiver. Usually the transmission distance of fiber optical transceiver is 10km-120km ,It can also be customized you need.
Secondly, confirm the interface of fiber optical transceiver you need.Common fiber optical transceiver interfaces are LC or SC.And your requirements for the operating temperature of fiber optical transceiver.The operating temperature of fiber optical transceiver is divided into commercial temperature 0°C-70°C and industrial temperature -40°C-85°C. The temperature of the conventional type of fiber optical transceiver is 0°C-70°C.
Finally, when you have determined the specifications and quantity of fiber optical transceiver ,you can find suppliers to purchase.Actually,the fiber optical transceiver can be customized interface,transmission distance operating temperature,according to you need.
If you don't know the specific specifications of fiber optical transceiver, you can contact us,Email:[email protected] . Sopto provides high quality products and professional services for every customers.Sopto at any time to provide you with best procurement plan.
Tags : fiber optical transceiver, sfp,BIDI sfp
