The SFP+ transceivers are high performance, cost effective modules supporting data rate of 16Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions
Features
● Supports up to 16Gbps bit rates
● Hot-pluggable SFP+ footprint
● DWDM EML laser and PIN photodiode, Up to 40km for SMF transmission
● Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
● Compatible with RoHS
● Single +3.3V power supply
● Real Time Digital Diagnostic Monitoring
● Operating case temperature: Standard: 0 to +70°C
Applications
● 4.25/8.5/16G Fibre channel
● Other Optical links
Order Information
Part Number | Product Description |

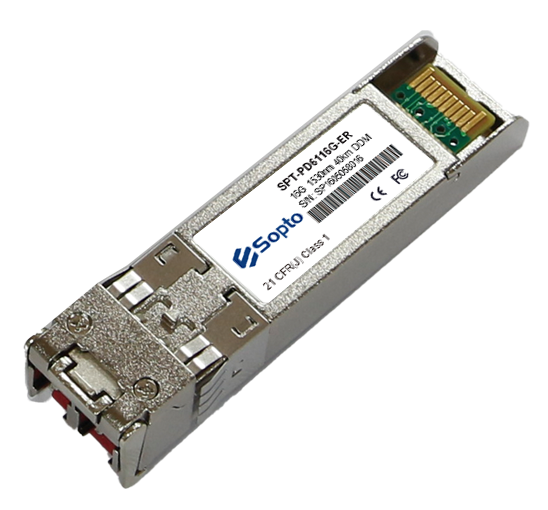

SPT-PDXX16G-ER | Transceiver SFP+ DWDM 100GHz C61 1528.77nm 16G 40km LC Interface with DDM Commercial Temperature |
Tags:SFP+, optical module, optical transceivers, DWDM SFP+, 16G SFP+
