Optical Distribution Frame (ODF) is integrated components in any fiber management system to handle termination and cross-connection of cables. Pre-terminated ODF with cables are pre-installed with connectors and cable for quick and easy installation. Units with pre-terminated cables offer advantages such as faster installation, resulting in shorter time to revenue as well as guaranteed quality and performance. We offer optical distribution frame units in different size, such as 2U 24 ports, 3U 48ports, 4U 72ports, 6U 96 ports set. An Optical distribution frame also is a fiber optic management unit which is used to organize the fiber optic cable connections. They are mainly used as the interface between optical transmission network, optical transmission equipment and between optical cables in access network of optical fiber subscribers.
Optical Distribution Frames (ODF) are an integral part of fiber management systems for the termination, branching, and storage of indoor processing cables. It is mainly used as an interface between an optical transmission network, an optical transmission device, and an optical fiber cable in an optical fiber user access network. Adapters and pigtails are pre-installed on the ODF unit module of the fiber distribution frame for quick installation, which reduces construction time and ensures quality and performance.

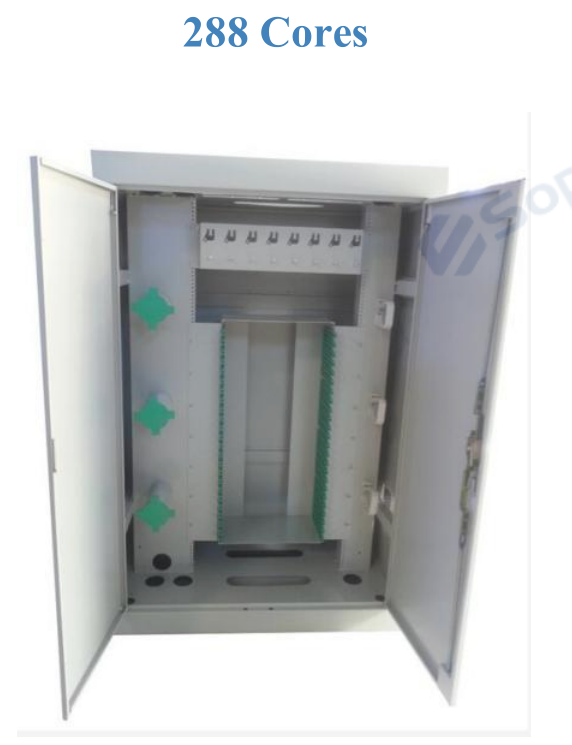

Features of 288 cores ODF
● Fully enclosed standard frame with a maximum capacity of 288 cores.
● Double-sided front door, which is highly convenient to manage the fiber cable.
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance
● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable entrances are protected by cable-protected ribbon
● Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying, solid structure and pleasing appearance.

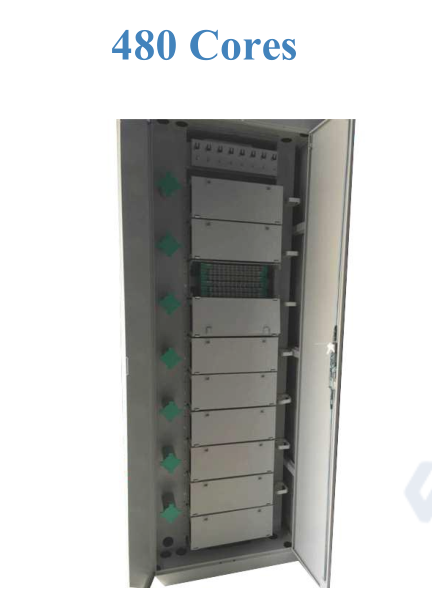

Features of 480 cores ODF
● Fully enclosed standard frame with a maximum capacity of 480 cores.
● This Optical Fiber Main Distribution Frame ‘s door type is double-sided front door., which is highly convenient to manage the fiber cable.
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance, as well as plays a major role in optical fiber protection.
● SC or FC 12 cores adapter is installed on the drawer-type 12 cores integrated tray,and the tray is installed in the ODF Unit Box
● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable (fiber) entrances are protected by cable-protected ribbon and contain enough space for fiber passing.
● It is made of top quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.

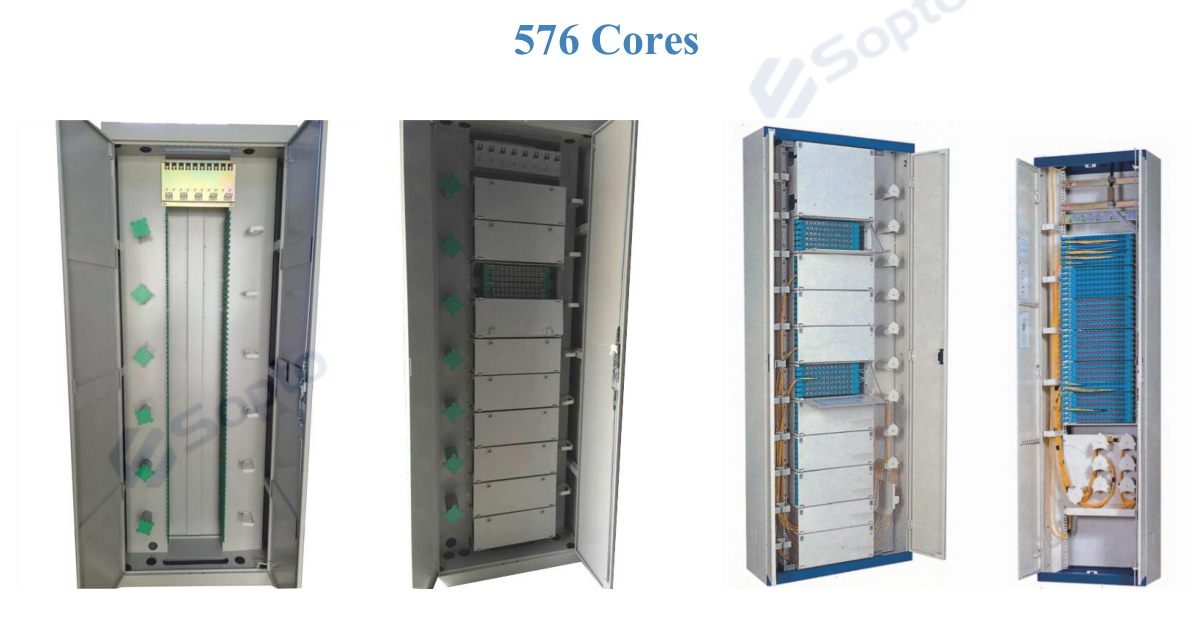

Features of 576 cores ODF
● Fully enclosed standard frame with a maximum capacity of 576 cores.
● Double-sided front door., which is highly convenient to manage the fiber cable.
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance
● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable entrances are protected by cable-protected ribbon
● Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying, Solid structure and pleasing appearance.

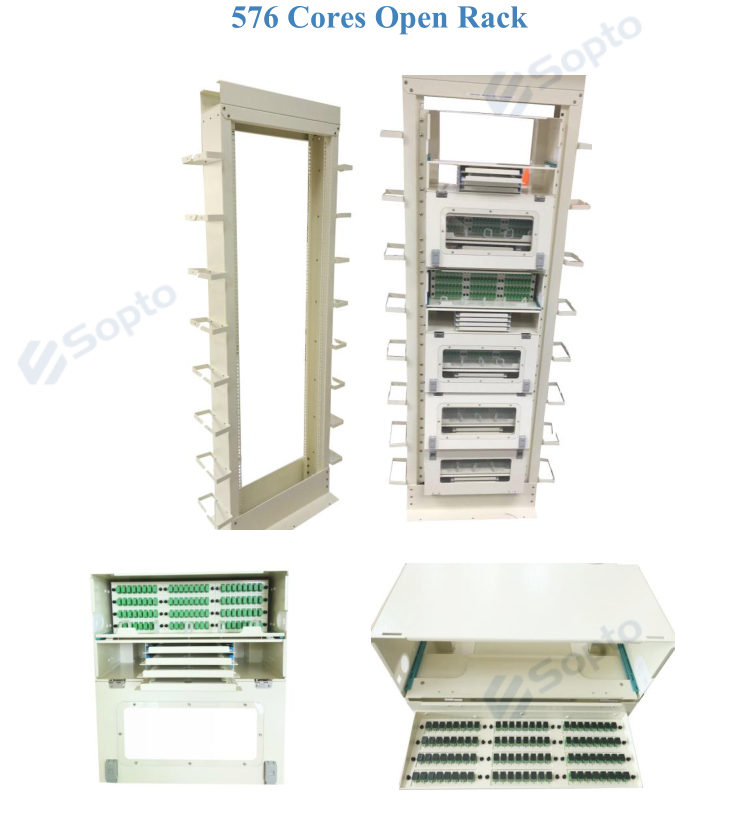

Features of 576 Cores Open Rack
● Standard 19-inch rack with a maximum capacity of 576 cores
● With 96-core pull-out wiring box, the splice fiber branching and storage, large capacity, convenient operation and maintenance
● Reliable cable introduction and fixed protection device, suitable for ribbon cable and non-belt cable operation
● There is a fiber channel, which is convenient for racking and racking. It is beautiful and neat.
● Made of high-quality cold rolled sheet SPCC, oxidized, electrostatically sprayed
Technical Parameters of 576 Cores Open Rack
● Nominal work wave-length: 850nm, 1310nm, 1550nm
● Operating temperature: -10℃-+45℃
● Storage temperature: -40℃ +70℃
● Relative humidity:≤85%(+30℃)
● Atmospheric pressure: 70~106 KPa
● Insertion loss: ≤0.3dB
● Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
● Isolation resistance:≥1000MΩ/500V(DC)
● Durability:＞1000 times
● Anti-voltage strength: ≥3000V(DC)/1min

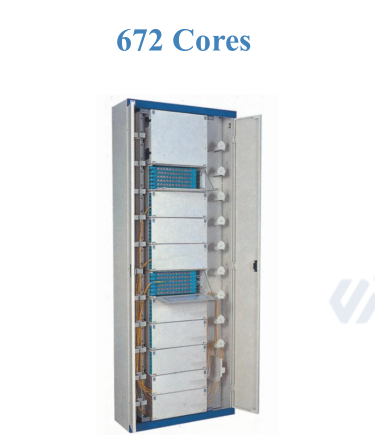

Features of 672 Cores ODF
● Fully enclosed standard frame with a maximum capacity of 672 cores（LC）.
● This Optical Fiber Main Distribution Frame ‘s door type is double-sided front door., which is highly convenient to manage the fiber cable.
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance, as well as plays a major role in optical fiber protection.
● LC 24 cores adapter is installed on the drawer-type 24cores integrated tray,and the tray is installed in the 96 cores(LC) ODF Unit Box
● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable (fiber) entrances are protected by cable-protected ribbon and contain enough space for fiber passing.
● It is made of top quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.

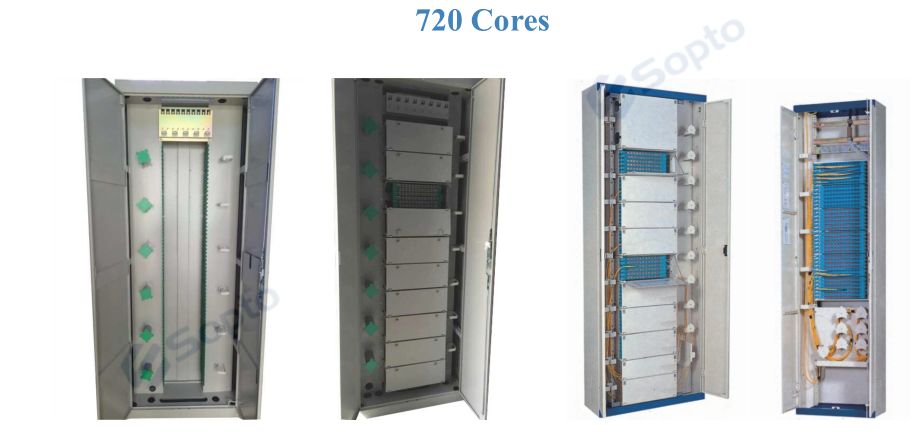

Features of 720 Cores ODF
● Fully enclosed standard frame with a maximum capacity of 720 cores.
● Double-sided front door., which is highly convenient to manage the fiber cable.
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance
● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable entrances are protected by cable-protected ribbon.
● Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying. Solid structure and pleasing appearance.
High Density Fibre Distribution Frame is a high-capacity, high-density fiber distribution frame, suitable for the composition and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.

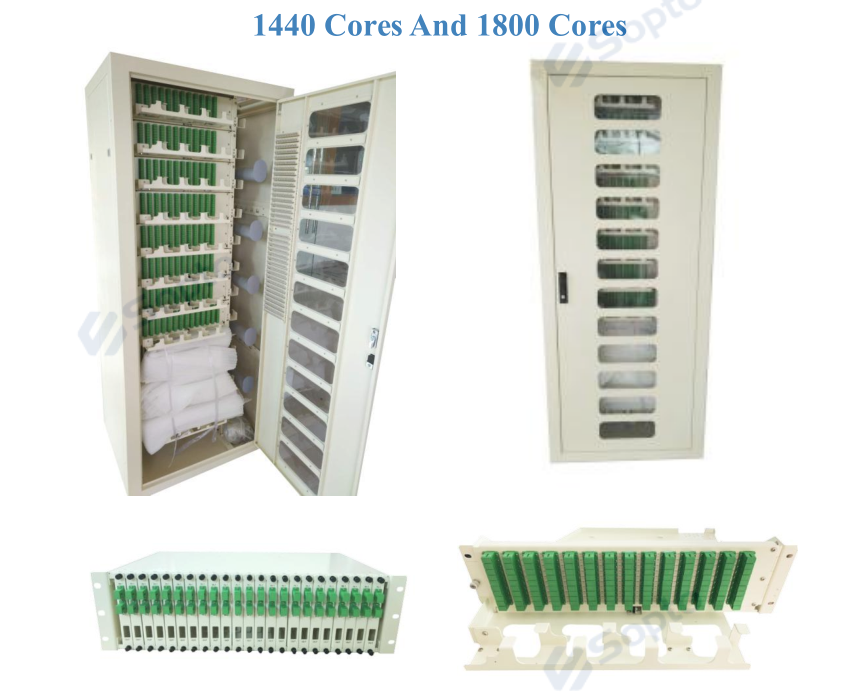

Features of 1440 Cores and 1800 Cores ODF
● High strength and corrosion resistance
● 1.5mm thick high-quality cold-rolled steel frame, electrostatic spraying on the entire surface, beautiful appearance
● With the use of rotating wiring box and splitter rack, the capacity can be customized according to the needs.
● The cable inlet is equipped with a sealing rubber ring to protect the fiber optic cable and also protect against dust and rat.
● Reliable cable introduction, fixed protection device, fiber optic grounding protection device
● Suitable for ribbon cable and non-belt cable operation
● Front door pocket type visible window for label placement; fiber optic connector berth for multi-function service
● Open the door before and after, the left and right side doors can be removed to facilitate the connection and wiring between the cabinets.
● There is a fiber channel, which has enough fiber storage space to ensure that the bending curvature of the fiber is greater than 30mm.

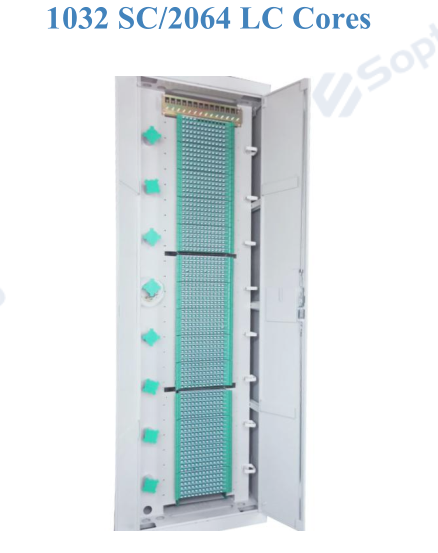

Features of 1032 SC/2064 LC Cores ODF
● Fully enclosed standard frame with a maximum capacity of 1032 SC/2064 LC Cores
● Front double door with key lock, left and right sides and back are movable snaps, can be quickly disassembled, convenient for management, installation and maintenance
● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance
● Composed of 3 independent frames, in-line splice tray type, can be quickly inserted and removed
● The optical cable can be inserted from the top and the bottom of the rack through separate entrances. The cable entry end is provided with an optical cable fixing device, which can be adjusted up and down according to the position of the cable entry end
● Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying, solid structure and pleasing appearance.
The 19-inch open rack is an integral part of the optical communication system, used for the termination, branching and storage of indoor processing cables. It is mainly used as the interface between the optical transmission network, optical transmission equipment and optical cable in the optical fiber user access network. Can install 19-inch standard passive equipment and active equipment, such as OLT, switch, server, ODF distribution frame, etc. Fully open, easy to maintain.

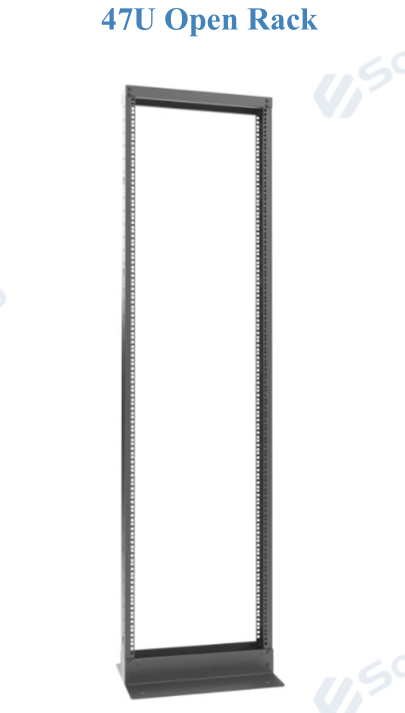

Features of 47U Open Rack
● All use high-quality first-grade cold-rolled steel plates to ensure no deformation, tight structure.
● Material thickness: column 1.2mm; Maximum depth of the device: 121.92 cm.
● Cabinet column: The inside of the cabinet is equipped with two columns at the front and rear. The columns are made of square holes, also known as square holes. The square holes are punched with square holes. Every three holes are a U. According to the punched U number to determine the height of the cabinet.
● The bottom of the cabinet: no casters and feet.
● All products are stable, durable, economical, with normal appearance and structure, without deformation or loose fasteners.
Sopto can supply a full range of products in the FTTH solution, including various types of ODF, if you need it, or if you need to customize it, please feel free to contact us. Email : [email protected]
