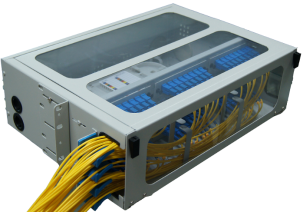

This series fiber terminal box is designed for standard 19 inch rack-mount. Suitable for ST, SC, LC, MTRJ, FC adapters. We use changeable adapter plate to fix the adapters. Suitable for different kinds of equipment which is designed according to 19 inch cabinet.
Features of Fiber Terminal Box
● Standard 19 inch structure, could be installed on several of standard racks.
● Drawer type and Fixed rack mounted available
● Compact design for space saving
● Suitable for ribbon and single fiber
● Front and top cover use transparent organic glass for good visibility and observation
● Top cover is removable, easy for operation.
Technical Data
Item | Details |
Product Name | 19 Inch Rack Terminal Box with transparent cover |
Mounting | 19inch standard rack-mounted |
Color of Frame | Black/grey color or customized color |
Material | Box: Aluminum material; Front cover: aluminum with transparent organic glass window in the middle |
Output Adaptor | FC、SC、ST、LC 、MTRJ |
Capacity | Up to 96 cores |
Model for details
MODEL | Size(mm | Adaptor plate No.(pcs)t | Description |
Fixed Rack Type | |||
SPDF-I24SCT-RME | 480*310*44 | 3pcs;8 port/plate | Terminal Box Indoor 19inch rack 24 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Fixed type E |
SPDF-I48SCT-RME | 480*310*88 | 6pcs;8 port/plate | Terminal Box Indoor 19inch rack 48 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Fixed type E |
SPDF-I72SCT-RME | 480*310*132 | 9pcs;8 port/plate | Terminal Box Indoor 19inch rack 72 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Fixed type E |
SPDF-I96SCT-RME | 480*310*177 | 12pcs;8 port/plate | Terminal Box Indoor 19inch rack 96ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Fixed type E |
Drawer Rack Type | |||
SPDF-I24SCT-DME | 480*310*44 | 3pcs;8 port/plate | Terminal Box Indoor 19inch rack 24 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Drawer type E |
SPDF-I48SCT-DME | 480*310*88 | 6pcs;8 port/plate | Terminal Box Indoor 19inch rack 48 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Drawer type E |
SPDF-I72SCT-DME | 480*310*132 | 9pcs;8 port/plate | Terminal Box Indoor 19inch rack 72 ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Drawer type E |
SPDF-I96SCT-DME | 480*310*177 | 12pcs;8 port/plate | Terminal Box Indoor 19inch rack 96ports Simplex SC/Duplex LC type without adaptors , pigtails Metal Drawer type E |
Sopto can offers a variety of terminal boxes with price and quality from 1core to 96 cores. The terminal box is used to separate and store the optical fibers in the fiber cable. By using one of the panels, the fiber can be spliced onto a single fiber on other cables, allowing the cables to be crossed and connected in a variety of ways. In addition, the panel creates a safe environment in which exposed fibers can be used.
