This box integrates fusion splicing, splitting, and wiring, and can realize direct fusion and divergence of optical cables. It is suitable for terminal access at the user end, and wiring connection with optical communication equipment. Through the adapter of the box, the optical jumper is used to lead out the optical fiber. Signal, realize the function of optical wiring; it is also suitable for the protective connection of optical cables and wiring pigtails; the optical cables can also be fused and drawn out with the household optical cables after splitting and wiring, so as to realize the straight-through function of optical cables and meet the requirements of traditional transmission network project demand.
Features of 32 cores splitter distributions box
● The box is made of high-quality plastic, with good impact resistance and anti-aging function
● The box has independent fusion splicing flip tray and optical split flip tray, which makes the line clearer and not easy to cross
● The entrance of the optical cable meets the connection and splitting requirements of the docking optical cable and the splicing optical cable, and the pigtail exit is sealed with a single rubber plug
● Each splice tray is equipped with a PLC splitter slot, which can meet the installation of 1 piece of 1:16 or 1 piece of 1:8
● The cover has a suspended fixing device, which will not affect the construction due to falling during installation and maintenance
● The box body adopts anti-theft screws and is equipped with a special key
● The product can be mounted on the wall or on a pole to meet the different installation requirements of the project
Application of 32 cores splitter distributions box
● Telecommunication subscriber loop
● Fiber to the home(FTTH)
● LAN/WAN
Technical Data
Model No. : SPDF-O32SCS-PPPC/PPHPC
Mounting way : Wall-mounting / pole mountable
Work Temperature : -20 °C ~+60°C
Size of Box(W*D*L in mm) : 177*276*106
Cable Input Ports : 4
Cable Output Ports : 32
Applicable Adaptor Type : SC Duplex without ear
Applicable Adaptor Quantity : 16
Applicable Splitter Type : Steel Tube Type
Max Optical Splitting Rate : 2 pieces of 1:16
Max Splicing Cores : 72
Fiber Radius Curvature: ≥40mm
Extra Lose of Fiber Tray: ≤0.01dB
Lateral Pressure Resistance : ≥2000N / 10 cm
Compact Resistance : ≥20N.m
Protection Level : IP54
Accessories
Special Plastic Key :1 pc
Fixing Screw&Nut : 4 sets of M4x25
Hot Shrinkable Protective Tube : 2 pcs
Pole Mounting Hoop (155mm-178mm) : Alternative Accessory
DimInstallation process

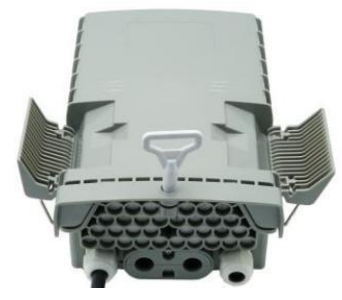

● Use the special key to rotate counterclockwise, loosen the locking screw, and open the locks on both sides to open the box.Fiber to the home(FTTH)

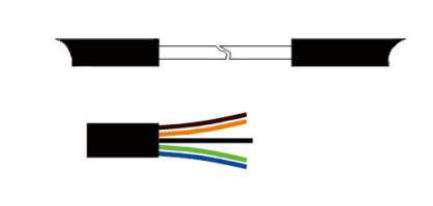

● Optical cable stripping: Strip the butt-jointed optical cable and the spliced optical cable according to the specifications, please refer to the figure below

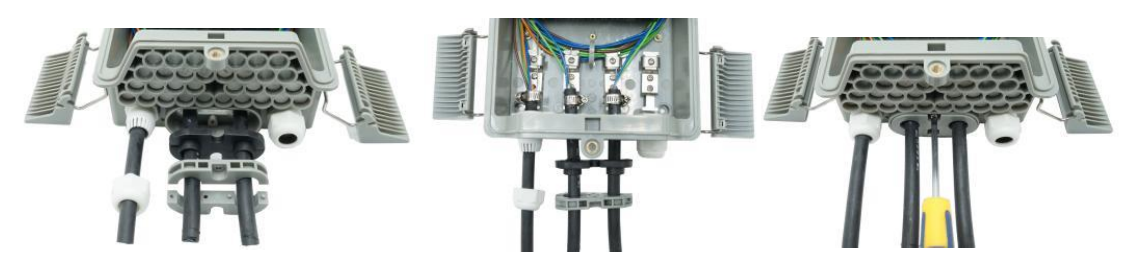

● Optical cable fixing and sealing:
a) The docking optical cable enters and exits the box from the left and right waterproof joints,unscrew the nut, insert the optical cable, and then tighten the nut;
b) Pull the optical cable into the box from the middle, and use a screwdriver to compress it.Remove the block and the sealing rubber, put the sealing rubber and the pressing block into the optical cable in turn, put them back into the elliptical notch, and lock and seal with screws;
c) Press the screw to complete the sealing and fixing of the optical cable.

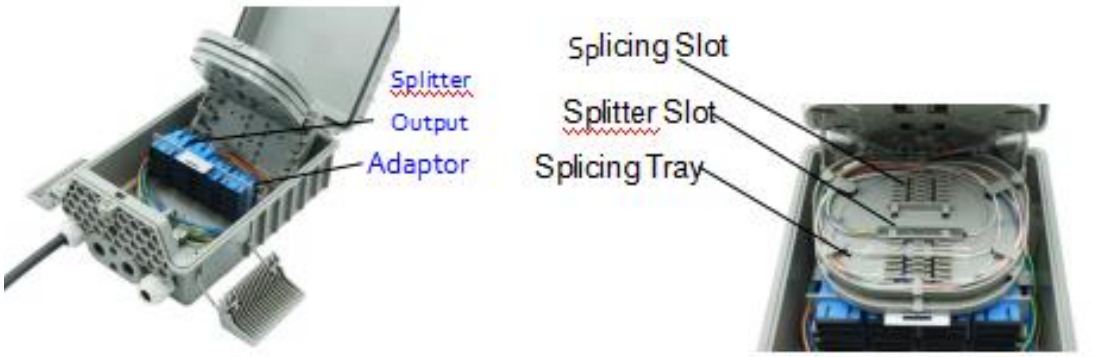

● Fiber routing: After the incoming cable is reserved and coiled at the bottom of the box, the bare fiber is introduced into the peach-shaped splice tray, and the end is led to the splice slot, and the PLC splitter is fixed on the splice tray, and the output end of the splitter is connected. Insert the adapter, and the inlet end is spliced with the incoming cable at the fusion splicing slot.

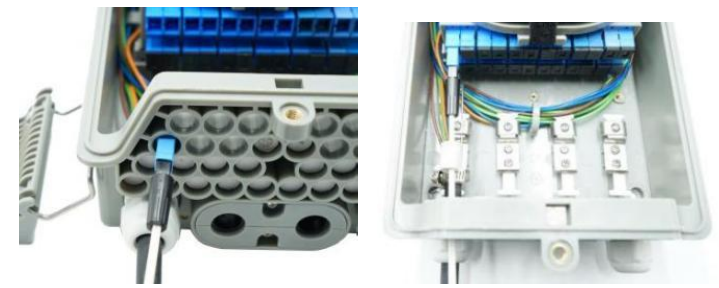

Cable Output: When outgoing cable, first remove the rubber sealing plug at the outlet, the end of the outgoing cable pigtail goes directly through the round hole, insert the end into the adapter, then wrap the rubber plug around the optical cable and plug it back into the round hole to complete the sealing.

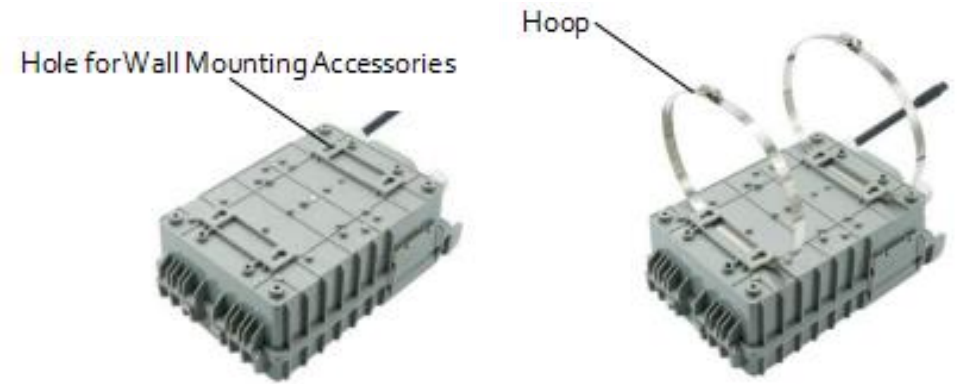

Box installation:
a） Hanging on the wall: hang on the fixed plane through the 4 gourd holes at the bottom of the box, the installation holes are 80mmX153mm;
b） Holding the pole: Through the two square grooves at the bottom of the box, use the holding hoop to connect and fix the rod-shaped object.
Note: If you need more customized services, please contact us. learn more other type of splitter distribution box ,
